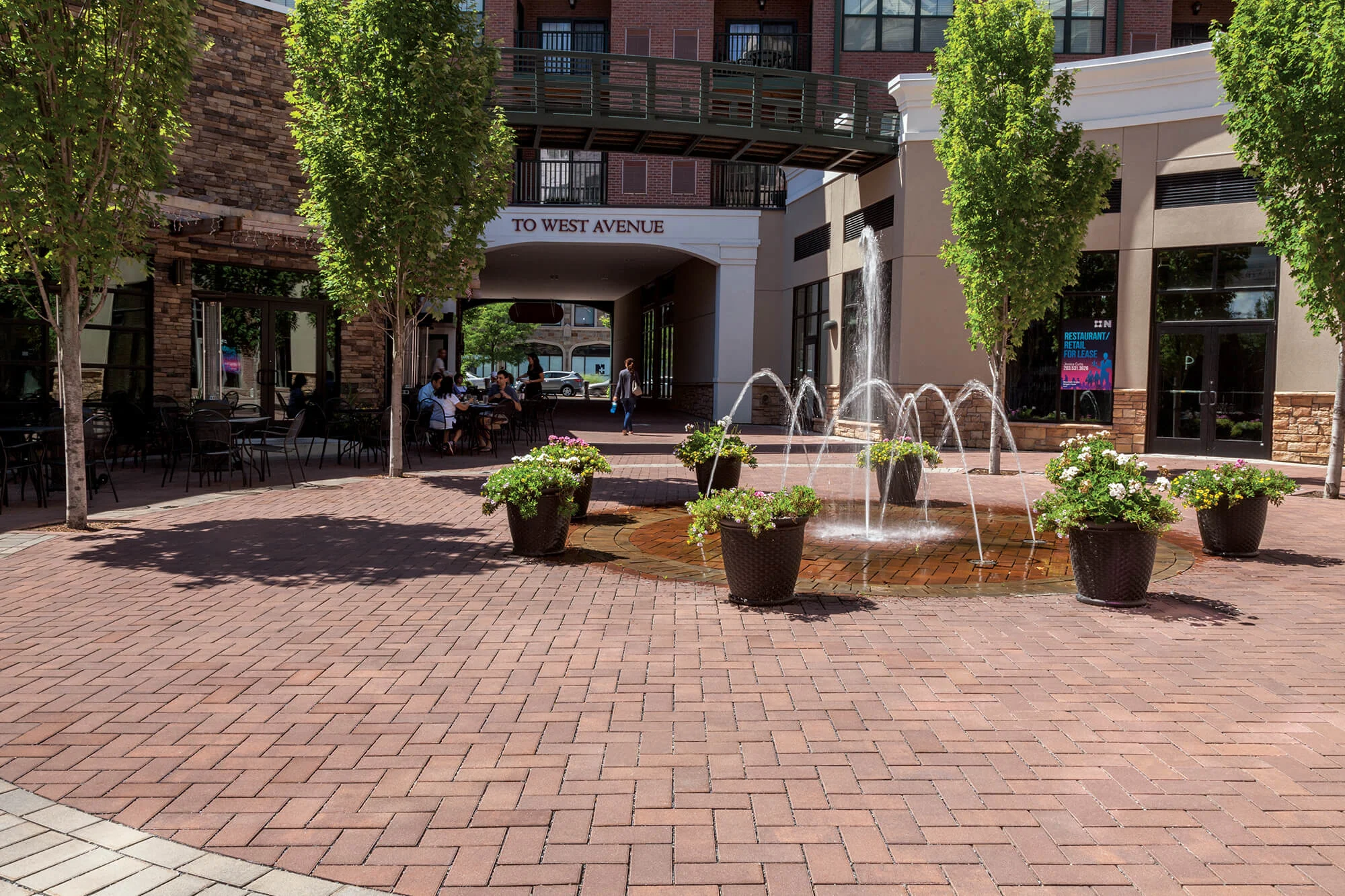

Permeable Pavers

Permeable pavers provide a sustainable and effective solution for stormwater management. Designed with wider joints that are filled with open-graded aggregate, they work in tandem with an open-graded base to promote rapid rainwater infiltration without compromising structural integrity or design aesthetics. These systems reduce local flooding, improve water quality, and help mitigate the thermal impact on nearby waterways. In addition to their environmental benefits, our permeable pavers demonstrate exceptional durability, require minimal maintenance, and are suitable for a wide range of applications.

QUICK DOWNLOADS

Permeable Pavers Size Chart (PDF)

GET SAMPLES REQUEST PRODUCT INFORMATION SAVE TO
PROJECTS

Facebook

Twitter

Facebook

Twitter

Facebook

Twitter

Facebook

Twitter

Facebook

Twitter

PRODUCTS

IMAGES

RESOURCES

STANDARDS & LEED

At Unilock, we’re introducing a new way to explore our pavers and slabs — one that starts with product finish. Our surfaces now take center stage. If you can’t find a product you’re familiar with, don’t worry, it’s still available.

Explore products below to see the available shape and color options.

UMBRIANO®

Umbriano features a sleek, granite-like finish with a richly mottled surface that adds natural depth and character.

TECHNOLOGIES

EnduraColor™ Face-mix EasyClean™ Factory Sealer

View All Umbriano Offerings

AVAILABLE SIZES

Permeable – 6 x 24″
(150 x 600mm)
H: 2 ¾”
(70mm)

Joint Space: 10mm
Void %: 6.23%

Permeable – 4 x 16″
(100 x 400mm)
H: 3 ⅞”
(100mm)

Joint Space: 7mm
Void %: 10.12%

Permeable – 12 x 12″
(300 x 300mm)
H: 3 ⅞”
(100mm)

Joint Space: 7mm
Void %: 4.84%

Permeable – 6 x 12″
(152.4 x 304.8mm)
H: 3 ⅛”
(80mm)

Joint Space: 10mm
Void %: 10.65%

Permeable – 4 x 12″
(100 x 300mm)
H: 3 ⅛”
(80mm)

Joint Space: 7mm
Void %: 8.6%

Permeable – 3 x 12″
(75 x 300mm)
H: 3 ⅞”
(100mm)

Joint Space: 7mm
Void %: 10.12%

Treo™ – 4 ⅝ x 9 ¼”
(116.5 x 233mm)
H: 2 ⅜”
(60mm)

Joint Space: 7mm
Void %: 7.8%

Eco-Priora™ – 10 x 10″
(240 x 240mm)
H: 3 ⅛”
(80mm)

Joint Space: 7mm
Void %: 4.6%

Eco-Priora™ – 5 x 10″
(120 x 240mm)
H: 3 ⅛”
(80mm)

Joint Space: 7mm
Void %: 6.8%

Eco-Priora™ – 5 x 5″
(120 x 120mm)
H: 3 ⅛”
(80mm)

Joint Space: 6mm
Void %: 12.8%

Eco-Optiloc™
(250 x 250mm)
H: 3 ⅛”
(80mm)

Joint Space: 12mm
Void %: 7.3%

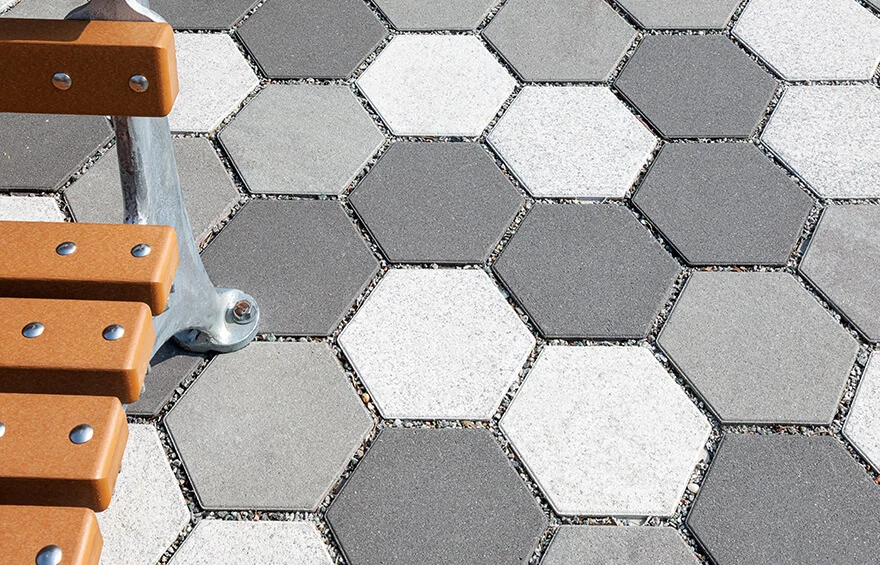

Permeable Hex – 8″
(205 x 205mm)
H: 2 ⅜ or 3 ⅛”
(60 or 80mm)

Joint Space: 10mm
Void %: 4.2%

Nordic Cobble®
(89.9 x 94mm)
H: 2 ⅜”
(60mm)

Treo™ Platform
9 ¼ x 4 ⅝, 9 ¼ x 9 ¼, 9 ¼ x 13 ¾”
(233 x 116, 233 x 233, 233 x 349)
H: 2 ⅜ or 3 ⅛”
(60 or 80mm)

Joint Space: 7mm
Void %: 5.5%

Thornbury™ Platform
8 ¼ x 6 ⅞, 8 ¼ x 13 ¾, 13 ¾ x 16 ½”
(210 x 173, 210 x 350, 350 x 420mm)
H: 2 ¾”
(70mm)

Joint Space: 11-18mm
Void %: 4.4%

Tribeca Cobble™ Platform
5 x 6 ⅞, 5 x 9, 5 x 12″
(130 x 175, 130 x 230, 130 x 305mm)
H: 2 ¾”
(70mm)

Joint Space: 9-15mm
Void %: 5.6%

Eco-Line® Platform
3 ⁵⁄₁₆ x 9 ⅜” | 3 ⁵⁄₁₆ x 11″ | 3 ⁵⁄₁₆ x 12 ½” | 3 ⁵⁄₁₆ x 14″ | 4 ½ x 9 ⅜” | 4 ½ x 11″ | 4 ½ x 12 ½” | 4 ½ x 14″
(84 x 237 |84 x 277 | 84 x 317 | 84 x 357 | 114 x 237 | 114 x 277 | 114 x 317 | 114 x 357mm)
H: 3 ⅞”
(100mm)

Joint Space: 6.25mm
Void %: 5.8%

AVAILABLE COLORS

Grenada White
SRI 45 | SR 0.52

Polar Sky

Polar Storm

Arctic Tundra

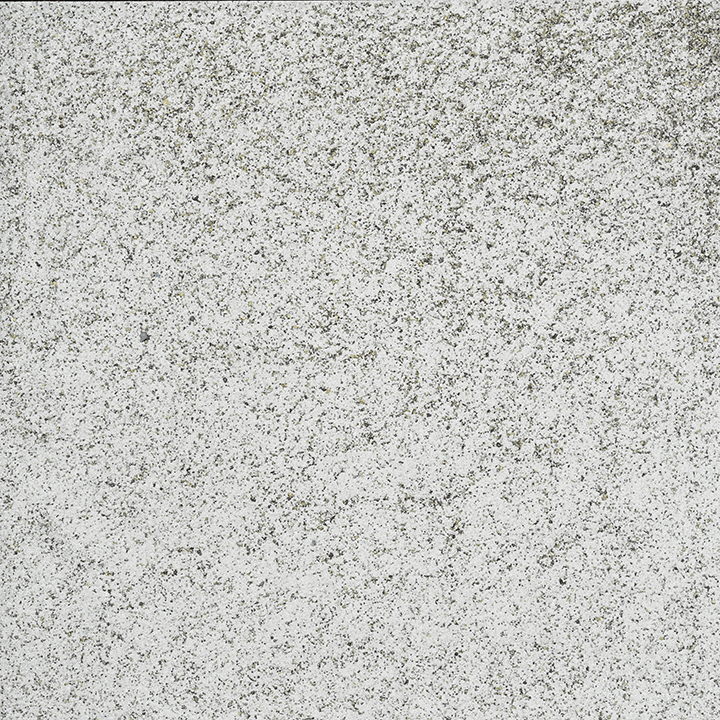

Arctic Dune

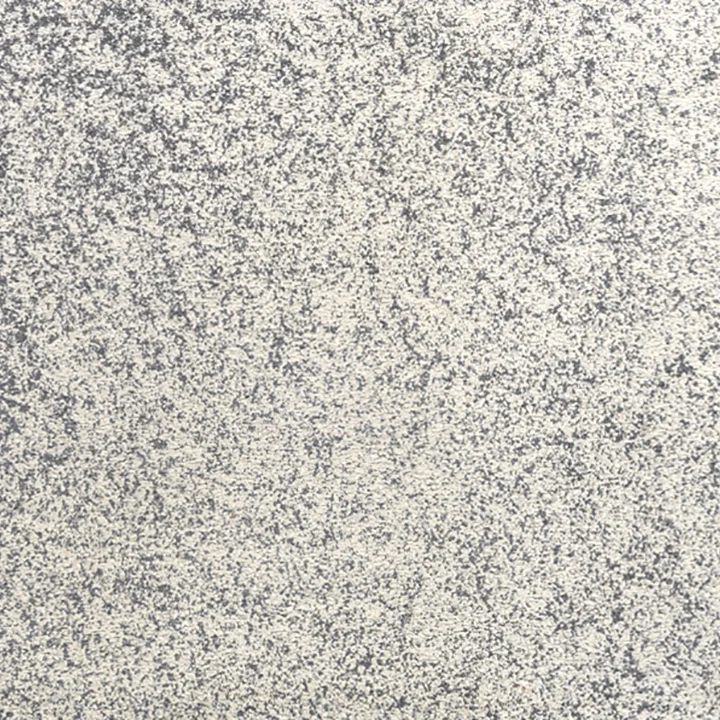

Winter Marvel
SRI 35 | SR 0.38

Summer Wheat
SRI 48 | SR 0.42

Coastal Shore

Emerald Beach

Sandy Sea Glass

Harvest Brown

Autumn Sunset
SRI 32 | SR 0.30

Summer Rose
SRI 28 | SR 0.27

French Grey
SRI 17 | SR 0.18

Starry Night

Urban Nightfall

Midnight Sky
SRI 15 | SR 0.17

SERIES™

Series pavers feature an exposed aggregate surface composed of natural granite and quartz, offering a bold, distinctive finish and a speckled color palette.

TECHNOLOGIES

EnduraColor™ Face-mix

View All Series Offerings

AVAILABLE SIZES

Permeable – 6 x 24″
(150 x 600mm)
H: 2 ¾”
(70mm)

Joint Space: 10mm
Void %: 6.23%

Permeable – 4 x 16″
(100 x 400mm)
H: 3 ⅞”
(100mm)

Joint Space: 7mm
Void %: 10.12%

Permeable – 12 x 12″
(300 x 300mm)
H: 3 ⅞”
(100mm)

Joint Space: 7mm
Void %: 4.84%

Permeable – 6 x 12″
(152.4 x 304.8mm)
H: 3 ⅛”
(80mm)

Joint Space: 10mm
Void %: 10.65%

Permeable – 4 x 12″
(100 x 300mm)
H: 3 ⅛”
(80mm)

Joint Space: 7mm
Void %: 8.6%

Permeable – 3 x 12″
(75 x 300mm)
H: 3 ⅞”
(100mm)

Joint Space: 7mm
Void %: 10.12%

Treo™ – 4 ⅝ x 9 ¼”
(116.5 x 233mm)
H: 2 ⅜”
(60mm)

Joint Space: 7mm
Void %: 7.8%

Eco-Priora™ – 10 x 10″
(240 x 240mm)
H: 3 ⅛”
(80mm)

Joint Space: 7mm
Void %: 4.6%

Eco-Priora™ – 5 x 10″
(120 x 240mm)
H: 3 ⅛”
(80mm)

Joint Space: 7mm
Void %: 6.8%

Eco-Priora™ – 5 x 5″
(120 x 120mm)
H: 3 ⅛”
(80mm)

Joint Space: 6mm
Void %: 12.8%

Eco-Optiloc™
(250 x 250mm)
H: 3 ⅛”
(80mm)

Joint Space: 12mm
Void %: 7.3%

Permeable Hex – 8″
(205 x 205mm)
H: 2 ⅜ or 3 ⅛”
(60 or 80mm)

Joint Space: 10mm
Void %: 4.2%

Nordic Cobble®
(89.9 x 94mm)
H: 2 ⅜”
(60mm)

Treo™ Platform
9 ¼ x 4 ⅝, 9 ¼ x 9 ¼, 9 ¼ x 13 ¾”
(233 x 116, 233 x 233, 233 x 349)
H: 2 ⅜ or 3 ⅛”
(60 or 80mm)

Joint Space: 7mm
Void %: 5.5%

Thornbury™ Platform
8 ¼ x 6 ⅞, 8 ¼ x 13 ¾, 13 ¾ x 16 ½”
(210 x 173, 210 x 350, 350 x 420mm)
H: 2 ¾”
(70mm)

Joint Space: 11-18mm
Void %: 4.4%

Tribeca Cobble™ Platform
5 x 6 ⅞, 5 x 9, 5 x 12″
(130 x 175, 130 x 230, 130 x 305mm)
H: 2 ¾”
(70mm)

Joint Space: 9-15mm
Void %: 5.6%

Joint Space: 6.25mm
Void %: 5.8%

AVAILABLE COLORS

Golden Tan
SRI 45 | SR 0.40

SS0121

SS0020

Mocha Brown

SS0341

Glacier

Peppered Granite
SRI 42 | SR 0.38

SS0454

SS0412
SRI 64 | SR 0.56

SS0032 W2
SRI 29 | SR 0.28

Mountain Mist
SRI 29 | SR 0.28

Mineral Ice Grey

SS0447

Ice Grey
SRI 38 | SR 0.35

SS0451

Nordic Star
SRI 10 | SR 0.14

Crystalline Basalt

Platinum Grey
SRI 29 | SR 0.28

Cobalt Grey

Black Granite

PREMIER

Premier pavers feature a smooth, refined surface that delivers a clean, contemporary aesthetic.

TECHNOLOGIES

EnduraColor™ Face-mix

OPTIONAL TECHNOLOGIES

EasyClean™ Factory Sealer

Roof deck pavers with a smooth finish in a medium grey color.

View All Premier Offerings

AVAILABLE SIZES

Permeable – 6 x 24″
(150 x 600mm)
H: 2 ¾”
(70mm)

Joint Space: 10mm
Void %: 6.23%

Permeable – 4 x 16″
(100 x 400mm)
H: 3 ⅞”
(100mm)

Joint Space: 7mm
Void %: 10.12%

Permeable – 6 x 12″
(152.4 x 304.8mm)
H: 3 ⅛”
(80mm)

Joint Space: 10mm
Void %: 10.65%

Permeable – 12 x 12″
(300 x 300mm)
H: 3 ⅞”
(100mm)

Joint Space: 7mm
Void %: 4.84%

Permeable – 4 x 12″
(100 x 300mm)
H: 3 ⅛”
(80mm)

Joint Space: 7mm
Void %: 8.6%

Permeable – 3 x 12″
(75 x 300mm)
H: 3 ⅞”
(100mm)

Joint Space: 7mm
Void %: 10.12%

Treo™ – 4 ⅝ x 9 ¼”
(116.5 x 233mm)
H: 2 ⅜”
(60mm)

Joint Space: 7mm
Void %: 7.8%

Eco-Priora™ – 10 x 10″
(240 x 240mm)
H: 3 ⅛”
(80mm)

Joint Space: 7mm
Void %: 4.6%

Eco-Priora™ – 5 x 10″
(120 x 240mm)
H: 3 ⅛”
(80mm)

Joint Space: 7mm
Void %: 6.8%

Eco-Priora™ – 5 x 5″
(120 x 120mm)
H: 3 ⅛”
(80mm)

Joint Space: 6mm
Void %: 12.8%

Eco-Optiloc™
(250 x 250mm)
H: 3 ⅛”
(80mm)

Joint Space: 12mm
Void %: 7.3%

DuraFlow™
(250 x 250mm)
H: 3 ⅛”
(80mm)

Joint Space: 12mm
Void %: 8%

Permeable Hex – 8″
(205 x 205mm)
H: 2 ⅜ or 3 ⅛”
(60 or 80mm)

Joint Space: 10mm
Void %: 4.2%

Nordic Cobble®
(89.9 x 94mm)
H: 2 ⅜”
(60mm)

Treo™ Platform
9 ¼ x 4 ⅝, 9 ¼ x 9 ¼, 9 ¼ x 13 ¾”
(233 x 116, 233 x 233, 233 x 349)
H: 2 ⅜ or 3 ⅛”
(60 or 80mm)

Joint Space: 7mm
Void %: 5.5%

Thornbury™ Platform
8 ¼ x 6 ⅞, 8 ¼ x 13 ¾, 13 ¾ x 16 ½”
(210 x 173, 210 x 350, 350 x 420mm)
H: 2 ¾”
(70mm)

Joint Space: 11-18mm
Void %: 4.4%

Tribeca Cobble™ Platform
5 x 6 ⅞, 5 x 9, 5 x 12″
(130 x 175, 130 x 230, 130 x 305mm)
H: 2 ¾”
(70mm)

Joint Space: 9-15mm
Void %: 5.6%

Joint Space: 6.25mm
Void %: 5.8%

AVAILABLE COLORS

Ivory

Indiana Buff
SRI 61| SR 0.52

SS0260

Sterling
SRI 46 | SR 0.41

Light Grey 0.75%

Almond Grove
SRI 25 | SR 0.25

Fossil
SRI 21 | SR 0.22

Bavarian
SRI 47 | SR 0.42

Sierra

River
SRI 40 | SR 0.36

Beechwood

Mocha

Sandy Beige
SRI 42 | SR 0.38

Chamois
SRI 46 | SR 0.41

SS0068

Tuscany
SRI 32 | SR 0.3

SS0334

Heritage Brown

Charleston

Autumn Red

Rustic Red

Natural
SRI 31 | SR 0.29

New York Blend

SS0286

SS0287

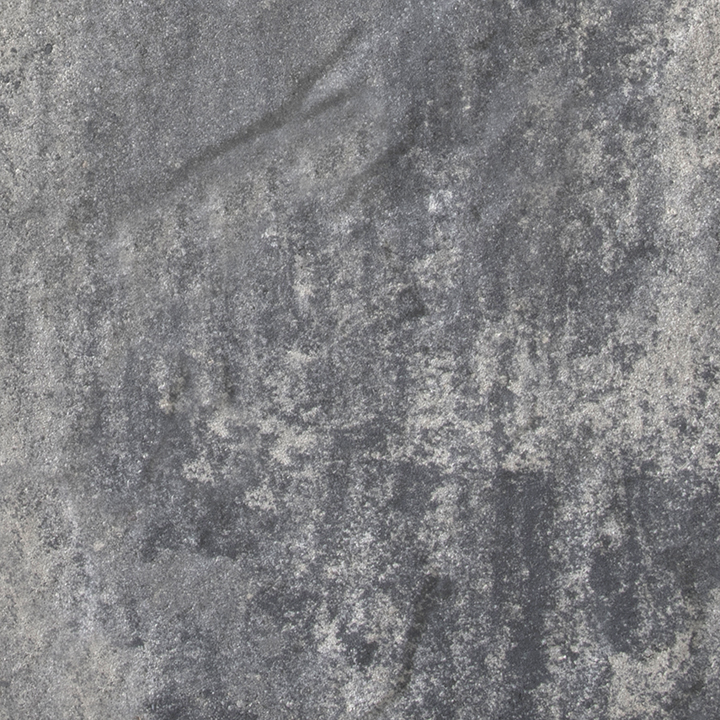

Granite Fusion
SRI 29 | SR 0.28

Opal
SRI 24 | SR 0.24

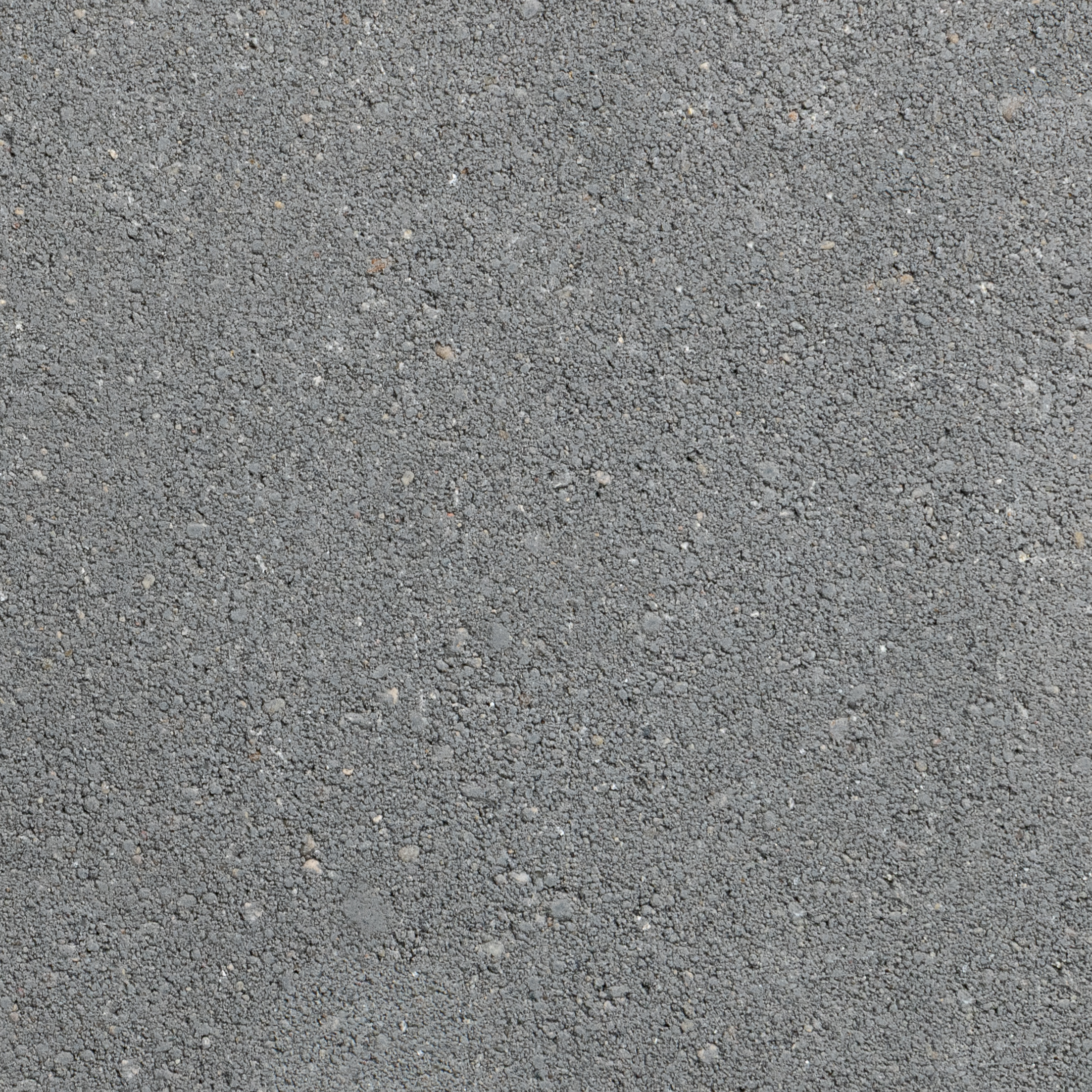

Silver Grey
SRI 37 | SR 0.34

Granite

Medium Grey 2%

SS0381

Steel Grey
SRI 5 | SR 0.09

Dark Charcoal

Black 8%

REVELA™

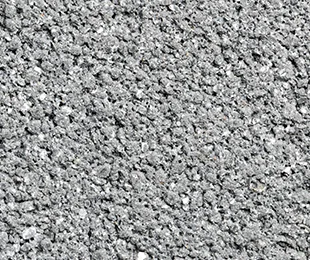

Revela pavers feature a textured surface created through precision shot-blasting, which exposes the natural aggregates for depth and visual interest.

TECHNOLOGIES

EnduraColor™ Face-mix

OPTIONAL TECHNOLOGIES

EasyClean™ Factory Sealer EcoTerra™ Cement Free Face-mix

View All Revela Offerings

AVAILABLE SIZES

Permeable – 6 x 24″
(150 x 600mm)
H: 2 ¾”
(70mm)

Joint Space: 10mm
Void %: 6.23%

Permeable – 4 x 16″
(100 x 400mm)
H: 3 ⅞”
(100mm)

Joint Space: 7mm
Void %: 10.12%

Permeable – 12 x 12″
(300 x 300mm)
H: 3 ⅞”
(100mm)

Joint Space: 7mm
Void %: 4.84%

Permeable – 6 x 12″
(152.4 x 304.8mm)
H: 3 ⅛”
(80mm)

Joint Space: 10mm
Void %: 10.65%

Permeable – 4 x 12″
(100 x 300mm)
H: 3 ⅛”
(80mm)

Joint Space: 7mm
Void %: 8.6%

Permeable EcoTerra® – 4 x 12″
(100 x 300mm)
H: 3 ⅛”
(80mm)

Joint Space: 7mm
Void %: 8.6%

Permeable – 3 x 12″
(75 x 300mm)
H: 3 ⅞”
(100mm)

Joint Space: 7mm
Void %: 10.12%

Treo™ – 4 ⅝ x 9 ¼”
(116.5 x 233mm)
H: 2 ⅜”
(60mm)

Joint Space: 7mm
Void %: 7.8%

Eco-Priora™ – 10 x 10″
(240 x 240mm)
H: 3 ⅛”
(80mm)

Joint Space: 7mm
Void %: 4.6%

Eco-Priora™ – 5 x 10″
(120 x 240mm)
H: 3 ⅛”
(80mm)

Joint Space: 7mm
Void %: 6.8%

Eco-Priora™ – 5 x 5″
(120 x 120mm)
H: 3 ⅛”
(80mm)

Joint Space: 6mm
Void %: 12.8%

Eco-Optiloc™
(250 x 250mm)
H: 3 ⅛”
(80mm)

Joint Space: 12mm
Void %: 7.3%

Permeable Hex – 8″
(205 x 205mm)
H: 2 ⅜ or 3 ⅛”
(60 or 80mm)

Joint Space: 10mm
Void %: 4.2%

Treo™ Platform
9 ¼ x 4 ⅝, 9 ¼ x 9 ¼, 9 ¼ x 13 ¾”
(233 x 116, 233 x 233, 233 x 349)
H: 2 ⅜ or 3 ⅛”
(60 or 80mm)

Joint Space: 7mm
Void %: 5.5%

Thornbury™ Platform
8 ¼ x 6 ⅞, 8 ¼ x 13 ¾, 13 ¾ x 16 ½”
(210 x 173, 210 x 350, 350 x 420mm)
H: 2 ¾”
(70mm)

Joint Space: 11-18mm
Void %: 4.4%

Joint Space: 6.25mm
Void %: 5.8%

Sizes listed on this page with this symbol have the ability to be manufactured with EcoTerra™ Technology.

AVAILABLE COLORS

Frost
SRI 68 | SR 0.57

Sterling

Savannah

Sandy Beige

Chamois

Metallic Grey
SRI 18 | SR 0.19

Light Opal Blend

Silver Grey

Light Steel Grey Blend

Charcoal

Colors listed on this page with this symbol have the ability to be manufactured with EcoTerra™ Technology.

Il Campo®

The etched lines on the surface of Il Campo create a richly detailed and visually striking texture suitable for any application.

TECHNOLOGIES

EnduraColor™ Face-mix

OPTIONAL TECHNOLOGIES

EasyClean™ Factory Sealer

View All Il Campo Offerings

AVAILABLE SIZES

Permeable – 6 x 24″
(150 x 600mm)
H: 2 ¾”
(70mm)

Joint Space: 10mm
Void %: 6.23%

Permeable – 4 x 16″
(100 x 400mm)
H: 3 ⅞”
(100mm)

Joint Space: 7mm
Void %: 10.12%

Permeable – 12 x 12″
(300 x 300mm)
H: 3 ⅞”
(100mm)

Joint Space: 7mm
Void %: 4.84%

Permeable – 6 x 12″
(152.4 x 304.8mm)
H: 3 ⅛”
(80mm)

Joint Space: 10mm
Void %: 10.65%

Permeable – 4 x 12″
(100 x 300mm)
H: 3 ⅛”
(80mm)

Joint Space: 7mm
Void %: 8.6%

Permeable – 3 x 12″
(75 x 300mm)
H: 3 ⅞”
(100mm)

Joint Space: 7mm
Void %: 10.12%

Treo™ – 4 ⅝ x 9 ¼”
(116.5 x 233mm)
H: 2 ⅜”
(60mm)

Joint Space: 7mm
Void %: 7.8%

Eco-Priora™ – 10 x 10″
(240 x 240mm)
H: 3 ⅛”
(80mm)

Joint Space: 7mm
Void %: 4.6%

Eco-Priora™ – 5 x 10″
(120 x 240mm)
H: 3 ⅛”
(80mm)

Joint Space: 7mm
Void %: 6.8%

Eco-Priora™ – 5 x 5″
(120 x 120mm)
H: 3 ⅛”
(80mm)

Joint Space: 6mm
Void %: 12.8%

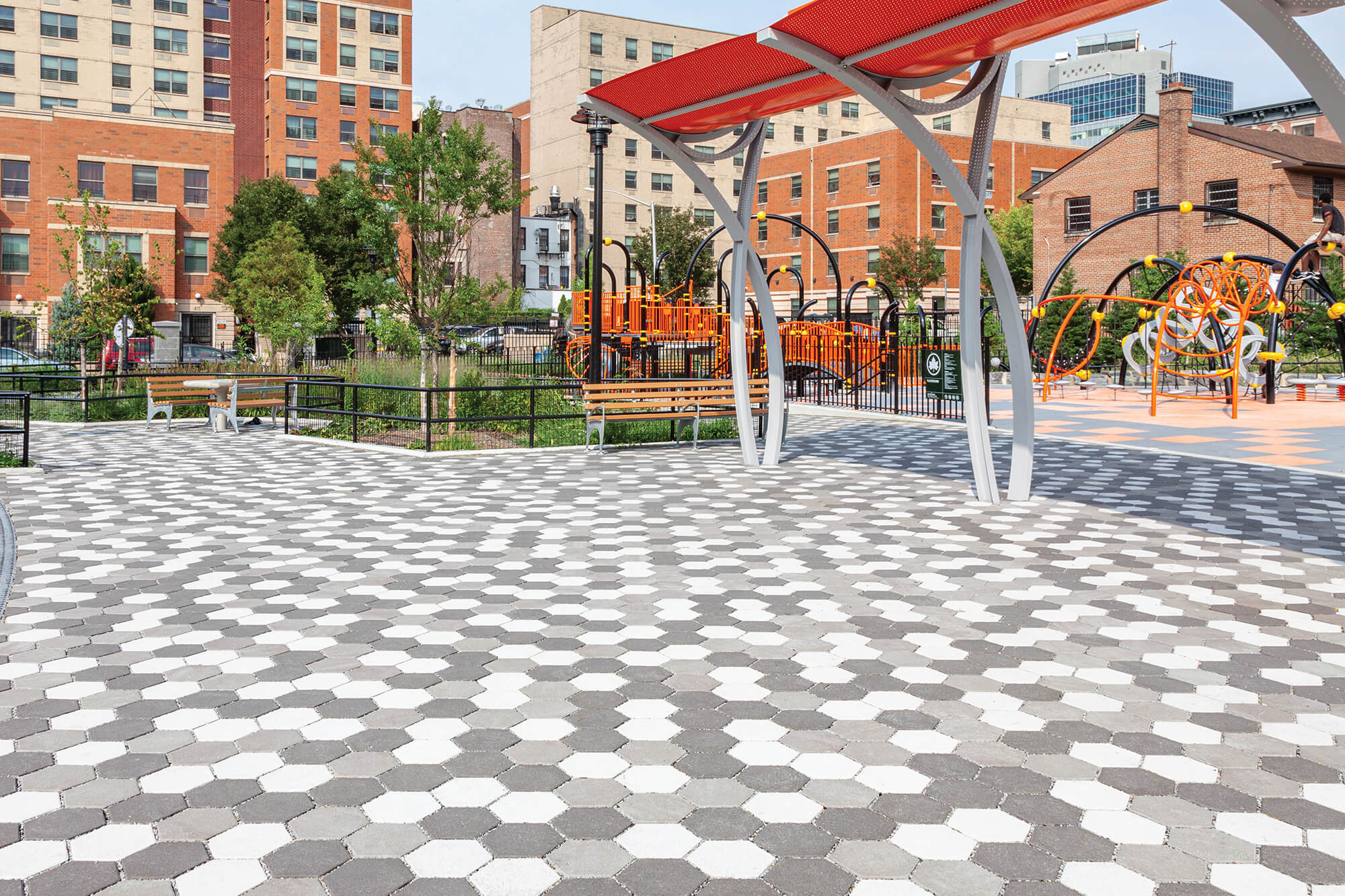

Permeable Hex – 8″
(205 x 205mm)
H: 2 ⅜ or 3 ⅛”
(60 or 80mm)

Joint Space: 10mm
Void %: 4.2%

Treo™ Platform
9 ¼ x 4 ⅝, 9 ¼ x 9 ¼, 9 ¼ x 13 ¾”
(233 x 116, 233 x 233, 233 x 349)
H: 2 ⅜ or 3 ⅛”
(60 or 80mm)

Joint Space: 7mm
Void %: 5.5%

Thornbury™ Platform
8 ¼ x 6 ⅞, 8 ¼ x 13 ¾, 13 ¾ x 16 ½”
(210 x 173, 210 x 350, 350 x 420mm)
H: 2 ¾”
(70mm)

Joint Space: 11-18mm
Void %: 4.4%

Joint Space: 6.25mm
Void %: 5.8%

AVAILABLE COLORS

Heritage Brown

Sandy Beige
SRI 19 | SR 0.2

Light Grey
SRI 22 | SR 0.22

Granite

SS0381

Dark Charcoal

SS0287

SS0286

FLAGSTONE

Inspired by natural cut flagstone, the blended colors and distinctive texture of these pavers deliver a relaxed, organic look and feel.

TECHNOLOGIES

EnduraColor™ Face-mix

OPTIONAL TECHNOLOGIES

EasyClean™ Factory Sealer

View All Flagstone Offerings

AVAILABLE SIZES

Thornbury™ Platform
8 ¼ x 6 ⅞, 8 ¼ x 13 ¾, 13 ¾ x 16 ½”
(210 x 173, 210 x 350, 350 x 420mm)
H: 2 ¾”
(70mm)

Joint Space: 11-18mm
Void %: 4.4%

AVAILABLE COLORS

Tuscany

Bavarian

Sierra

Walnut

River

Fossil

Granite Fusion

CLASSIC

Classic pavers are manufactured using a traditional blend of large and small aggregates, with color mixed throughout. The result is a traditional, smooth surface texture.

OPTIONAL TECHNOLOGIES

Classic Coat™ Factory Sealer

View All Classic Offerings

AVAILABLE SIZES

Eco-Priora™ – 10 x 10″
(240 x 240mm)
H: 3 ⅛”
(80mm)

Joint Space: 7mm
Void %: 4.6%

Eco-Priora™ – 5 x 10″
(120 x 240mm)
H: 3 ⅛”
(80mm)

Joint Space: 7mm
Void %: 6.8%

Eco-Priora™ – 5 x 5″
(120 x 120mm)
H: 3 ⅛”
(80mm)

Joint Space: 6mm
Void %: 12.8%

Eco-Optiloc™
(250 x 250mm)
H: 3 ⅛”
(80mm)

Joint Space: 12mm
Void %: 7.3%

DuraFlow™
(250 x 250mm)
H: 3 ⅛”
(80mm)

Joint Space: 12mm
Void %: 8%

Turfstone™
(400 x 600mm)
H: 3 ⅛”
(80mm)

Joint Space: 2mm
Void %: 40%

Dura-Mat™
(500 x 500mm)
H: 3 ⅞”
(100mm)

Joint Space: 6.25mm
Void %: 5.8%

AVAILABLE COLORS

Sterling

Beechwood

Sandy Beige

Chamois

River
SRI 34 | SR 0.32

Sierra

Autumn Red

Terra Cotta

Granite

Natural
SRI 32 | 0.3

Silver Grey

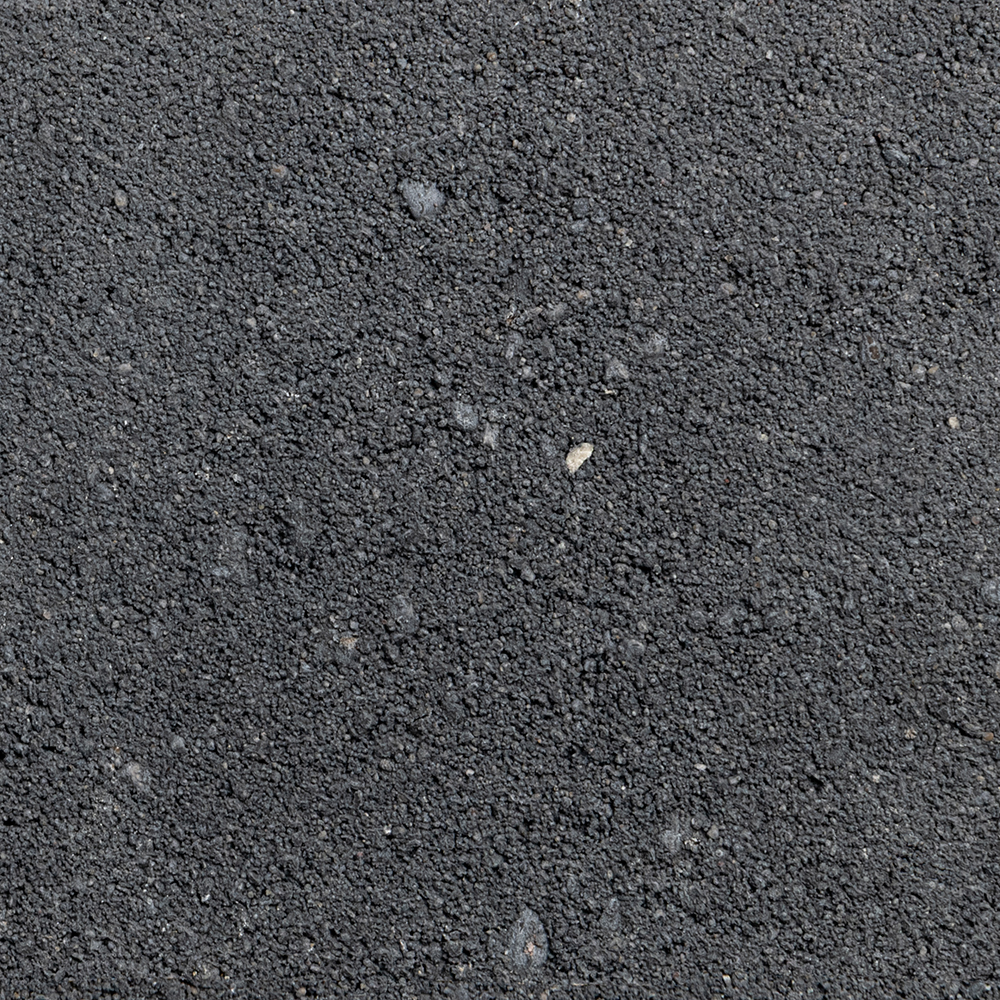

Charcoal
SRI 9 | SR 0.012

Town Hall®

Modeled after traditional North American clay street pavers, Town Hall features substantial proportions that make it an ideal choice for heavy-duty applications

TECHNOLOGIES

Elegance® EnduraColor™ Face-mix EasyClean™ Factory Sealer

View All Town Hall Offerings

AVAILABLE SIZES

Town Hall® – 4 x 10″
(100 x 250mm)
H: 2 ¾”
(70mm)

Joint Space: 9mm
Void %: 6.5%

AVAILABLE COLORS

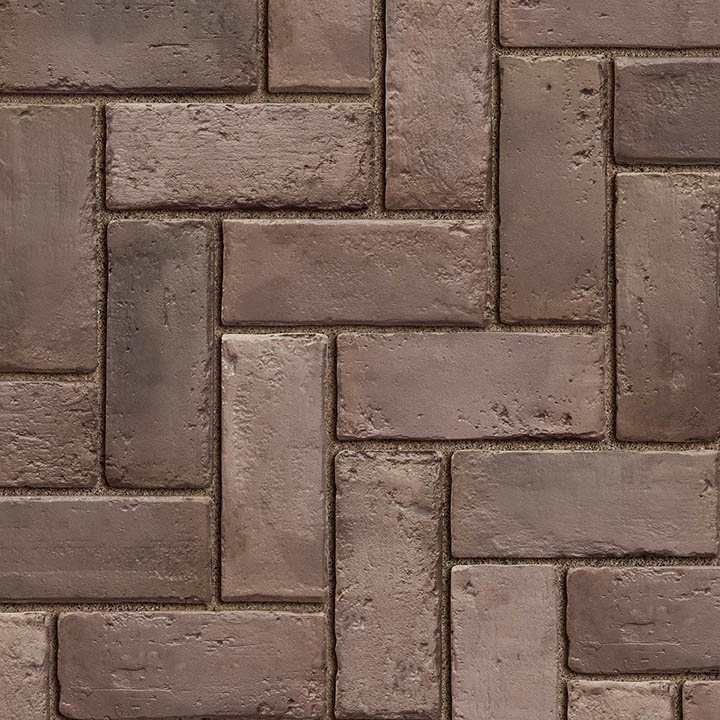

Burnt Clay
SRI 40 | SR 0.36

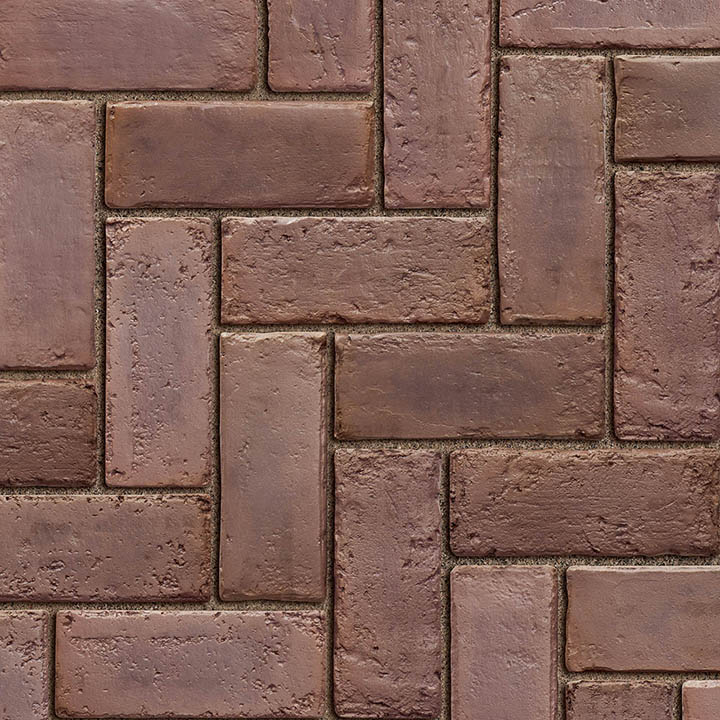

Burgundy Red
SRI 38 | SR 0.35

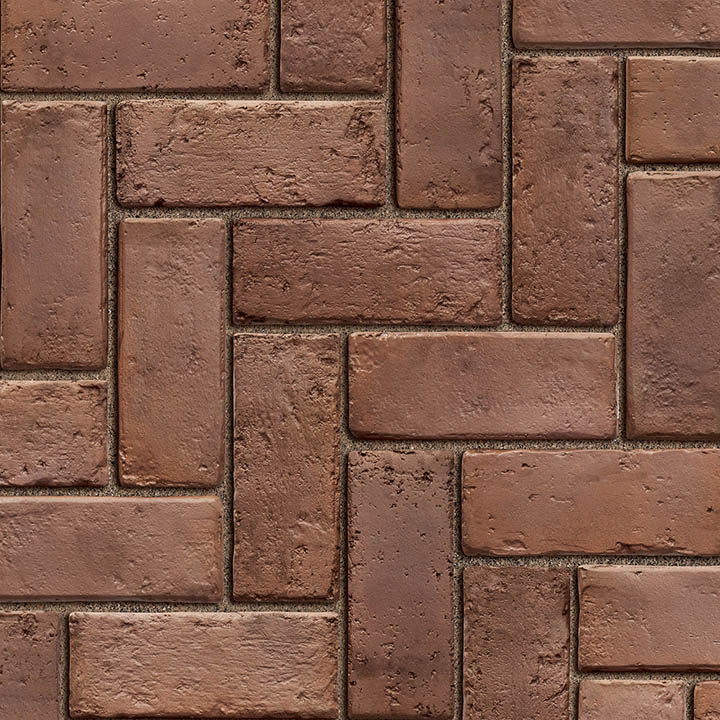

Old Oak
SRI 41 | SR 0.37

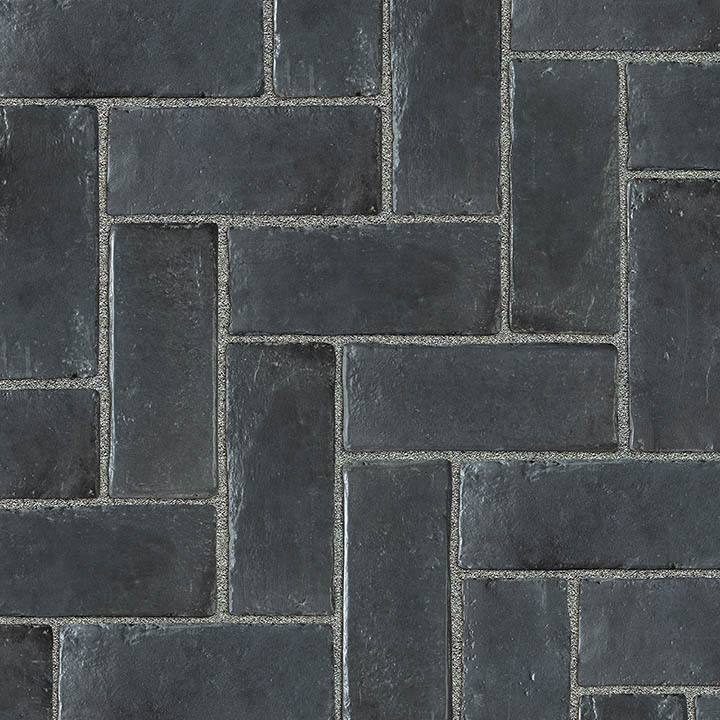

Basalt

Facebook

Twitter

Facebook

Twitter

Facebook

Twitter

PRODUCT DOCUMENTS

Unilock Permeable Pavers Size Chart

Facebook

Twitter

CROSS SECTIONS & DETAILS

Permeable Low Infiltration Heavy Duty

.PDF

.DWG

Facebook

Twitter

Permeable Low Infiltration Underdrain Med Duty

.PDF

.DWG

Facebook

Twitter

Permeable Low Infiltration Underdrain Heavy Duty

.PDF

.DWG

Facebook

Twitter

Permeable High-Infiltration Med Duty

.PDF

.DWG

Facebook

Twitter

Permeable Partial Infiltration Underdrain Heavy Duty

.PDF

.DWG

Facebook

Twitter

Permeable Partial Infiltration Underdrain Med Duty

.PDF

.DWG

Facebook

Twitter

Permeable Paver Bench Flush Base

.PDF

.DWG

Facebook

Twitter

Permeable Paver Bench Recessed Base

.PDF

.DWG

Facebook

Twitter

Permeable Paver Bench Recessed Mount to Slab

.PDF

.DWG

Facebook

Twitter

Permeable Paver Bench Surface Mount to Slab

.PDF

.DWG

Facebook

Twitter

Permeable Roadway Crown

.PDF

.DWG

Facebook

Twitter

Permeable Sidewalk Non Vehicular

.PDF

.DWG

Facebook

Twitter

Permeable to Non Permeable Transition

.PDF

.DWG

Facebook

Twitter

Permeable Hidden Curb Underdrain

.PDF

.DWG

Facebook

Twitter

Permeable Hidden Curb

.PDF

.DWG

Facebook

Twitter

Permeable Curb Underdrain

.PDF

.DWG

Facebook

Twitter

Permeable Cross Slope Base Ponding

.PDF

.DWG

Facebook

Twitter

Permeable Aluminum Edge Geotextile

.PDF

.DWG

Facebook

Twitter

Permeable Aggregate Restraint Spikes

.PDF

.DWG

Facebook

Twitter

VIEW ALL CROSS SECTIONS & DETAILS

SPECIFICATIONS

32-14-13 Pavers on Permeable Setting Bed

.PDF

.DOCX

Facebook

Twitter

32-14-13 Pavers on Permeable and Non-Permeable Combined Setting Bed

.PDF

.DOCX

Facebook

Twitter

MANUFACTURING STANDARDS

Unilock meets and exceeds ASTM C936 – Standard Specifications for Solid Concrete Interlocking Paving Units using test methods conforming to:

ASTM C1645 for Freeze Thaw Durability <225g/m2
C140 for Compressive Strength >8000 psi and Absorption <5%
C418 for Abrasion Resistance

LEED CREDIT OPPORTUNITIES

Unilock products can help contribute to earning points toward LEED certification for your projects. See LEED v5 for more specific project site details when calculating credits.

LEED BD+C: New Construction – LEED v5

Materials and Resources

Quantify and Assess Embodied Carbon
Reduce Embodied Carbon – Option 2. Environmental Product Declaration (EPD) Analysis

Sustainable Sites

Accessible Outdoor Space
Enhanced Resilient Site Design
Heat Island Reduction: Option 1. Nonroof and Roof
Rainwater Management – Option 1: Percentile of Rainfall Events

LEED O+M: Existing Buildings

Sustainable Sites

Heat Island Reduction: Option 1. Nonroof and Roof

Permeable Pavers (PICP): Sustainable Stormwater Management & Enhanced Design

What are Permeable Pavers and How Do They Manage Stormwater?

Permeable interlocking concrete pavements (PICP), commonly known as permeable pavers, are a proven Low Impact Development (LID) strategy.

Our permeable pavers are solid concrete paving units designed with wider joints than standard pavers, creating openings in the surface for water to filter through. The pavers work in combination with permeable joint material and an open-graded aggregate base. This aggregate structure creates essential voids that allow for the rapid filtration and temporary storage of stormwater before it slowly infiltrates into the subbase below.

By implementing this system, you can transform conventionally paved areas, which traditionally contribute to flooding and strain municipal sewer systems, into an active and functional element of your site’s water management plan

Why Choose Permeable Pavers for Your Project?

A permeable paver system delivers several key benefits, adding long-term value and positive environmental impact to your project site.

Effective Stormwater Management: Permeable pavers significantly reduce the volume of stormwater runoff and minimize the risk of erosion and flooding on your site and in the surrounding community.

Groundwater Recharge: The filtered water slowly soaks into the ground, helping to replenish the natural water table.

Improved Water Quality: The open-graded aggregate used in creating a PICP system naturally filters out pollutants and sediment, reducing the flow of contaminants into lakes, rivers, and wetlands.

Reduced Infrastructure Costs: In many regions, using permeable paving systems can reduce or eliminate the need for costly stormwater retention ponds or underground storage tanks, freeing up valuable site space for other uses.

30+ Years of Proven Permeable Paver Performance

Introduced to North America by Unilock more than 30 years ago, our legacy of innovation and commitment to quality ensures that our permeable paver collection offers the same durability and aesthetic freedom as our entire architectural paver and slab portfolio. This guarantees you never have to compromise your design vision for sustainability.

Unmatched Design Versatility: We offer a wide variety of shapes, sizes, colors, and finishes, making it simple to create a distinctive hardscape that harmonizes with surrounding architecture and landscape elements.
Engineered for Every Load: Our permeable collection includes options specifically designed for the demands of high-traffic areas with heavy loads, as well as options that are ideal for plazas, pathways, and other pedestrian applications.
