SkyView Low-Profile Waffles

SkyView Low-Profile Waffles are an alternative to standard SkyView Pedestals when minimal elevation is needed. Elevating surfaces from a ½ inch to 2½ inches, they provide a compact, durable solution ideal for tight spaces or areas with limited height clearance. Their distinctive waffle pattern enhances structural integrity when multiple units are stacked, by providing an interlocked connection that prevents lateral movement.

Facebook
Twitter
LinkedIn
Email
1
4
COMPONENTS
COMPONENTS
HEIGHT RANGES
RESOURCES
STANDARDS & LEED
zoom-svg
1/2” WAFFLE

L: 7", W: 7", H: 0.5"
L: 177.8, W: 177.8, H: 12.7mm

zoom-svg
1” WAFFLE

L: 7", W: 7", H: 1"
L: 177.8, W: 177.8, H: 25.4mm

SKYVIEW LOW-PROFILE WAFFLE ACCESSORIES
zoom-svg

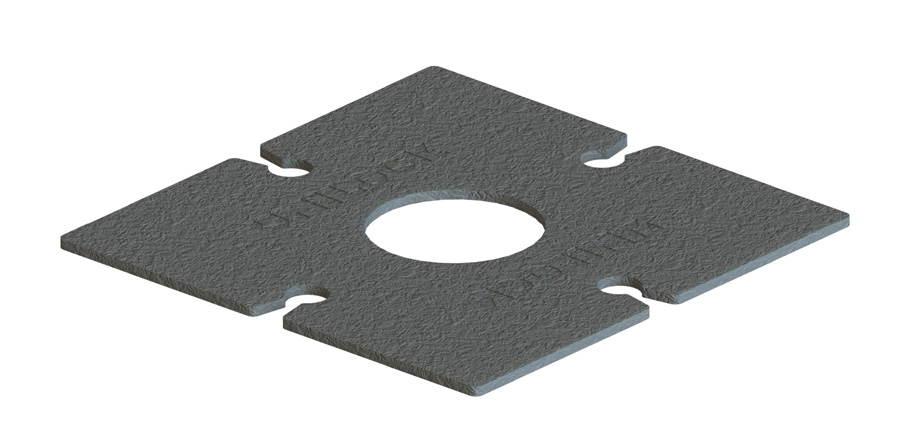

1/8" TOP PAD (OPTIONAL)

L: 6.5", W: 6.5", H: 0.13"
L: 165.1, W: 165.1, H: 3.3mm

zoom-svg
COMING SOON - 1/16" TOP PAD (OPTIONAL)

L: 6.5", W: 6.5", H: 0.06"
L: 165.1, W: 165.1, H: 1.6mm

With a stackable, modular design, SkyView Low-Profile Waffles accommodate the elevation of paving materials from a 1/2" to 2 1/2". Looking to achieve heights greater than 2 1/2”, view our SkyView Pedestal System.
zoom-svg

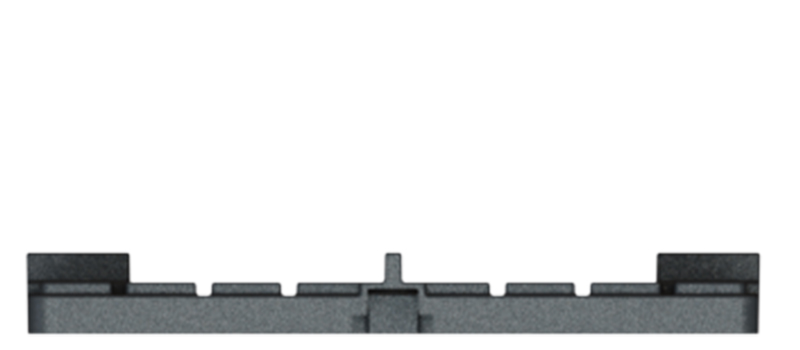

1/2” ASSEMBLY

Components:

1 - Top Pad (optional)
1 - 1/2" Waffle

zoom-svg

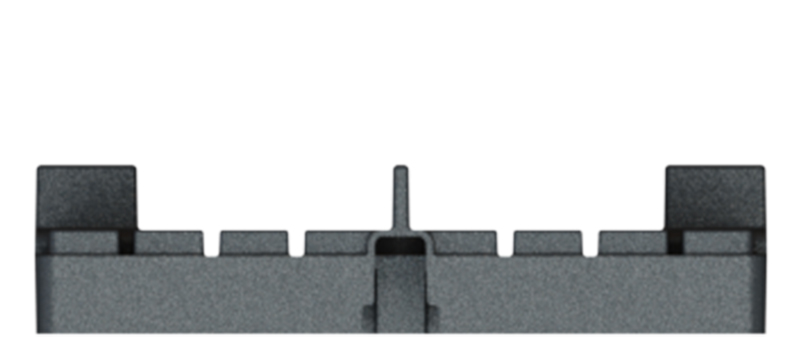

1” ASSEMBLY

Components:

1 - Top Pad (optional)
1 - 1” Waffle

zoom-svg

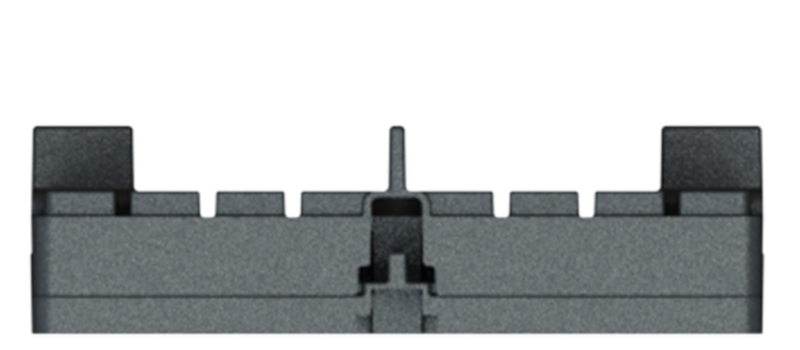

1 1/2” ASSEMBLY

Components:

1 - Top Pad (optional)
1 - 1” Waffle
1 - 1/2” Waffle

zoom-svg

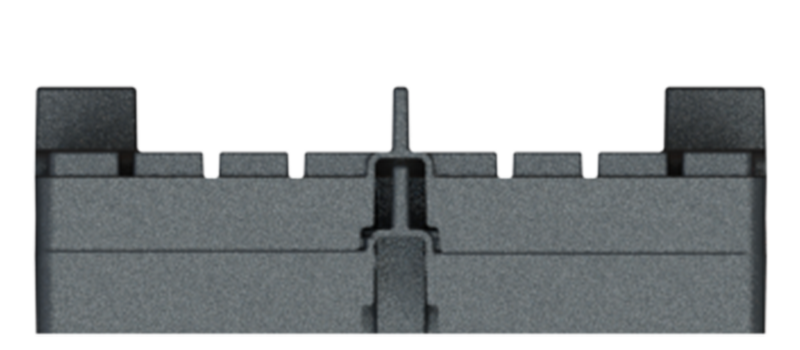

2” ASSEMBLY

Components:

1 - Top Pad (optional)
2 - 1” Waffles

zoom-svg

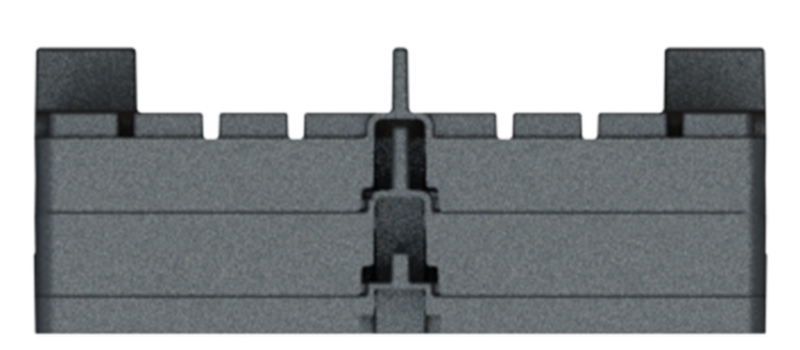

2 1/2” ASSEMBLY

Components:

1 - Top Pad (optional)
2 - 1” Waffles
1 - 1/2” Waffle

PRODUCT DOCUMENTS
SkyView Low-Profile Waffles Sell Sheet
Facebook
Twitter
LinkedIn
Email
SkyView™ Roof Deck System Brochure
Facebook
Twitter
LinkedIn
Email
SkyView™ Roof Deck System Installation Guide
Facebook
Twitter
LinkedIn
Email
Unilock 10-Year Limited Warranty for Commercial Roof Deck Products
Facebook
Twitter
LinkedIn
Email
CROSS SECTIONS & DETAILS
SkyView Low Profile Waffles on Roof Deck
Facebook
Twitter
LinkedIn
Email
SPECIFICATIONS
07-76-00 Concrete Paving Slabs and Pedestal System
Facebook
Twitter
LinkedIn
Email
LEED CREDIT OPPORTUNITIES

Unilock products can help contribute to earning points toward LEED certification for your projects. See LEED v5 for more specific project site details when calculating credits.



LEED BD+C: New Construction – LEED v5: Sustainable Sites – Accessible Outdoor Space

Stackable Supports for Rooftop Decking
Facebook
Twitter
LinkedIn
Email
1
4

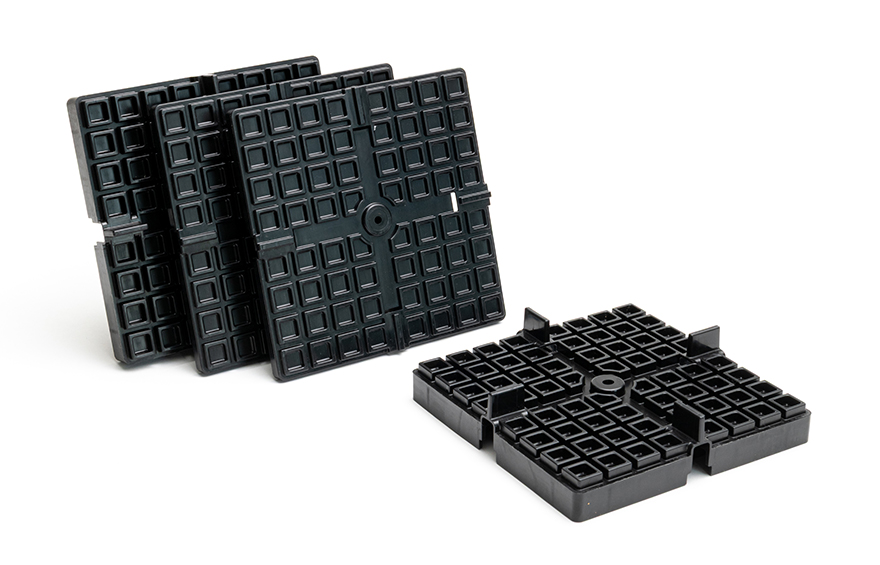

SkyView Low-Profile Waffles are specialized, stackable pedestals for rooftop deck installations where minimal elevation is needed. These structural supports get their name from their waffle-like design, which plays a critical, functional role. When stacking multiple waffles to achieve the desired elevation, this pattern creates a secure interlock that prevents shifting and lateral movement, ensuring long-lasting stability beneath surface materials in tight-clearance applications.



Benefits of SkyView Low-Profile Waffles

Stackable heights from a ½ inch to 2½ inches

Large footprint to provide stability

Consistent slab alignment with 3/16” spacer tabs

Resistant to water, mold, and freeze/thaw cycles

Manufactured from 90% recycled polypropylene

Made in USA

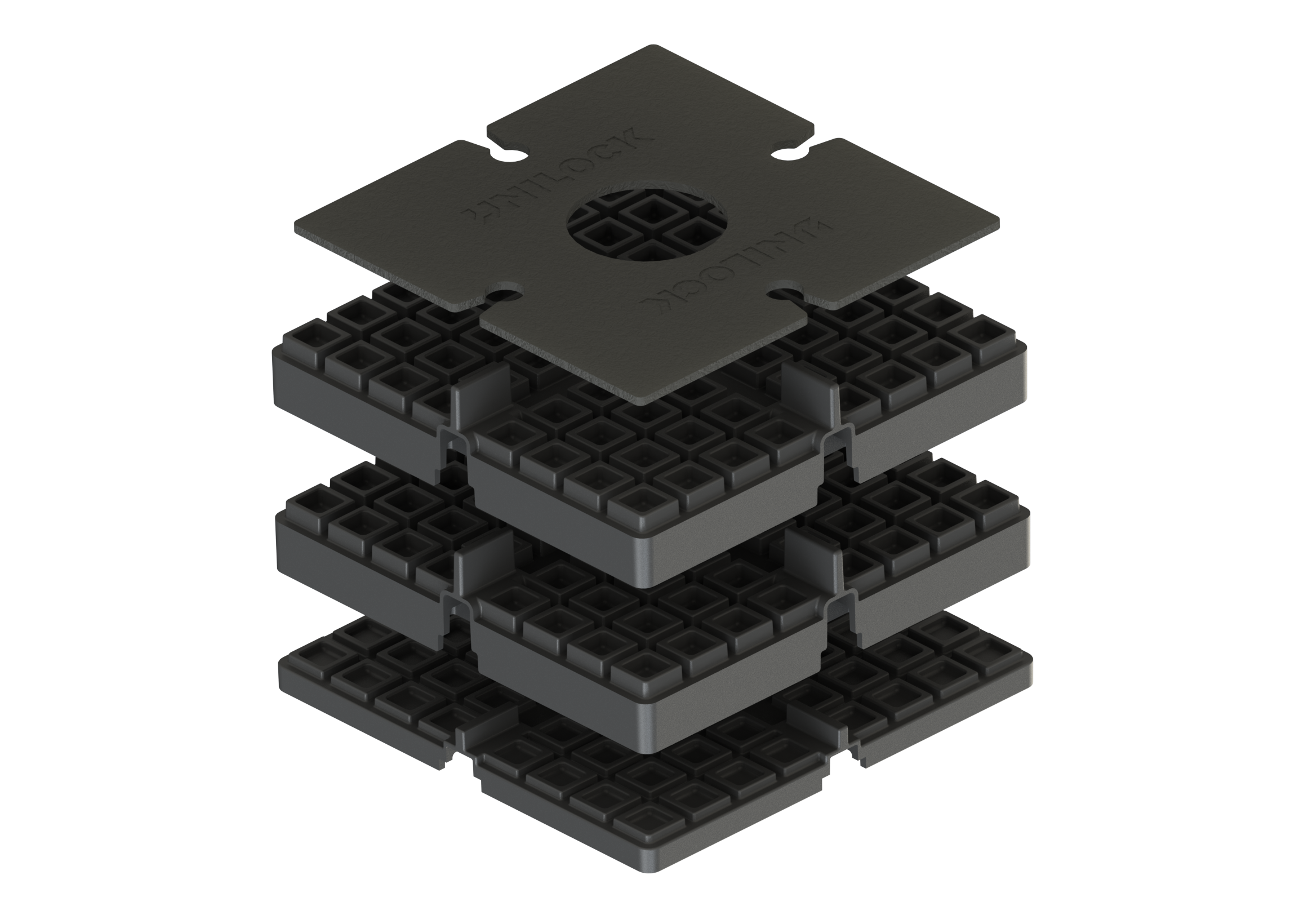

Component Features & Functions

SkyView Low-Profile Waffles play a vital role in providing a stable foundation for roof deck surfacing materials. Explore their features and functions to see how they work together to create a complete and reliable system.

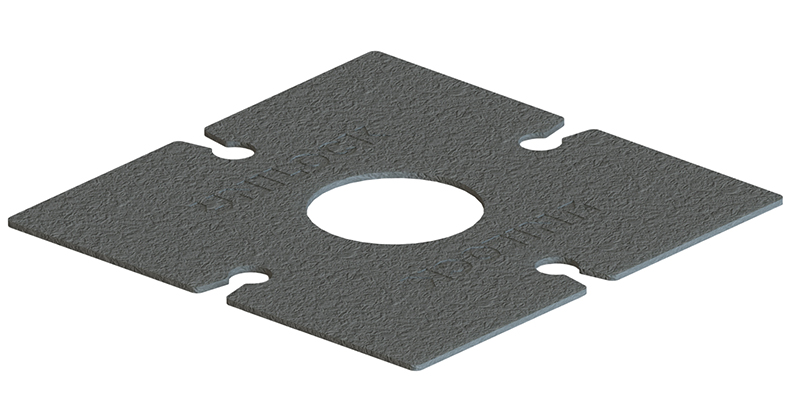

1/8" & 1/16" Top Pad
The Top Pad is made from rubber which aids in sound dampening, shock absorption, and grip. It can also be used effectively for shimming to fine tune the leveling of pavers on pedestals.
1" Waffle
Used in place of SkyView Pedestals to support roof deck slabs in low-elevation installations.
1/2" Waffle
Used in place of SkyView Pedestals to support roof deck slabs in low-elevation installations.

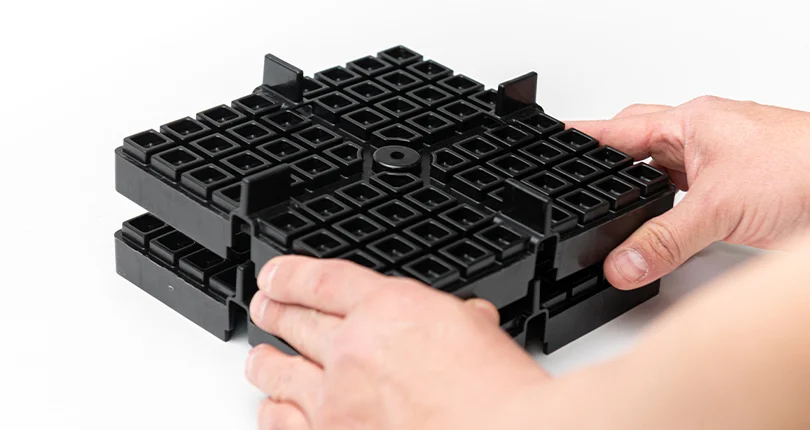

Waffle Pattern
The waffle pattern enhances structural integrity when multiple units are stacked, by providing an interlocked connection that prevents shifting and lateral movement.
3/16" Tabs
The Top features four 3/16” inch tabs at the center of all sides to facilitate easy and fast alignment when installing surfacing materials.
Facebook
Twitter
LinkedIn
Email
Facebook
Twitter
LinkedIn
Email
Facebook
Twitter
LinkedIn
Email
1
4
Endless Surfacing Options

SkyView Low-Profile Waffles offer the opportunity to use any Unilock paver on pedestals. Choose from our extensive selection of concrete roof deck slabs available in various finishes, sizes, and colors; SkyView Wood Tile; or SkyView Grate to support any Unilock paver.
