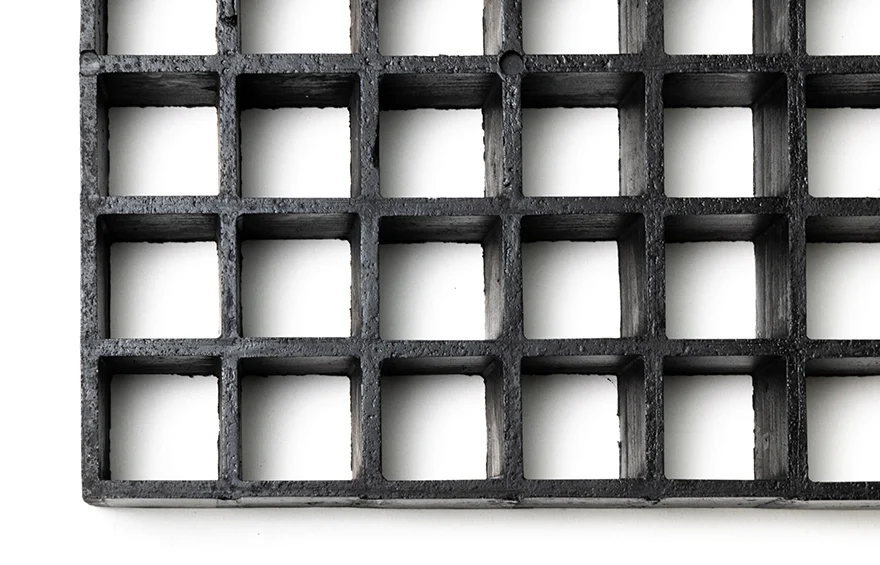

SkyView™ Grate
Installed on top of SkyView Pedestals or Low-Profile Waffles, SkyView Grate serves as a support system for small-format pavers, allowing for a wide variety of laying patterns, inlays, and accent border, just like with on-grade applications. The grate also features a notch on all four corners to allow for enhanced securement to pedestals or waffles with a washer and screw.

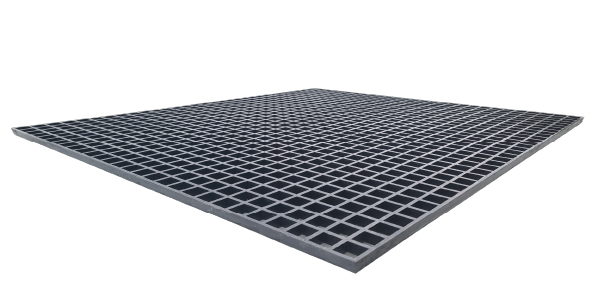

48 x 48” (1219.2 x 1219.2mm)
H: 1.5” (38.1mm)
Grid Size: 1.5 x 1.5”
ASTM D695-23 – Standard Test Method for Compressive Properties of Rigid Plastics
- Compressive Strength: 56,854 PSI
- Compressive Modulus: 4,539 PSI
ASTM D638-22 – Standard Test Method for Tensile Properties of Plastics
- Tensile Strength: 75,999 PSI
- Tensile Modulus: 4,249,605 PSI
ASTM D635-22 – Standard Test Method for Rate of Burning and/or Extent and Time of Burning of Plastics in a Horizontal Position
- Horizontal Burning: Class CC1 rating
ASTM D790-17 – Standard Test Methods for Flexural Properties of Unreinforced and Reinforced Plastics and Electrical Insulating Materials
- Flexural Strength: 71,213 PSI
Unilock products can help contribute to earning points toward LEED certification for your projects. See LEED v5 for more specific project site details when calculating credits.
LEED BD+C: New Construction – LEED v5: Sustainable Sites – Accessible Outdoor Space
ROOF DECK SYSTEM PRODUCTS
Didn’t find what you were looking for? Explore the other products available in our SkyView Roof Deck System.

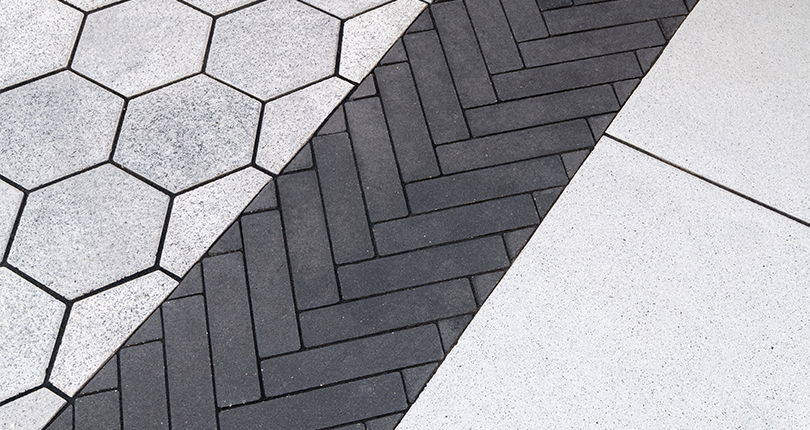

Large-format slabs are a popular choice for pedestal systems due to their clean lines and efficient installation. However, relying solely on large slabs can limit creative design opportunities. Incorporating small-format pavers can provide the opportunity to add accent borders, inlays, and enhanced visual interest in roof deck designs. Our SkyView Grate makes this possible. Watch the video to learn more.
Benefits of SkyView Grate
Light Weight and High Strength
The perfect combination of alkalis-free fiberglass yarn and resin ensures a high strength and lightweight material.
Fire Resistant
The grate has a fire-resistant material composition that has a CC1 fire rating based on the ASTM E-84 test.
Corrosion Resistant
With its special resin formula, the grate is resistant to acids and alkalis and can be safely used in a chemically corrosive environment.
Long Service Life
The high-quality matrix resin and anti-aging additive in the grate ensures exceptional durability. Unlike metal or wood alternatives, fiberglass won't rust, rot, or warp, making it an ideal long-term solution for rooftop environments exposed to moisture, temperature fluctuations, and UV rays.
With SkyView grate, you can use any Unilock paver in an elevated roof deck design. Discover hundreds of paver shapes, colors, and finishes that will bring your vision to life!
