Revela™

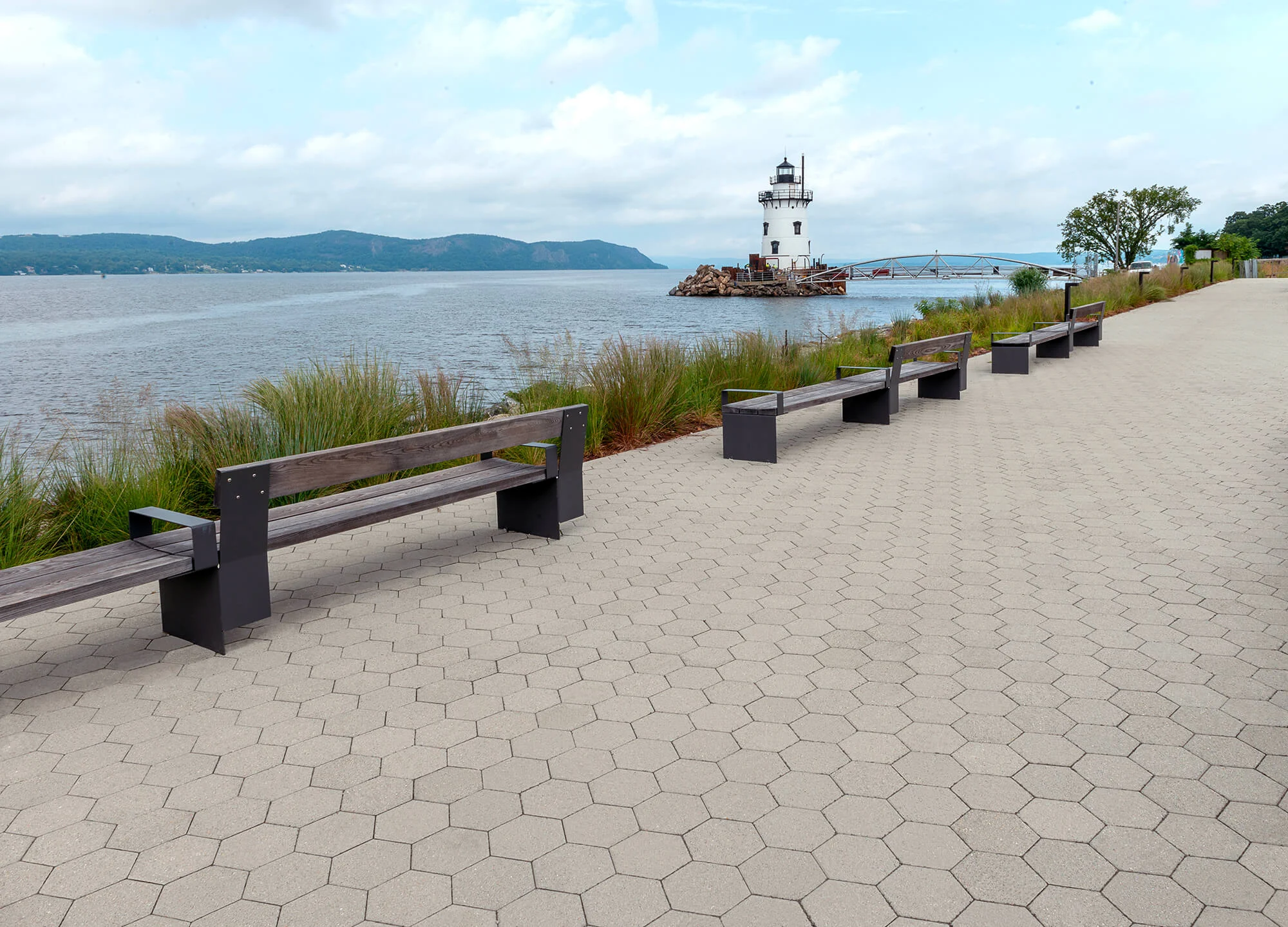

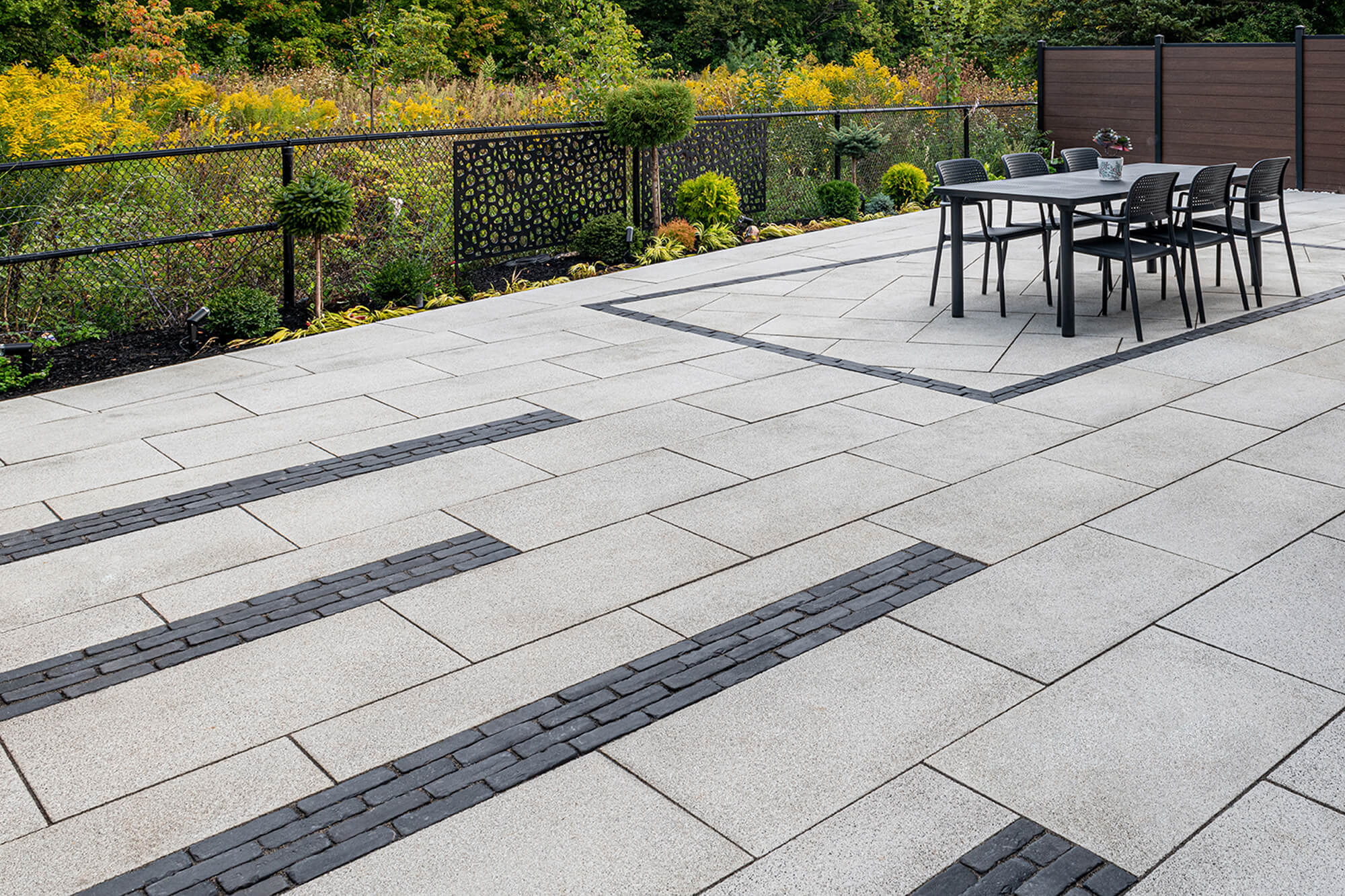

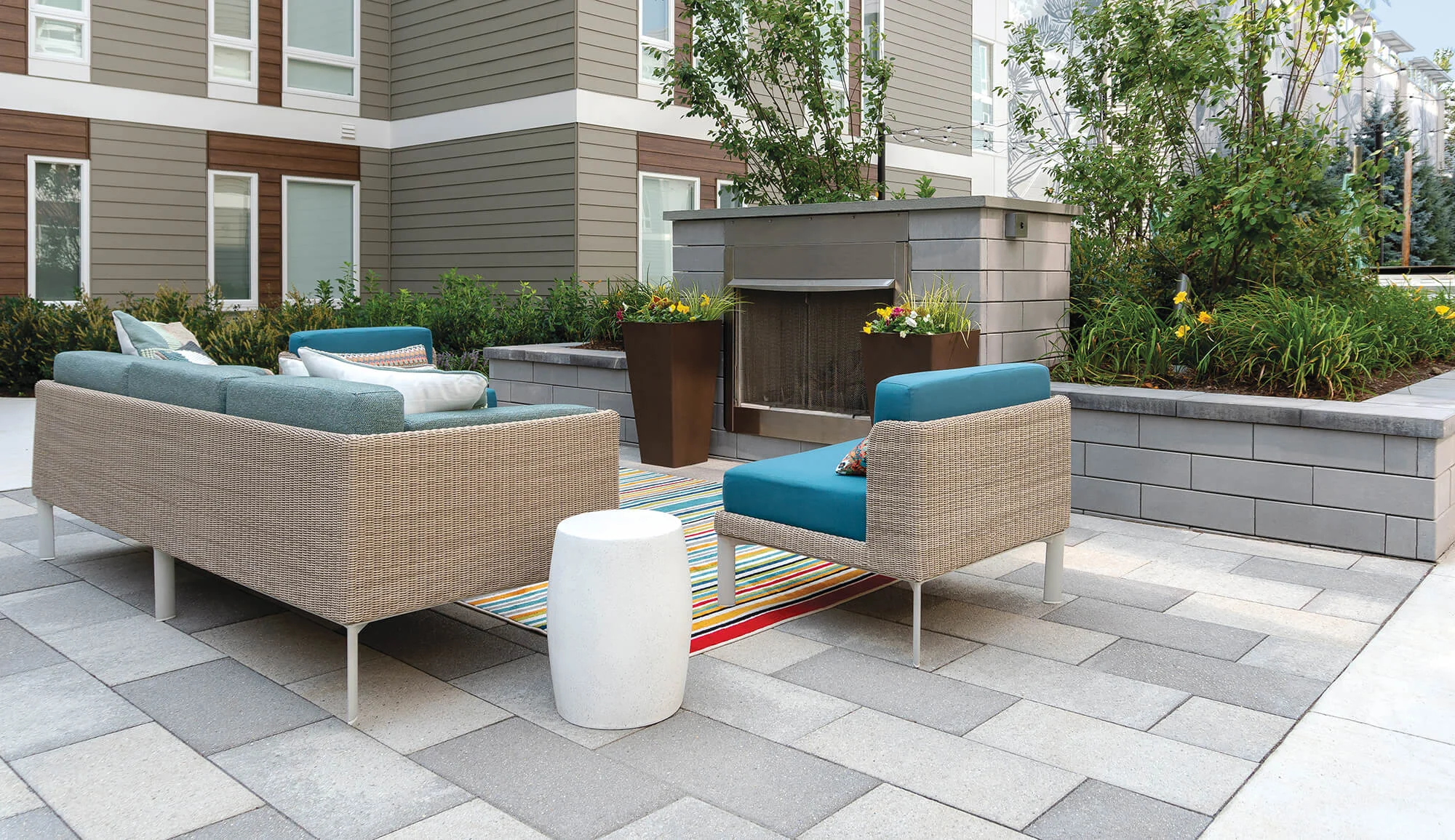

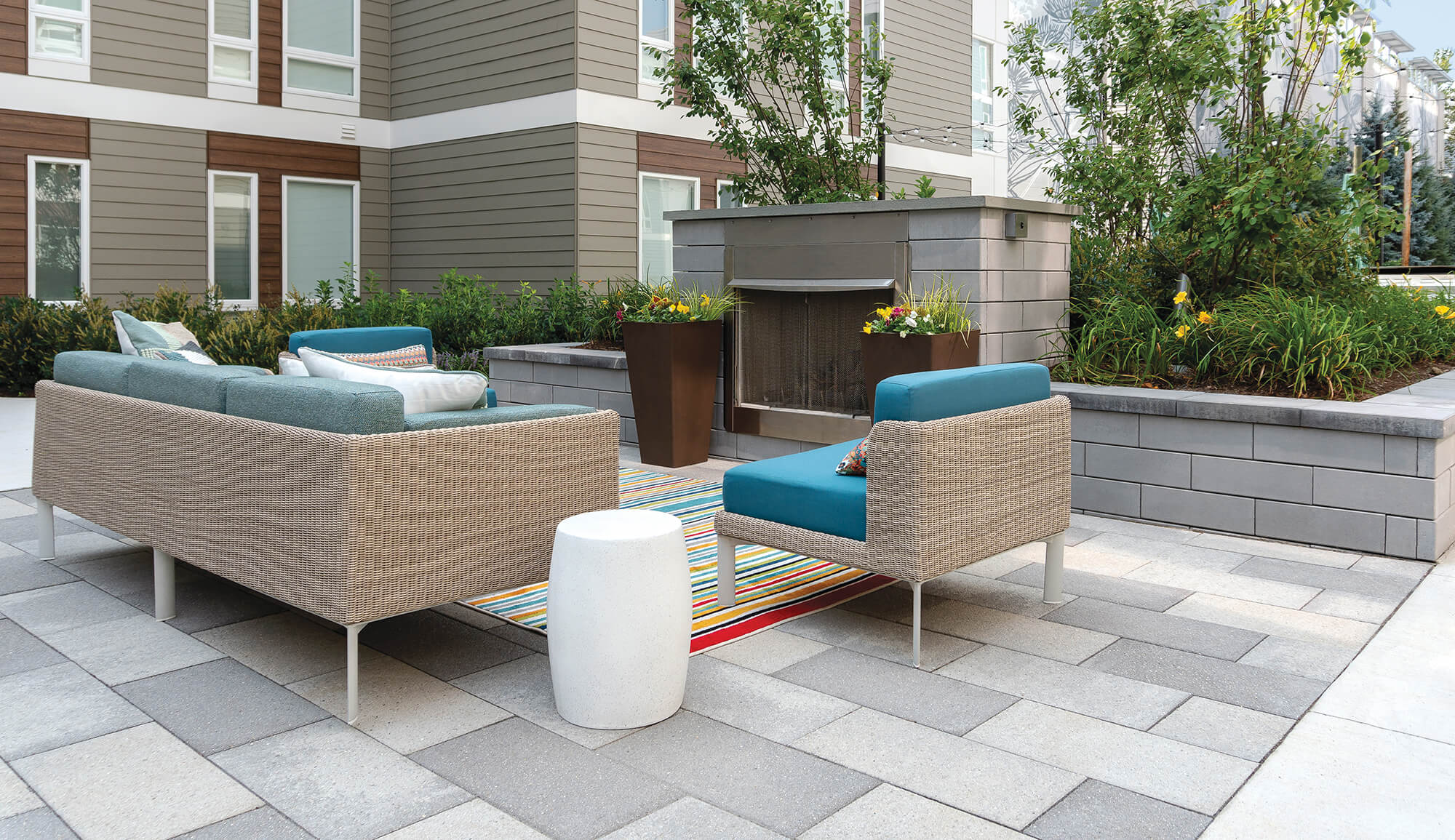

Revela pavers feature a textured surface created through precision shot-blasting, which exposes the natural aggregates for depth and visual interest. This process delivers a visually dynamic, tactile finish that combines aesthetic appeal with enhanced slip-resistance. Ideal for high-traffic areas, Revela pavers offer durable, long-lasting performance while providing a distinctive, modern texture that complements any design style.
Standard pavers encompass our full range of non-permeable paving options, offering exceptional versatility in shape and size. Designed for long-term performance and aesthetic flexibility, they’re perfect for any commercial project where performance and design impact are equally important.
36 x 36″
(900 x 900mm)
H: 3 ⅞”
(100mm)
24 x 24″
(600 x 600mm)
H: 2 ⅜ or 2 ¾”
(60 or 70mm)
24 x 24″
(604.8 x 604.8mm)
H: 2”
(51mm)
16 x 16″
(400 x 400mm)
H: 2 ¾, 3 ⅛ or 3 ⅞”
(70, 80, 100mm)
12 x 12″
(300 x 300mm)
H: 2 ¾ or 3 ⅞”
(70 or 100mm)
Load Lock™ – 12 x 12″
(300 x 300mm)
H: 3 ⅞”
(100mm)
9 x 9″
(228 x 228mm)
H: 2 ⅜”
(60mm)
8 x 8″
(200 x 200mm)
H: 2 ⅜ or 2 ¾”
(60 or 70mm)
6 x 6″
(150 x 150mm)
H: 2 ¾”
(70mm)
24 x 48″
(604.8 x 1214.4mm)
H: 2 ½”
(63.5mm)
22 ½ x 37 ½”
(570 x 950mm)
H: 2 ⅜”
(60mm)
24 x 36″
(604.8 x 909.6mm)
H: 2″
(51mm)
*Also available with a false joint at 24″
18 x 36″
(450 x 900mm)
H: 2 ⅜ or 3 ⅞”
(60 or 100mm)
18 x 36″
(452.4 x 909.6mm)
H: 2″
(51mm)
21 x 35 ½”
(540 x 900mm)
H: 2 ⅜”
(60mm)
15 x 30″
(375 x 750mm)
H: 2 ⅜”
(60mm)
18 x 24″
(450 x 600mm)
H: 2 ⅜”
(60mm)
18 x 24″
(452.5 x 604.8mm)
H: 2″
(51mm)
12 x 24″
(300 x 600mm)
H: 2 ¾ or 3 ⅞”
(70 or 100mm)
12 x 24″
(300 x 604.8mm)
H: 2”
(51mm)
Load Lock™ – 12 x 24″
(300 x 600mm)
H: 3 ⅞”
(100mm)
8 x 16″
(200 x 400mm)
H: 2 ¾ or 3 ⅞”
(70 or 100mm)
7 ½ x 15″
(190 x 380mm)
H: 2 ⅜ or 3 ⅛”
(60 or 80mm)
7 x 14″
(180 x 360mm)
H: 2 ⅜, 2 ¾ or 3 ⅛”
(60, 70 or 80mm)
6 x 12″
(150 x 300mm)
H: 2 ¾, 3 ⅛ or 3 ⅞”
(70, 80 or 100mm)
Load Lock™ – 6 x 12″
(150 x 300mm)
H: 3 ⅞ or 6″
(100 or 150mm)
Metro™ – 5 x 10″
(125 x 250 mm)
H: 2 ¾”
(70mm)
4 x 8″
(100 x 200mm)
H: 2 ⅜, 2 ¾ or 3 ⅛”
(60, 70, or 80mm)
8 x 24″
(180 x 600mm)
H: 2 ¾, 3 ⅞”
(70 or 100mm)
6 x 24″
(150 x 600mm)
H: 2 ¾”
(70mm)
4 x 16″
(100 x 400mm)
H: 2 ¾ or 3 ⅞”
(70 or 100mm)
4 x 12″
(100 x 300mm)
H: 2 ¾ or 3 ⅞”
(70 or 100mm)
Load Lock™ – 4 x 12″
(100 x 300mm)
H: 3 ⅞”
(100mm)
3 x 12″
(75 x 300mm)
H: 3 ⅞”
(100mm)
2 ⅜ x 9 ½”
(60 x 240mm)
H: 2 ⅜ or 2 ¾”
(60 or 70mm)
Trapezoid – 9 x 15″
(228 x 381 mm)
H: 3 ⅛”
(80mm)
Hex – 8″
(200 x 200mm)
H: 2 ¾”
(70mm)
Optiloc™
(260 x 260mm)
H: 3 ⅛”
(80mm)
Random Platform 1
7 ½ x 15, 15 x 15, 15 x 22 ½”
(190 x 380, 380 x 380, 380 x 570mm)
H: 2 ⅜ or 3 ⅛”
(60 or 80mm)
Random Platform 2
7 x 14, 14 x 14, 14 x 21″
(180 x 360, 360 x 360, 360 x 540mm)
H: 2 ⅜ or 3 ⅛”
(60 or 80mm)
Metro™ Platform
5 x 10, 10 x 10, 10 x 15″
(125 x 250, 250 x 250, 250 x 375mm)
H: 2 ¾”
(70mm)
Artline™ Platform
4 ⅞ x 6 ¾ | 4 ⅞ x 10 ⅜ | 4 ⅞ x 13 ⅜ | 4 ⅞ x 17 ¾ | 7 ½ x 8 ⅞ | 7 ½ x 13 ⅜ | 7 ½ x 17 ¾”
(125 x 169 | 125 x 262.5 | 125 x 337.5 | 125 x 450 | 187.5 x 225 | 187.5 x 337.5 | 187.5 x 450mm)
H: 2 ¾”
(70mm)
Permeable pavers provide a sustainable and effective approach to stormwater management. Featuring wider joints filled with open-graded aggregate, they function in tandem with an open-graded base to promote rapid rainwater infiltration without compromising structural performance and design aesthetics.
Permeable – 6 x 24″
(150 x 600mm)
H: 2 ¾”
(70mm)
Joint Space: 10mm
Void %: 6.23%
Permeable – 4 x 16″
(100 x 400mm)
H: 3 ⅞”
(100mm)
Joint Space: 7mm
Void %: 10.12%
Permeable – 12 x 12″
(300 x 300mm)
H: 3 ⅞”
(100mm)
Joint Space: 7mm
Void %: 4.84%
Permeable – 6 x 12″
(152.4 x 304.8mm)
H: 3 ⅛”
(80mm)
Joint Space: 10mm
Void %: 10.65%
Permeable – 4 x 12″
(100 x 300mm)
H: 3 ⅛”
(80mm)
Joint Space: 7mm
Void %: 8.6%
Permeable EcoTerra® – 4 x 12″
(100 x 300mm)
H: 3 ⅛”
(80mm)
Joint Space: 7mm
Void %: 8.6%
Permeable – 3 x 12″
(75 x 300mm)
H: 3 ⅞”
(100mm)
Joint Space: 7mm
Void %: 10.12%
Treo™ – 4 ⅝ x 9 ¼”
(116.5 x 233mm)
H: 2 ⅜”
(60mm)
Joint Space: 7mm
Void %: 7.8%
Eco-Priora™ – 10 x 10″
(240 x 240mm)
H: 3 ⅛”
(80mm)
Joint Space: 7mm
Void %: 4.6%
Eco-Priora™ – 5 x 10″
(120 x 240mm)
H: 3 ⅛”
(80mm)
Joint Space: 7mm
Void %: 6.8%
Eco-Priora™ – 5 x 5″
(120 x 120mm)
H: 3 ⅛”
(80mm)
Joint Space: 6mm
Void %: 12.8%
Permeable Hex – 8″
(205 x 205mm)
H: 2 ⅜ or 3 ⅛”
(60 or 80mm)
Joint Space: 10mm
Void %: 4.2%
Eco-Optiloc™
(250 x 250mm)
H: 3 ⅛”
(80mm)
Joint Space: 12mm
Void %: 7.3%
Thornbury™ Platform
8 ¼ x 6 ⅞, 8 ¼ x 13 ¾, 13 ¾ x 16 ½”
(210 x 173, 210 x 350, 350 x 420mm)
H: 2 ¾”
(70mm)
Joint Space: 11-18mm
Void %: 4.4%
Treo™ Platform
9 ¼ x 4 ⅝, 9 ¼ x 9 ¼, 9 ¼ x 13 ¾”
(233 x 116, 233 x 233, 233 x 349)
H: 2 ⅜ or 3 ⅛”
(60 or 80mm)
Joint Space: 7mm
Void %: 5.5%
Eco-Line® Platform
3 ⁵⁄₁₆ x 9 ⅜” | 3 ⁵⁄₁₆ x 11″ | 3 ⁵⁄₁₆ x 12 ½” | 3 ⁵⁄₁₆ x 14″ | 4 ½ x 9 ⅜” | 4 ½ x 11″ | 4 ½ x 12 ½” | 4 ½ x 14″
(84 x 237 |84 x 277 | 84 x 317 | 84 x 357 | 114 x 237 | 114 x 277 | 114 x 317 | 114 x 357mm)
H: 3 ⅞”
(100mm)
Joint Space: 6.25mm
Void %: 5.8%
Built for performance, heavy-duty pavers deliver exceptional load-bearing capacity for high-traffic and industrial areas. Available in both standard and permeable options, they’re engineered to withstand heavy vehicles and demanding conditions without compromising design aesthetics.
Load Lock™ – 12 x 24″
(300 x 600mm)
H: 3 ⅞”
(100mm)
12 x 12″
(300 x 300mm)
H: 3 ⅞”
(100mm)
Load Lock™ – 12 x 12″
(300 x 300mm)
H: 3 ⅞”
(100mm)
6 x 12″
(150 x 300mm)
H: 3 ⅞”
(100mm)
Load Lock™ – 6 x 12″
(150 x 300mm)
H: 3 ⅞ or 6″
(100 or 150mm)
4 x 12″
(100 x 300mm)
H: 3 ⅞”
(100mm)
Load Lock™ – 4 x 12″
(100 x 300mm)
H: 3 ⅞”
(100mm)
3 x 12″
(75 x 300mm)
H: 3 ⅞”
(100mm)
8 x 8″
(200 x 200mm)
H: 2 ¾”
(70mm)
4 x 8″
(100 x 200mm)
H: 2 ¾ or 3 ⅛”
(70 or 80mm)
6 x 6″
(150 x 150mm)
H: 2 ¾”
(70mm)
Hex – 8″
(200 x 200mm)
H: 2 ¾”
(70mm)
Optiloc™
(260 x 260mm)
H: 3 ⅛”
(80mm)
Permeable – 12 x 12″
(300 x 300mm)
H: 3 ⅞”
(100mm)
Joint Space: 7mm
Void %: 4.84%
Permeable – 3 x 12″
(75 x 300mm)
H: 3 ⅞”
(100mm)
Joint Space: 7mm
Void %: 10.12%
Eco-Priora™ – 10 x 10″
(240 x 240mm)
H: 3 ⅛”
(80mm)
Joint Space: 7mm
Void %: 4.6%
Eco-Priora™ – 5 x 10″
(120 x 240mm)
H: 3 ⅛”
(80mm)
Joint Space: 7mm
Void %: 6.8%
Eco-Priora™ – 5 x 5″
(120 x 120mm)
H: 3 ⅛”
(80mm)
Joint Space: 6mm
Void %: 12.8%
Permeable Hex – 8″
(205 x 205mm)
H: 3 ⅛”
(80mm)
Joint Space: 10mm
Void %: 4.2%
Eco-Optiloc™
(250 x 250mm)
H: 3 ⅛”
(80mm)
Joint Space: 12mm
Void %: 7.3%
Ideal for pedestal installation, roof deck slabs offer a durable surfacing solution for rooftop decks, patios, and terraces. Available in large-format sizes, they allow designers to create functional, visually cohesive outdoor spaces in elevated settings.
24 x 48″
(604.8 x 1214.4mm)
H: 2 ½”
(63.5mm)
22 ½ x 37 ½”
(570 x 950mm)
H: 2 ⅜”
(60mm)
24 x 36″
(604.8 x 909.6mm)
H: 2″
(51mm)
*Also available with a false joint at 24″
Wind Uplift – 24 x 36″
(604.8 x 909.6mm)
H: 2″
(51mm)
*Also available with a false joint at 24″
18 x 36″
(450 x 900mm)
H: 2 ⅜”
(60mm)
18 x 36″
(452.4 x 909.6mm)
H: 2″
(51mm)
21 x 35 ½”
(540 x 900mm)
H: 2 ⅜”
(60mm)
15 x 30″
(375 x 750mm)
H: 2 ⅜”
(60mm)
24 x 24″
(604.8 x 604.8mm)
H: 2”
(51mm)
24 x 24″
(600 x 600mm)
H: 2 ⅜”
(60mm)
Wind Uplift – 24 x 24″
(604.8 x 604.8mm)
H: 2”
(51mm)
18 x 24″
(450 x 600mm)
H: 2 ⅜”
(60mm)
18 x 24″
(452.5 x 604.8mm)
H: 2″
(51mm)
12 x 24″
(300 x 604.8mm)
H: 2”
(51mm)
Frost
SRI 68 | SR 0.57
Sterling
Savannah
Sandy Beige
Chamois
Metallic Grey
SRI 18 | SR 0.19
Light Opal Blend
Silver Grey
Light Steel Grey Blend
Charcoal

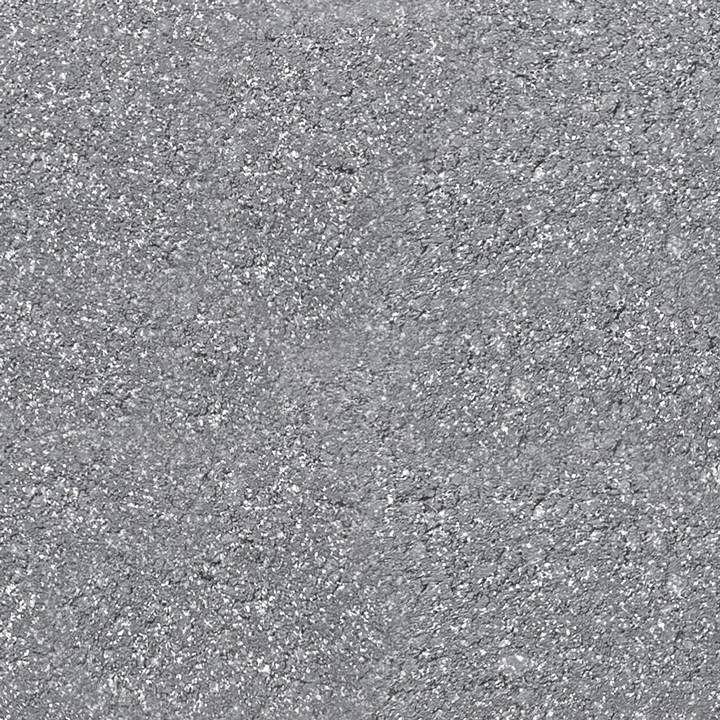

Colors listed on this page with this symbol have the ability to be manufactured with EcoTerra™ Technology.
*Colors may vary by plant of manufacture. Final product selection should be made with full size samples and mock-ups. Contact your Unilock representative for details.
Pavers: Unilock meets and exceeds ASTM C936 – Standard Specifications for Solid Concrete Interlocking Paving Units using test methods conforming to:
- ASTM C1645 for Freeze Thaw Durability <225g/m2
- C140 for Compressive Strength >8000 psi and Absorption <5%
- C418 for Abrasion Resistance
Slabs: Unilock meets and exceeds ASTM C1782 – Standard Specification for Segmental Concrete Paving Slabs using test methods conforming to:
- ASTM C1645 for Freeze Thaw Durability <225g/m2
- C140 for Compressive Strength >8000 psi , Flexural Strength >725 psi, and Absorption <5%
- C418 for Abrasion Resistance
Unilock products can help you earn points toward LEED certification for your projects with their sustainable characteristics and documentation. See LEED v4.1 for more specific project site details when calculating credits.
Potential LEED Credits for Using Unilock Non-Permeable Pavers
LEED BD+C: New Construction – LEED v4.1
- Materials and Resources
- Sourcing of Raw Materials: Responsible Sourcing of Raw Materials – Recycled Content
- Material Ingredients: Option 1. Material Ingredient Reporting – Health Product Declaration
- Environmental Product Declarations: Option 1. Environmental Product Declaration (EPD)
- Sustainable Sites
- Heat Island Reduction: Option 1. Nonroof and Roof
Potential LEED Credits for Using Unilock Permeable Pavers
- Materials and Resources
- Sourcing of Raw Materials: Responsible Sourcing of Raw Materials – Recycled Content
- Material Ingredients: Option 1. Material Ingredient Reporting – Health Product Declaration
- Environmental Product Declarations: Option 1. Environmental Product Declaration (EPD)
- Sustainable Sites
- Rainwater Management: Option 1. Percentile of Rainfall Events
- Heat Island Reduction: Option 1. Nonroof and Roof
Every project is unique, and we’re here to help bring your vision to life. If you don’t find exactly what you’re looking for in our current selection, our team can work with you to create a fully customized paving solution, including:
- Custom shapes, sizes & colors
- Additional surface texturing
- Factory sealing
Your Unilock representative is here to support you at every stage of your design process. Whether you need expert advice, product recommendations, or samples, we’re just a call or click away. Find your local representative and connect by phone or email, or submit a request using one of our online forms.
