Umbriano®

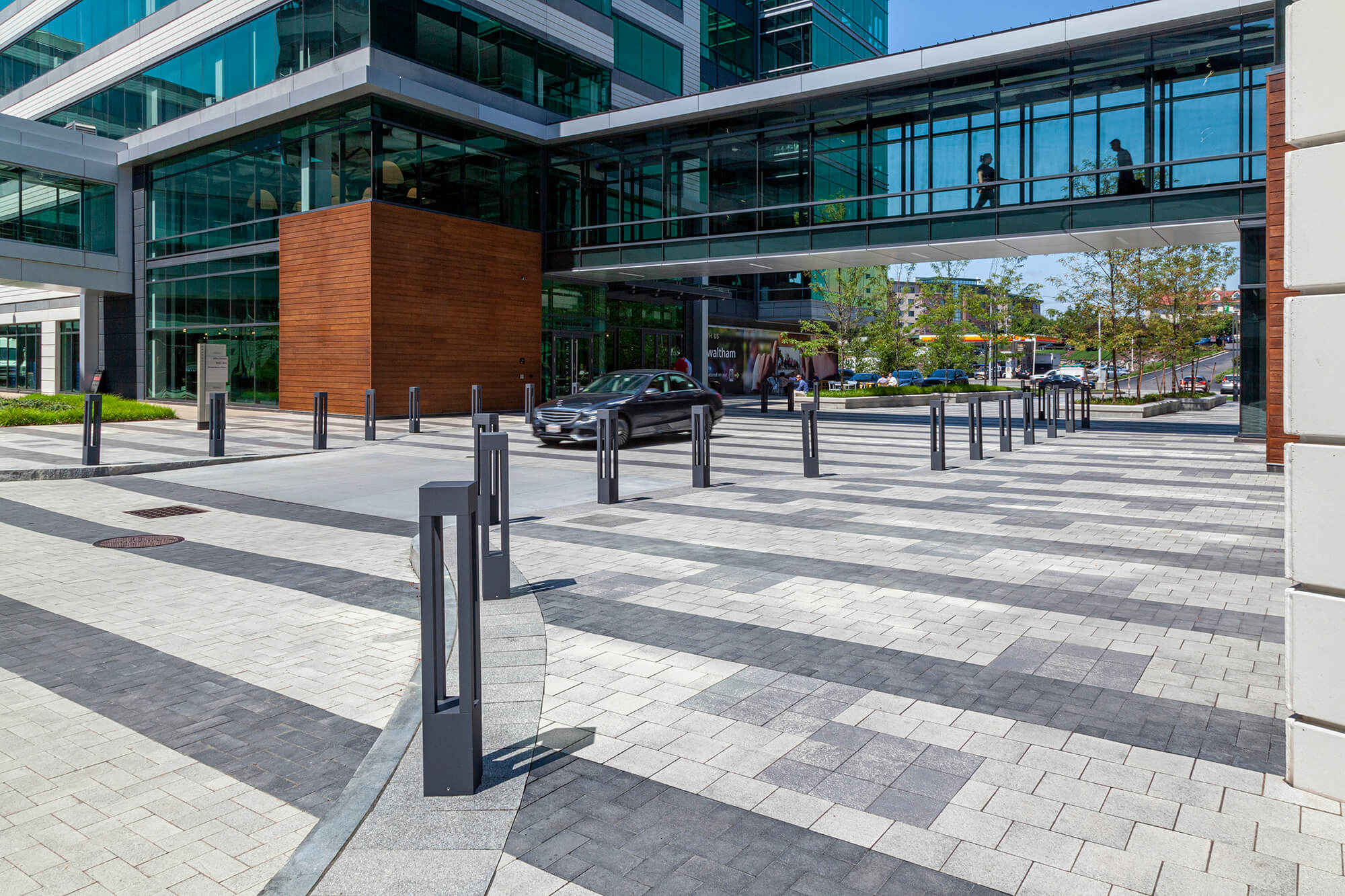

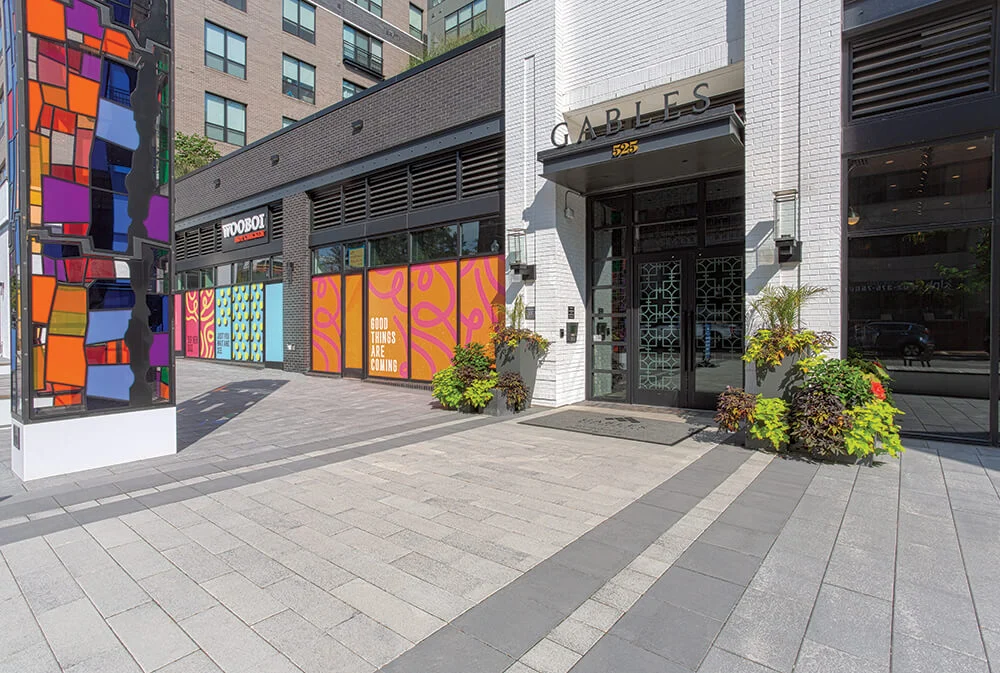

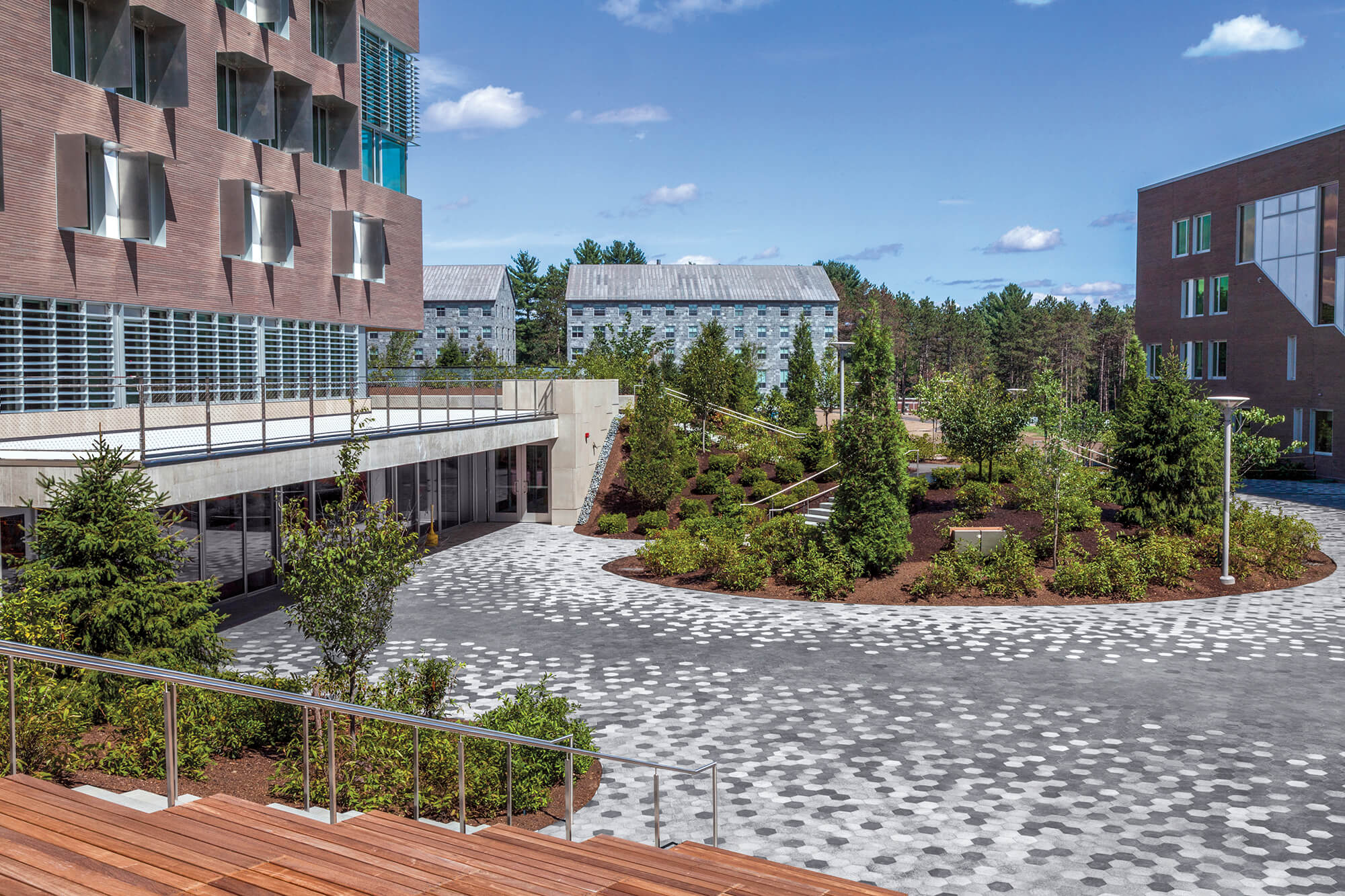

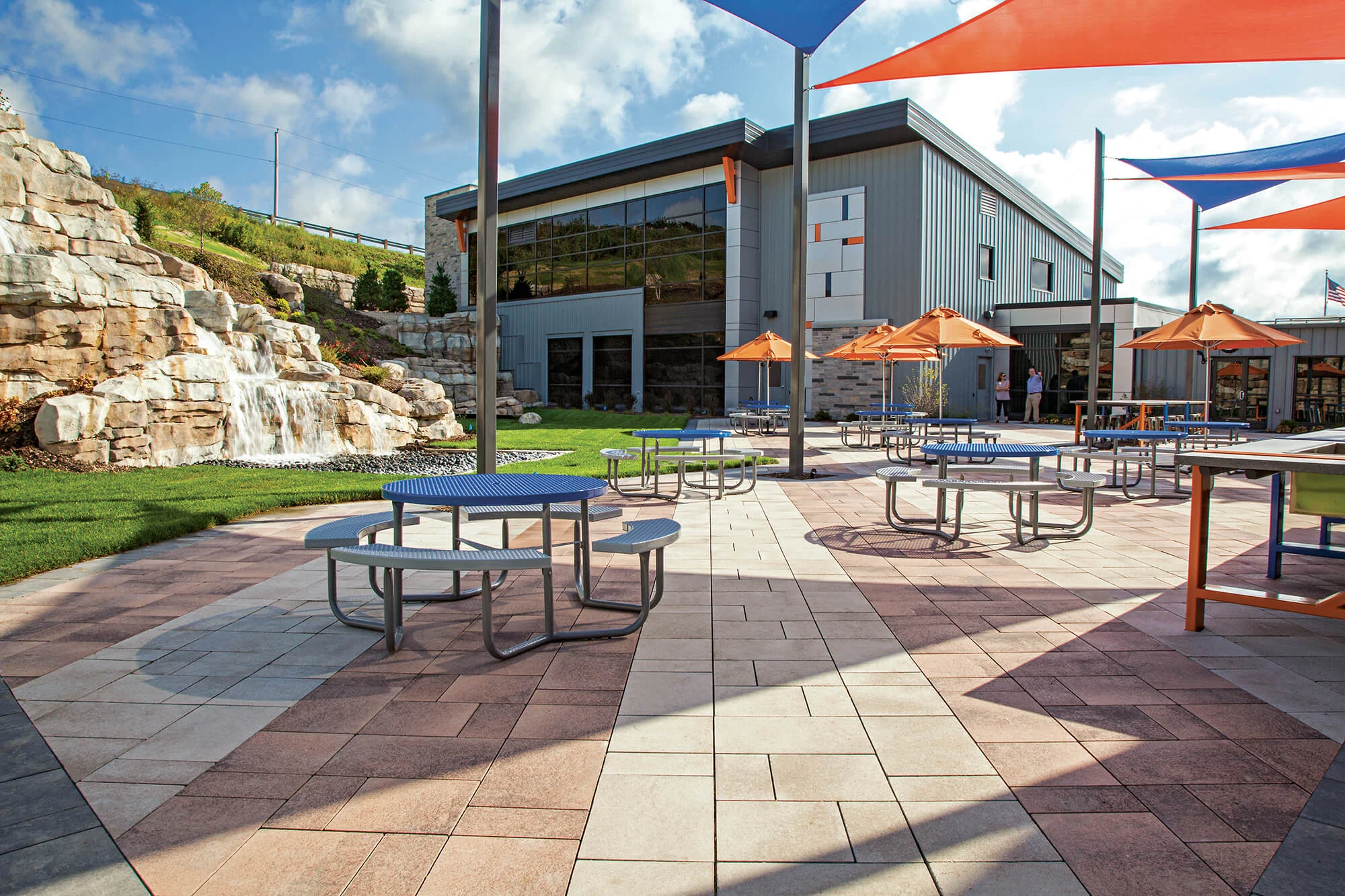

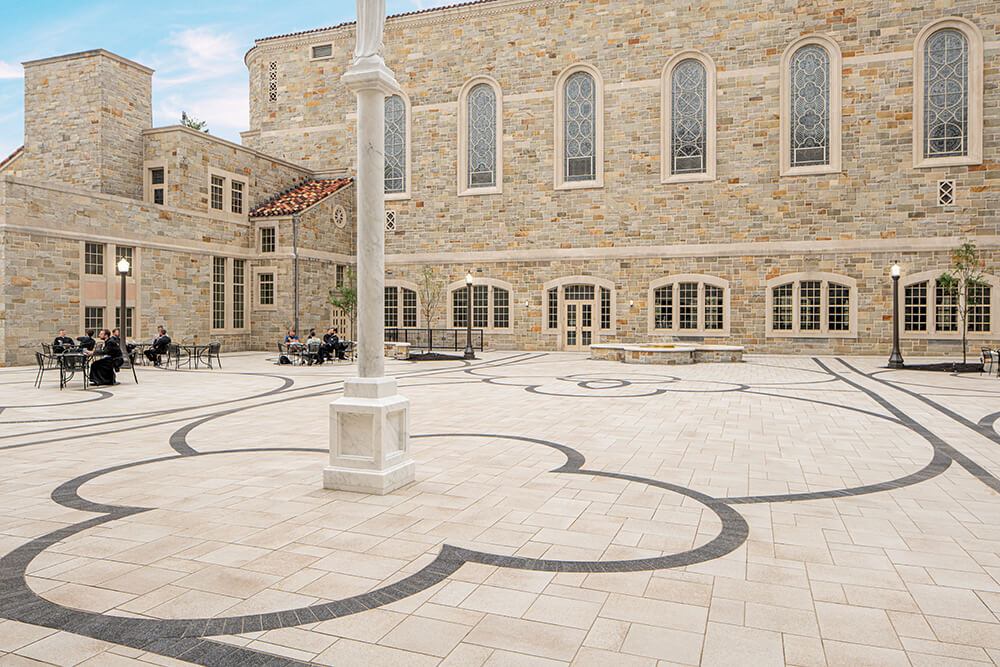

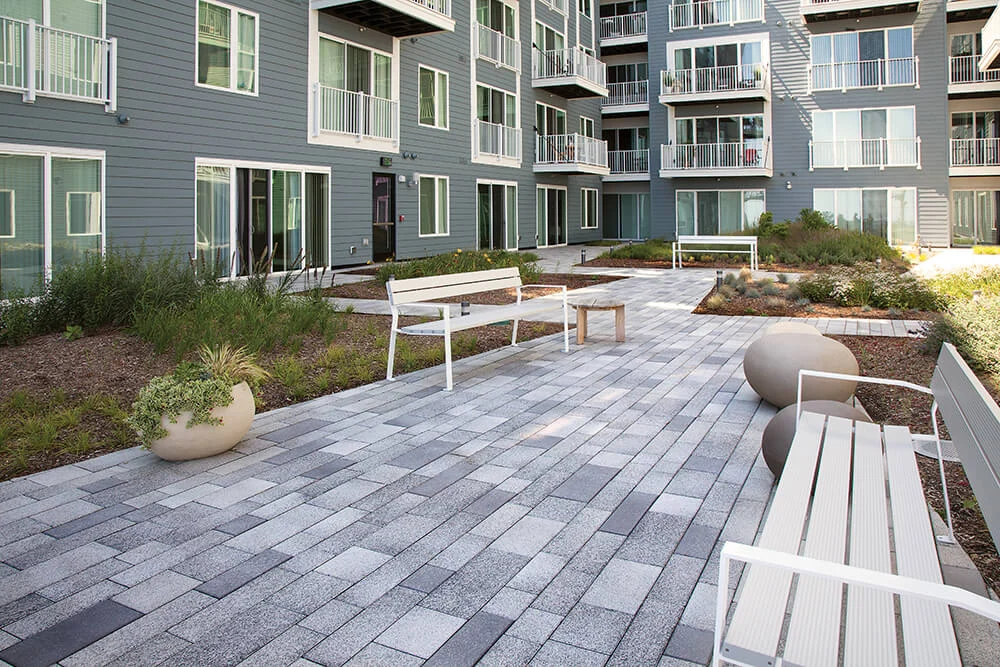

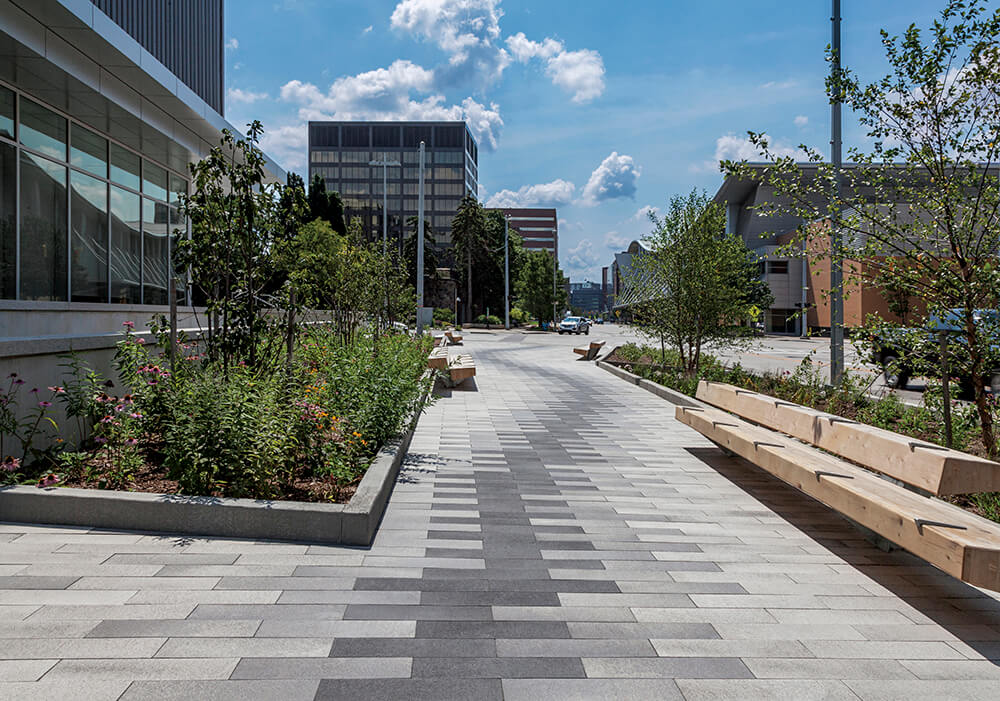

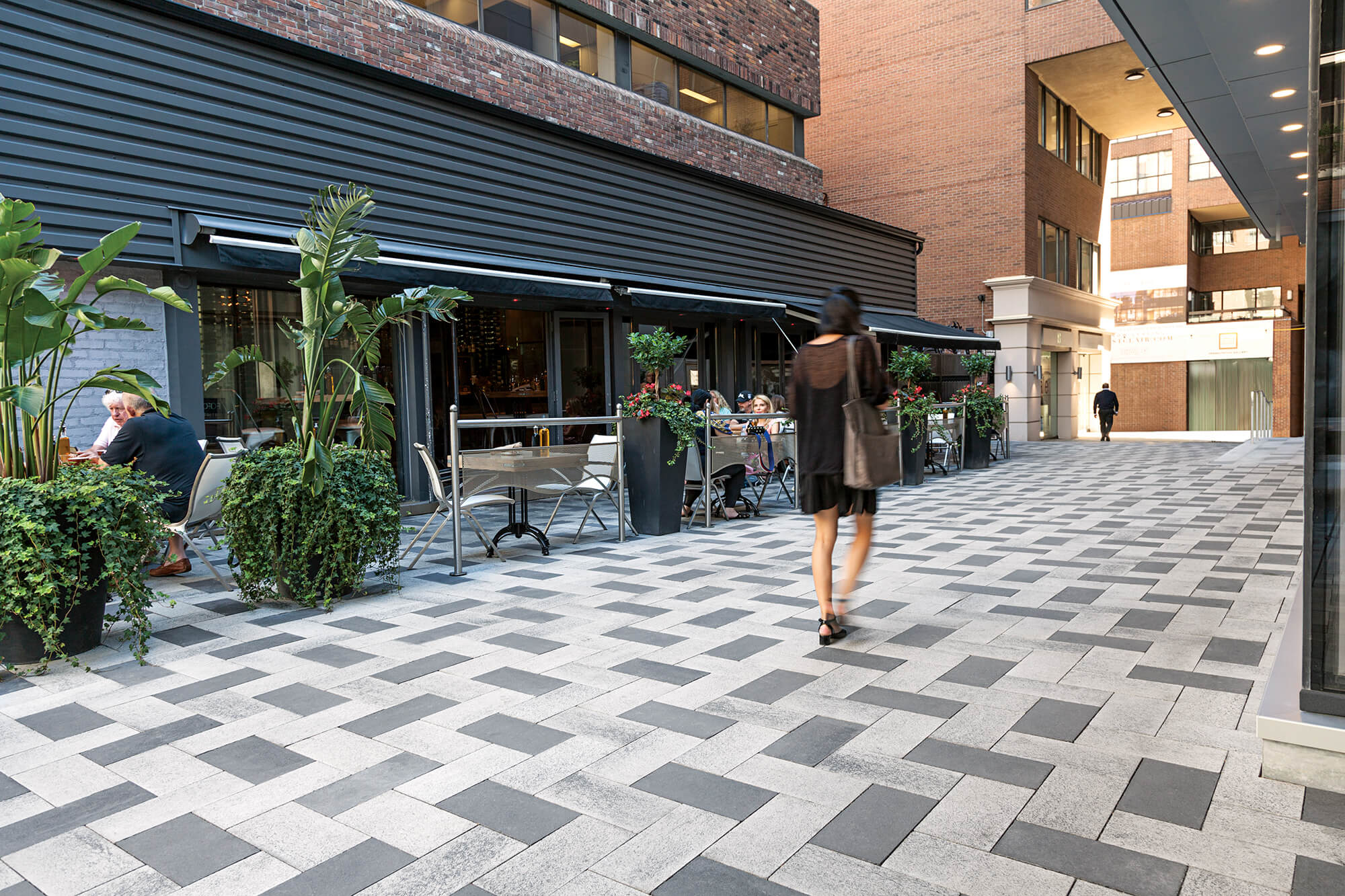

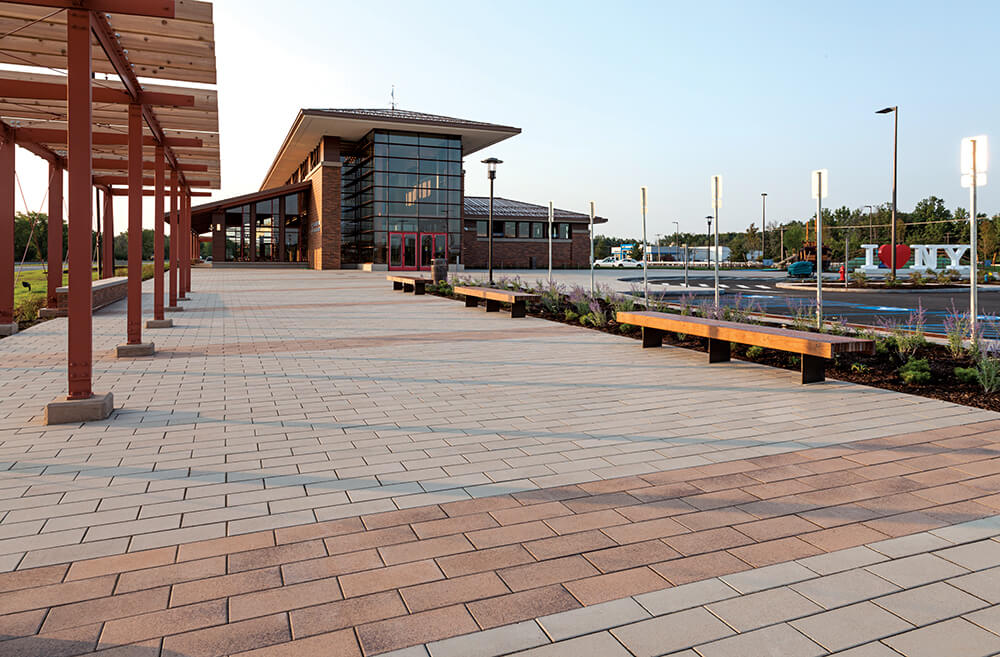

Umbriano pavers deliver a granite-like appearance ideal for sleek, modern hardscape designs. Their unique mottled surface is created by the random dispersion of granite particles and rich color blends, producing a natural aesthetic with subtle variation. The textured surface achieves a non-slip finish that ensures both beauty and performance in high-traffic environments.
Standard pavers encompass our full range of non-permeable paving options, offering exceptional versatility in shape and size. Designed for long-term performance and aesthetic flexibility, they’re perfect for any commercial project where performance and design impact are equally important.
36 x 36″
(900 x 900mm)
H: 3 ⅞”
(100mm)
24 x 24″
(600 x 600mm)
H: 2 ⅜ or 2 ¾”
(60 or 70mm)
16 x 16″
(400 x 400mm)
H: 2 ¾, 3 ⅛ or 3 ⅞”
(70, 80, 100mm)
12 x 12″
(300 x 300mm)
H: 2 ¾ or 3 ⅞”
(70 or 100mm)
Load Lock™ – 12 x 12″
(300 x 300mm)
H: 3 ⅞”
(100mm)
9 x 9″
(228 x 228mm)
H: 2 ⅜”
(60mm)
8 x 8″
(200 x 200mm)
H: 2 ⅜ or 2 ¾”
(60 or 70mm)
6 x 6″
(150 x 150mm)
H: 2 ¾”
(70mm)
22 ½ x 37 ½”
(570 x 950mm)
H: 2 ⅜”
(60mm)
18 x 36″
(450 x 900mm)
H: 2 ⅜ or 3 ⅞”
(60 or 100mm)
21 x 35 ½”
(540 x 900mm)
H: 2 ⅜”
(60mm)
15 x 30″
(375 x 750mm)
H: 2 ⅜”
(60mm)
18 x 24″
(450 x 600mm)
H: 2 ⅜”
(60mm)
12 x 24″
(300 x 600mm)
H: 2 ¾ or 3 ⅞”
(70 or 100mm)
Load Lock™ – 12 x 24″
(300 x 600mm)
H: 3 ⅞”
(100mm)
8 x 16″
(200 x 400mm)
H: 2 ¾ or 3 ⅞”
(70 or 100mm)
7 ½ x 15″
(190 x 380mm)
H: 2 ⅜ or 3 ⅛”
(60 or 80mm)
7 x 14″
(180 x 360mm)
H: 2 ⅜, 2 ¾ or 3 ⅛”
(60, 70 or 80mm)
6 x 12″
(150 x 300mm)
H: 2 ¾, 3 ⅛ or 3 ⅞”
(70, 80 or 100mm)
Load Lock™ – 6 x 12″
(150 x 300mm)
H: 3 ⅞ or 6″
(100 or 150mm)
Metro™ – 5 x 10″
(125 x 250 mm)
H: 2 ¾”
(70mm)
4 x 8″
(100 x 200mm)
H: 2 ⅜, 2 ¾ or 3 ⅛”
(60, 70, or 80mm)
8 x 24″
(180 x 600mm)
H: 2 ¾, 3 ⅞”
(70 or 100mm)
6 x 24″
(150 x 600mm)
H: 2 ¾”
(70mm)
4 x 16″
(100 x 400mm)
H: 2 ¾ or 3 ⅞”
(70 or 100mm)
4 x 12″
(100 x 300mm)
H: 2 ¾ or 3 ⅞”
(70 or 100mm)
Load Lock™ – 4 x 12″
(100 x 300mm)
H: 3 ⅞”
(100mm)
3 x 12″
(75 x 300mm)
H: 3 ⅞”
(100mm)
2 ⅜ x 9 ½”
(60 x 240mm)
H: 2 ⅜ or 2 ¾”
(60 or 70mm)
Trapezoid – 9 x 15″
(228 x 381 mm)
H: 3 ⅛”
(80mm)
Optiloc™
(260 x 260mm)
H: 3 ⅛”
(80mm)
Hex – 8″
(200 x 200mm)
H: 2 ¾”
(70mm)
Nordic Cobble®
(89.9 x 94mm)
H: 2 ⅜”
(60mm)
Random Platform 1
7 ½ x 15, 15 x 15, 15 x 22 ½”
(190 x 380, 380 x 380, 380 x 570mm)
H: 2 ⅜ or 3 ⅛”
(60 or 80mm)
Random Platform 2
7 x 14, 14 x 14, 14 x 21″
(180 x 360, 360 x 360, 360 x 540mm)
H: 2 ⅜ or 3 ⅛”
(60 or 80mm)
Metro™ Platform
5 x 10, 10 x 10, 10 x 15″
(125 x 250, 250 x 250, 250 x 375mm)
H: 2 ¾”
(70mm)
Tribeca Cobble™ Platform
5 x 6 ⅞, 5 x 9, 5 x 12″
(130 x 175, 130 x 230, 130 x 305mm)
H: 2 ¾”
(70mm)
Joint Space: 9-15mm
Void %: 5.6%
Artline™ Platform
4 ⅞ x 6 ¾ | 4 ⅞ x 10 ⅜ | 4 ⅞ x 13 ⅜ | 4 ⅞ x 17 ¾ | 7 ½ x 8 ⅞ | 7 ½ x 13 ⅜ | 7 ½ x 17 ¾”
(125 x 169 | 125 x 262.5 | 125 x 337.5 | 125 x 450 | 187.5 x 225 | 187.5 x 337.5 | 187.5 x 450mm)
H: 2 ¾”
(70mm)
Permeable pavers provide a sustainable and effective approach to stormwater management. Featuring wider joints filled with open-graded aggregate, they function in tandem with an open-graded base to promote rapid rainwater infiltration without compromising structural performance and design aesthetics.
Permeable – 6 x 24″
(150 x 600mm)
H: 2 ¾”
(70mm)
Joint Space: 10mm
Void %: 6.23%
Permeable – 4 x 16″
(100 x 400mm)
H: 3 ⅞”
(100mm)
Joint Space: 7mm
Void %: 10.12%
Permeable – 12 x 12″
(300 x 300mm)
H: 3 ⅞”
(100mm)
Joint Space: 7mm
Void %: 4.84%
Permeable – 6 x 12″
(152.4 x 304.8mm)
H: 3 ⅛”
(80mm)
Joint Space: 10mm
Void %: 10.65%
Permeable – 4 x 12″
(100 x 300mm)
H: 3 ⅛”
(80mm)
Joint Space: 7mm
Void %: 8.6%
Permeable – 3 x 12″
(75 x 300mm)
H: 3 ⅞”
(100mm)
Joint Space: 7mm
Void %: 10.12%
Treo™ – 4 ⅝ x 9 ¼”
(116.5 x 233mm)
H: 2 ⅜”
(60mm)
Joint Space: 7mm
Void %: 7.8%
Eco-Priora™ – 10 x 10″
(240 x 240mm)
H: 3 ⅛”
(80mm)
Joint Space: 7mm
Void %: 4.6%
Eco-Priora™ – 5 x 10″
(120 x 240mm)
H: 3 ⅛”
(80mm)
Joint Space: 7mm
Void %: 6.8%
Eco-Priora™ – 5 x 5″
(120 x 120mm)
H: 3 ⅛”
(80mm)
Joint Space: 6mm
Void %: 12.8%
Eco-Optiloc™
(250 x 250mm)
H: 3 ⅛”
(80mm)
Joint Space: 12mm
Void %: 7.3%
Permeable Hex – 8″
(205 x 205mm)
H: 2 ⅜ or 3 ⅛”
(60 or 80mm)
Joint Space: 10mm
Void %: 4.2%
Nordic Cobble®
(89.9 x 94mm)
H: 2 ⅜”
(60mm)
Treo™ Platform
9 ¼ x 4 ⅝, 9 ¼ x 9 ¼, 9 ¼ x 13 ¾”
(233 x 116, 233 x 233, 233 x 349)
H: 2 ⅜ or 3 ⅛”
(60 or 80mm)
Joint Space: 7mm
Void %: 5.5%
Thornbury™ Platform
8 ¼ x 6 ⅞, 8 ¼ x 13 ¾, 13 ¾ x 16 ½”
(210 x 173, 210 x 350, 350 x 420mm)
H: 2 ¾”
(70mm)
Joint Space: 11-18mm
Void %: 4.4%
Tribeca Cobble™ Platform
5 x 6 ⅞, 5 x 9, 5 x 12″
(130 x 175, 130 x 230, 130 x 305mm)
H: 2 ¾”
(70mm)
Joint Space: 9-15mm
Void %: 5.6%
Eco-Line® Platform
3 ⁵⁄₁₆ x 9 ⅜” | 3 ⁵⁄₁₆ x 11″ | 3 ⁵⁄₁₆ x 12 ½” | 3 ⁵⁄₁₆ x 14″ | 4 ½ x 9 ⅜” | 4 ½ x 11″ | 4 ½ x 12 ½” | 4 ½ x 14″
(84 x 237 |84 x 277 | 84 x 317 | 84 x 357 | 114 x 237 | 114 x 277 | 114 x 317 | 114 x 357mm)
H: 3 ⅞”
(100mm)
Joint Space: 6.25mm
Void %: 5.8%
Built for performance, heavy-duty pavers deliver exceptional load-bearing capacity for high-traffic and industrial areas. Available in both standard and permeable options, they’re engineered to withstand heavy vehicles and demanding conditions without compromising design aesthetics.
Load Lock™ – 12 x 24″
(300 x 600mm)
H: 3 ⅞”
(100mm)
12 x 12″
(300 x 300mm)
H: 3 ⅞”
(100mm)
Load Lock™ – 12 x 12″
(300 x 300mm)
H: 3 ⅞”
(100mm)
6 x 12″
(150 x 300mm)
H: 3 ⅞”
(100mm)
Load Lock™ – 6 x 12″
(150 x 300mm)
H: 3 ⅞ or 6″
(100 or 150mm)
4 x 12″
(100 x 300mm)
H: 3 ⅞”
(100mm)
Load Lock™ – 4 x 12″
(100 x 300mm)
H: 3 ⅞”
(100mm)
3 x 12″
(75 x 300mm)
H: 3 ⅞”
(100mm)
8 x 8″
(200 x 200mm)
H: 2 ¾”
(70mm)
4 x 8″
(100 x 200mm)
H: 2 ¾ or 3 ⅛”
(70 or 80mm)
6 x 6″
(150 x 150mm)
H: 2 ¾”
(70mm)
Hex – 8″
(200 x 200mm)
H: 2 ¾”
(70mm)
Optiloc™
(260 x 260mm)
H: 3 ⅛”
(80mm)
Permeable – 12 x 12″
(300 x 300mm)
H: 3 ⅞”
(100mm)
Joint Space: 7mm
Void %: 4.84%
Permeable – 3 x 12″
(75 x 300mm)
H: 3 ⅞”
(100mm)
Joint Space: 7mm
Void %: 10.12%
Eco-Priora™ – 10 x 10″
(240 x 240mm)
H: 3 ⅛”
(80mm)
Joint Space: 7mm
Void %: 4.6%
Eco-Priora™ – 5 x 10″
(120 x 240mm)
H: 3 ⅛”
(80mm)
Joint Space: 7mm
Void %: 6.8%
Eco-Priora™ – 5 x 5″
(120 x 120mm)
H: 3 ⅛”
(80mm)
Joint Space: 6mm
Void %: 12.8%
Permeable Hex – 8″
(205 x 205mm)
H: 3 ⅛”
(80mm)
Joint Space: 10mm
Void %: 4.2%
Eco-Optiloc™
(250 x 250mm)
H: 3 ⅛”
(80mm)
Joint Space: 12mm
Void %: 7.3%
Ideal for pedestal installation, roof deck slabs offer a durable surfacing solution for rooftop decks, patios, and terraces. Available in large-format sizes, they allow designers to create functional, visually cohesive outdoor spaces in elevated settings.
22 ½ x 37 ½”
(570 x 950mm)
H: 2 ⅜”
(60mm)
18 x 36″
(450 x 900mm)
H: 2 ⅜”
(60mm)
21 x 35 ½”
(540 x 900mm)
H: 2 ⅜”
(60mm)
15 x 30″
(375 x 750mm)
H: 2 ⅜”
(60mm)
24 x 24″
(600 x 600mm)
H: 2 ⅜”
(60mm)
18 x 24″
(450 x 600mm)
H: 2 ⅜”
(60mm)
Grenada White
SRI 52 | SR 0.45
Polar Sky
Polar Storm
Arctic Tundra
Winter Marvel
SRI 38 | SR 0.35
Summer Wheat
SRI 42 | SR 0.48
Coastal Shore
Emerald Beach
Sandy Sea Glass
Harvest Brown
Autumn Sunset
SRI 32 | SR 0.30
Summer Rose
SRI 28 | SR 0.27
French Grey
SRI 17 | SR 0.18
Starry Night
Urban Nightfall
Midnight Sky
SRI 15 | SR 0.17
*Colors may vary by plant of manufacture. Final product selection should be made with full size samples and mock-ups. Contact your Unilock representative for details.
Pavers: Unilock meets and exceeds ASTM C936 – Standard Specifications for Solid Concrete Interlocking Paving Units using test methods conforming to:
- ASTM C1645 for Freeze Thaw Durability <225g/m2
- C140 for Compressive Strength >8000 psi and Absorption <5%
- C418 for Abrasion Resistance
Slabs: Unilock meets and exceeds ASTM C1782 – Standard Specification for Segmental Concrete Paving Slabs using test methods conforming to:
- ASTM C1645 for Freeze Thaw Durability <225g/m2
- C140 for Compressive Strength >8000 psi , Flexural Strength >725 psi, and Absorption <5%
- C418 for Abrasion Resistance
Unilock products can help you earn points toward LEED certification for your projects with their sustainable characteristics and documentation. See LEED v4.1 for more specific project site details when calculating credits.
Potential LEED Credits for Using Unilock Non-Permeable Pavers
LEED BD+C: New Construction – LEED v4.1
- Materials and Resources
- Sourcing of Raw Materials: Responsible Sourcing of Raw Materials – Recycled Content
- Material Ingredients: Option 1. Material Ingredient Reporting – Health Product Declaration
- Environmental Product Declarations: Option 1. Environmental Product Declaration (EPD)
- Sustainable Sites
- Heat Island Reduction: Option 1. Nonroof and Roof
Potential LEED Credits for Using Unilock Permeable Pavers
- Materials and Resources
- Sourcing of Raw Materials: Responsible Sourcing of Raw Materials – Recycled Content
- Material Ingredients: Option 1. Material Ingredient Reporting – Health Product Declaration
- Environmental Product Declarations: Option 1. Environmental Product Declaration (EPD)
- Sustainable Sites
- Rainwater Management: Option 1. Percentile of Rainfall Events
- Heat Island Reduction: Option 1. Nonroof and Roof
Umbriano brings a depth of character that goes beyond standard paving textures. Through a random dispersion of granite particles and pigments, it achieves a flecked appearance that mirrors the organic unpredictability of nature. More than just durable and tactile, this texture has the flexibility to connect your paver specification to the broader palette of your design, drawing inspiration from the surrounding community, the natural environment, or your own imagination. By collaborating with your Unilock Representative, you can develop specialty color blends by selecting your preferred base color and accent flecks.
View our latest speciality-formulated Umbriano colors and see what’s possible for your next project.
Every project is unique, and we’re here to help bring your vision to life. If you don’t find exactly what you’re looking for in our current selection of paver shapes, sizes, and textures, our team can work with you to create a fully customized paving solution.
Your Unilock representative is here to support you at every stage of your design process. Whether you need expert advice, product recommendations, or samples, we’re just a call or click away. Find your local representative and connect by phone or email, or submit a request using one of our online forms.
