Wind Uplift Slabs
Unilock Wind Uplift Slabs are a key component of the SkyView Wind Uplift System. These patent-pending, 2″ thick concrete slabs work in combination with the SkyView Wind Uplift Kit and either SkyView Pedestals or Wind Waffles to create a rafted paving surface that resists uplift forces. Available in a wide range of finishes and colors, they also provide the creative flexibility needed to meet your design vision in high-wind environments.
At Unilock, we’re moving beyond our traditional product families and introducing a new way to explore our roof deck slabs — one that starts with finish. The textures and surfaces now take center stage, defining the final look and feel of every Product Family.
Explore products below to see the available shape and color options for wind uplift slabs slabs.
Wind Uplift - 24 x 24"
604.8 x 604.8mm
H: 2” (51mm)
Wind Uplift - 24 x 36"
604.8 x 909.6mm
H: 2” (51mm)
*Offered with a false joint at 24″
* False Joint at 24”
Sterling
SRI 46 | SR 0.41
Sandy Beige
SRI 42 | SR 0.38
Chamois
SRI 46 | SR 0.41

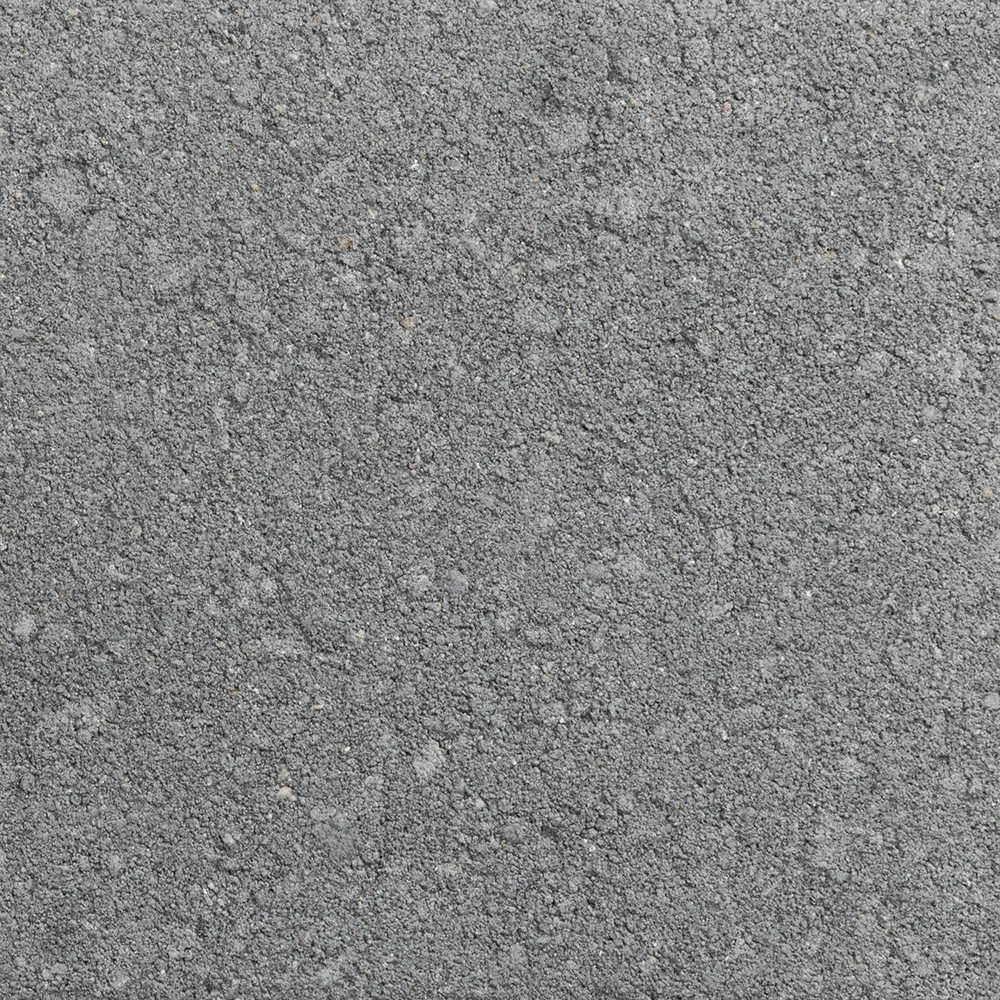

Silver Grey
SRI 37 | SR 0.34
Wind Uplift - 24 x 24"
604.8 x 604.8mm
H: 2” (51mm)
Wind Uplift - 24 x 36"
604.8 x 909.6mm
H: 2” (51mm)
*Offered with a false joint at 24″
* False Joint at 24”
Sterling
Sandy Beige
Chamois
Silver Grey
Wind Uplift - 24 x 24"
604.8 x 604.8mm
H: 2” (51mm)
Wind Uplift - 24 x 36"
604.8 x 909.6mm
H: 2” (51mm)
*Offered with a false joint at 24″
* False Joint at 24”
Sterling
Sandy Beige
Chamois
Silver Grey
Unilock meets and exceeds ASTM C1782 – Standard Specification for Segmental Concrete Paving Slabs using test methods conforming to:
- ASTM C1645 for Freeze Thaw Durability <225g/m2
- C140 for Compressive Strength >8000 psi , Flexural Strength >725 psi, and Absorption <5%
- C418 for Abrasion Resistance
Unilock products can help contribute to earning points toward LEED certification for your projects. See LEED v5 for more specific project site details when calculating credits.
LEED BD+C: New Construction – LEED v5
Materials and Resources
- Quantify and Assess Embodied Carbon
- Reduce Embodied Carbon – Option 2. Environmental Product Declaration (EPD) Analysis
Sustainable Sites
- Accessible Outdoor Space
- Enhanced Resilient Site Design
- Heat Island Reduction: Option 1. Nonroof and Roof
LEED O+M: Existing Buildings
Sustainable Sites
- Heat Island Reduction: Option 1. Nonroof and Roof
Didn’t find what you were looking for? Explore the other products available in our SkyView Roof Deck System.

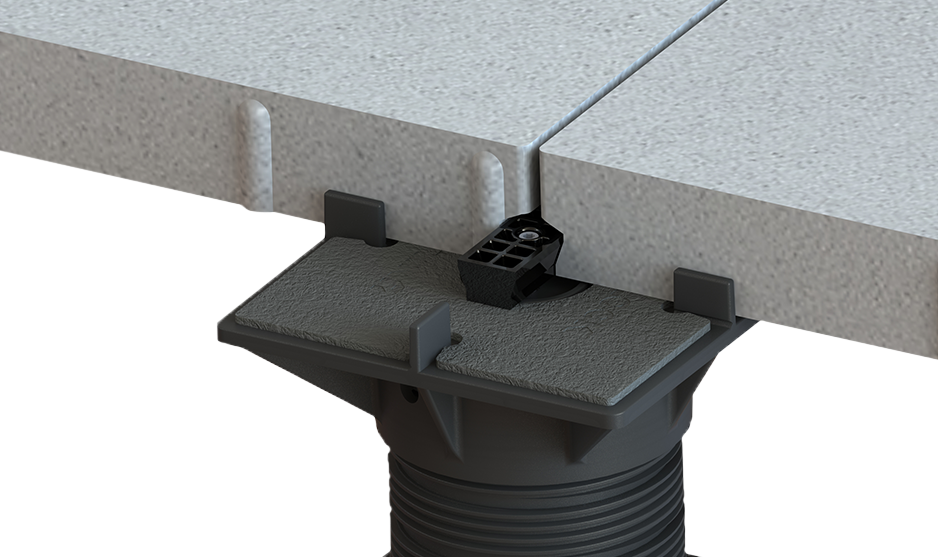

Wind is a major concern for rooftop pedestal systems, especially in high-rise or open coastal environments. As wind moves across and around buildings, it creates uplift forces that can displace or destabilize traditional slabs. Unilock Wind Uplift Slabs are specifically designed to address this challenge. Manufactured with an undercut channel on two opposing sides, these slabs integrate seamlessly with the SkyView Wind Uplift Kit. The result is a rafted, interlocking surface that resists uplift forces, keeping every slab locked firmly in place, even under extreme wind conditions.
In addition to its engineered performance, the Unilock Wind Uplift Slabs offer an aesthetic advantage. While other wind solutions often rely on surface-mounted clips or fasteners, the tie-down mechanism from the SkyView Wind Uplift System remains entirely concealed by the undercut channel of the slabs. This delivers a clean, uninterrupted surface that doesn’t compromise on safety or stability.
Benefits of Unilock Wind Uplift Slabs
2" thickness for reduced weight, easier material handling and decreased shipping costs
Continuous undercut channel enhances design flexibility, allowing for the installation of running bond patterns at multiple offsets
When on-site cutting is required, the functionality of the system remains without the need for additional fabrication to the slab
Component Features & Functions
