U-cara^® Backer

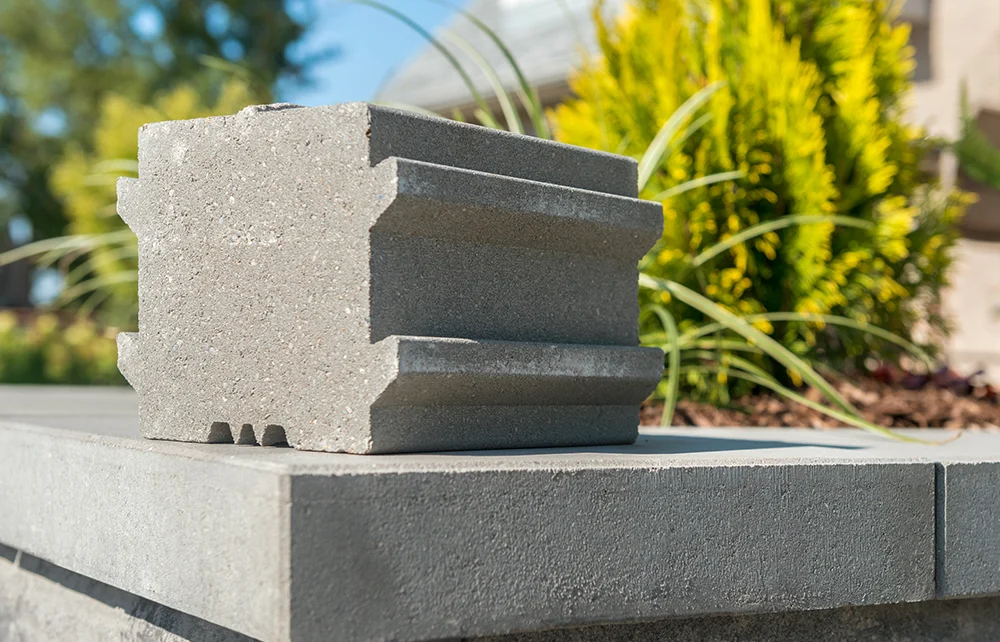

The U-Cara Backer is the structural backbone of the U-Cara Multi-Face Wall System, enabling the creation of single- or double-sided vertical elements such as walls, planters, fire features, and more. Each block features molded horizontal Sure Track® rails that securely support U-Cara Fascia Panels, unlocking design flexibility through a wide range of color, pattern, and texture combinations.

QUICK DOWNLOADS

Cut Sheet

Specifications

REQUEST PRODUCT INFORMATION SAVE TO
PROJECTS

Facebook

Twitter

UNITS & SIZES

COLORS

RESOURCES

STANDARDS & LEED

WALL UNITS

Wall units function as modular components that are stacked to build the height and structure of a wall.

INDIVIDUAL UNITS

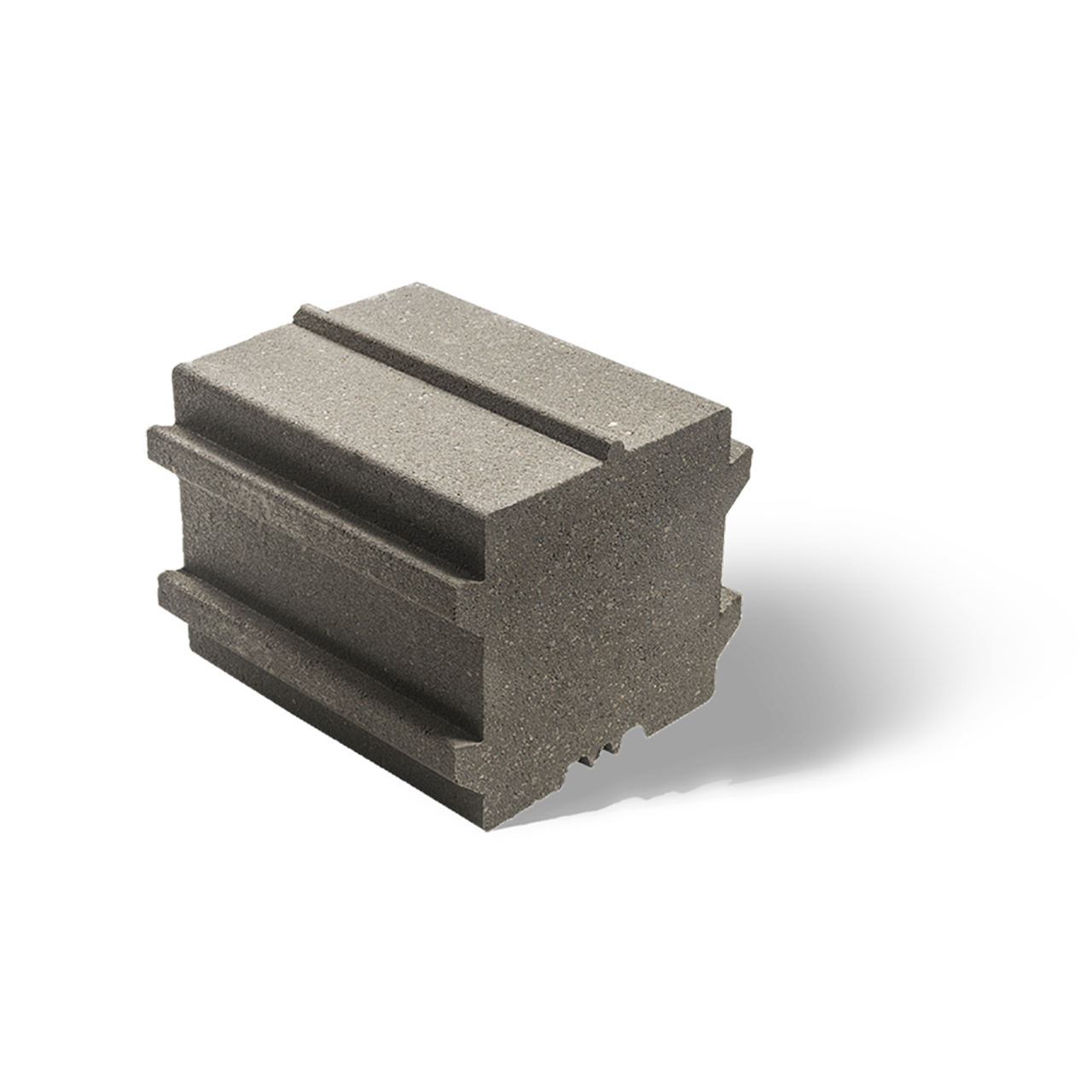

STANDARD BACKER
7 7/8 x 5 7/8 x 5 7/8"
(200 x 150 x 150mm)

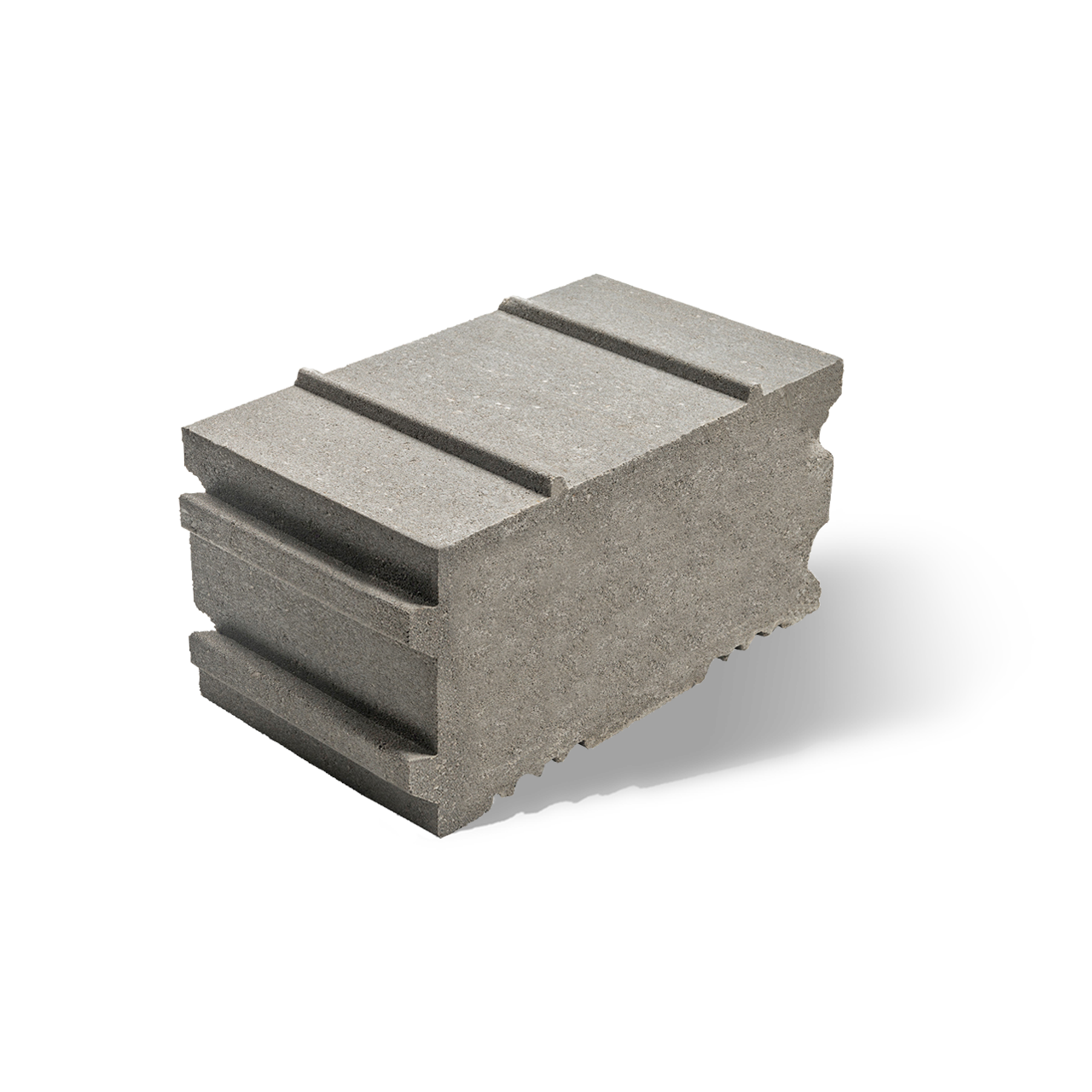

LARGE BACKER
7 7/8 x 11 5/8 x 5 7/8"
(200 x 294 x 150mm)

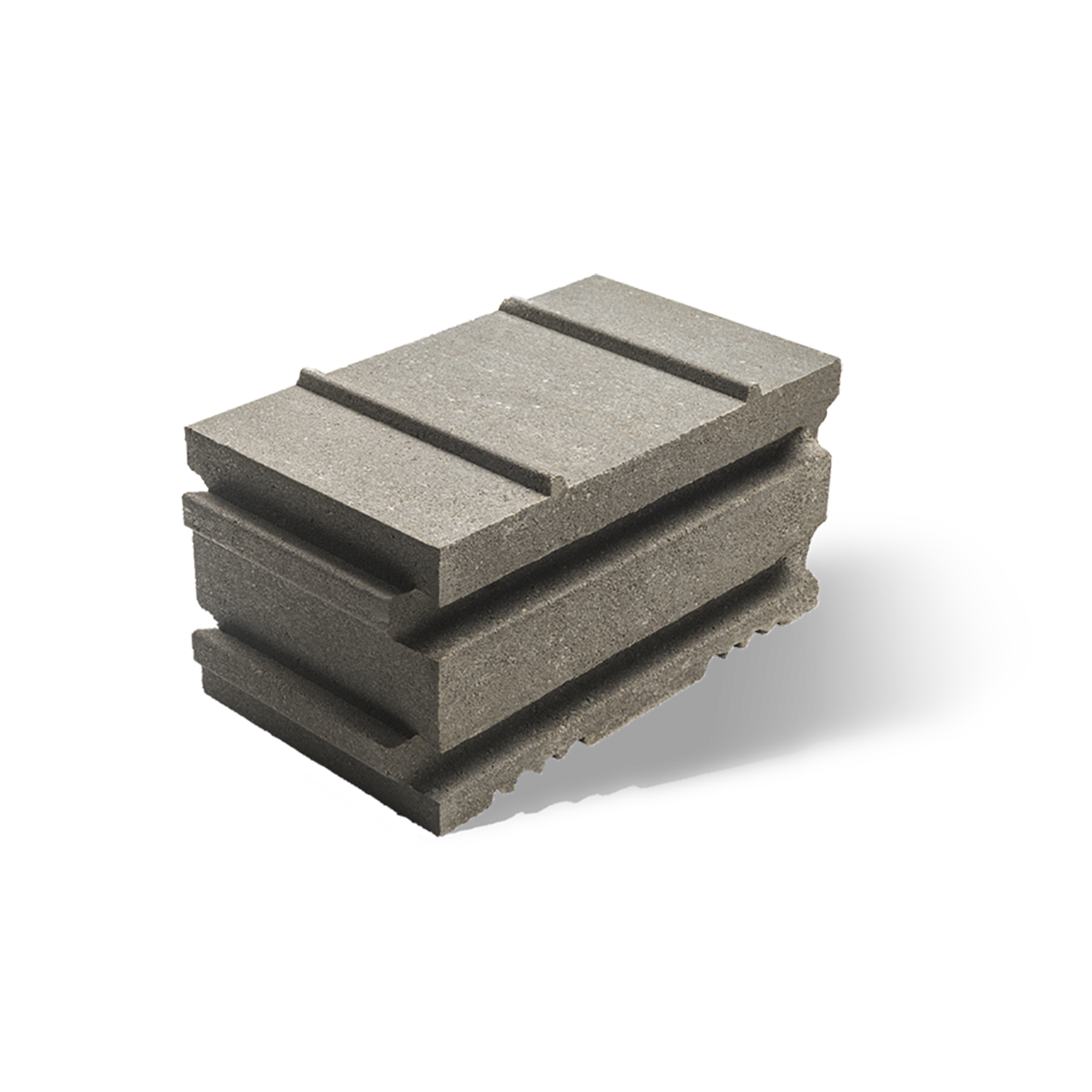

LARGE/CORNER/PILLAR BACKER
6 7/8 x 11 5/8 x 5 7/8"
(175 x 294 x 150mm)

NATURAL

*Colors may vary by plant of manufacture. Final product selection should be made with full size samples and mock-ups. Contact your Unilock representative for details.

CROSS SECTIONS

U-Cara Grid Reinforced 3-1 Slope Load 3.7ft 1.14m

.PDF

Facebook

Twitter

U-Cara Grid Reinforced 3-1 Slope Load 4.2ft 1.27m

.PDF

Facebook

Twitter

U-Cara Grid Reinforced 3-1 Slope Load 4.7ft 1.42m

.PDF

Facebook

Twitter

U-Cara Grid Reinforced 3-1 Slope Load 5.2ft 1.57m

.PDF

Facebook

Twitter

U-Cara Grid Reinforced 3-1 Slope Load 5.6ft 1.72m

.PDF

Facebook

Twitter

U-Cara Grid Reinforced 3-1 Slope Load 6.1ft 1.87m

.PDF

Facebook

Twitter

U-Cara Grid Reinforced 3-1 Slope Load 6.6ft 2.02m

.PDF

Facebook

Twitter

U-Cara Grid Reinforced 3-1 Slope Load 7.1ft 2.17m

.PDF

Facebook

Twitter

U-Cara Grid Reinforced 3-1 Slope Load 7.6ft 2.32m

.PDF

Facebook

Twitter

U-Cara Grid Reinforced 3-1 Slope Load 8.1ft 2.47m

.PDF

Facebook

Twitter

LOAD MORE CROSS SECTIONS & DETAILS

SUSTAINABILITY DOCUMENTS

101.1 EPD Unilock DRYCAST

.PDF

Facebook

Twitter

SDS

Unilock Masonry Unit SDS US 022516 FINAL.pdf

.PDF

Facebook

Twitter

SPECIFICATIONS

32-32-23-SRW-U-Cara-Wall-System.pdf

.PDF .DOCX log in

Facebook

Twitter

ASTM STANDARDS

Unilock meets and exceeds: ASTM C1372 - Standard Specifications for Dry-Cast Segmental Retaining Wall Units using test methods conforming to ASTM C1262 for Freeze Thaw Durability <1.5% and ASTM C140 for Compressive Strength > 3000psi and Absorption <7lb/ft2. NCMA Zone 3 Recommendations for de-icing salt exposure with Compressive Strength >5500 psi. Sheer strength test data available per ASTM D6916 and ASTM 6638 with geosyntheic reinforcement upon request.

LEED

LEED v4.1 Building Product Disclosure and Optimization – Sourcing of Raw Material - Responsible Sourcing of Raw Material Building Product Disclosure and Optimization – Material Ingredients - Material Ingredient Reporting

U-Cara Backer: Capabilities & Features

Gravity walls up to 3' (1m)

Geogrid reinforced walls up to 10' (3m)

Vertical or 5° battered walls

Straight or curved walls

Interlocking tongue and groove

Strong, solid body design

5,500 PSI minimum

Small-format for hand-placed installation
