SkyView™ Low-Profile Wind Uplift Waffles
Specifically designed for roof deck installations with minimal elevation, SkyView Wind Uplift Waffles are patent-pending, specialized pedestals that raise surfaces from a ½ inch to 2½ inches while helping to combat wind uplift pressure. Their compact, high-strength design provides exceptional stability and load distribution, making them ideal for tight spaces and areas with limited height clearance. These waffles have a threaded insert in the center to allow for the Keyway Lockdown Bar to be secured with the screw.
L: 7", W: 7", H: 0.5"
L: 177.8, W: 177.8, H: 12.7mm
L: 7", W: 7", H: 1"
L: 177.8, W: 177.8, H: 25.4mm
L: 6.5", W: 6.5", H: 0.13"
L: 165.1, W: 165.1, H: 3.3mm
L: 6.5", W: 6.5", H: 0.06"
L: 165.1, W: 165.1, H: 1.6mm
Components:
1 - 1/2” Waffle
1 - Top Pad (optional)
Components:
1 - 1” Waffle
1 - Top Pad (optional)
Components:
1 - ½” Waffle
1 - 1” Waffle
1 - Top Pad (optional)
Components:
2 - 1” Waffle
1 - Top Pad (optional)
Components:
1 - ½” Waffle
2 - 1” Waffle
1 - Top Pad (optional)
Unilock products can help contribute to earning points toward LEED certification for your projects. See LEED v5 for more specific project site details when calculating credits.
LEED BD+C: New Construction – LEED v5: Sustainable Sites – Accessible Outdoor Space
ROOF DECK SYSTEM PRODUCTS
Didn’t find what you were looking for? Explore the other products available in our SkyView Roof Deck System.

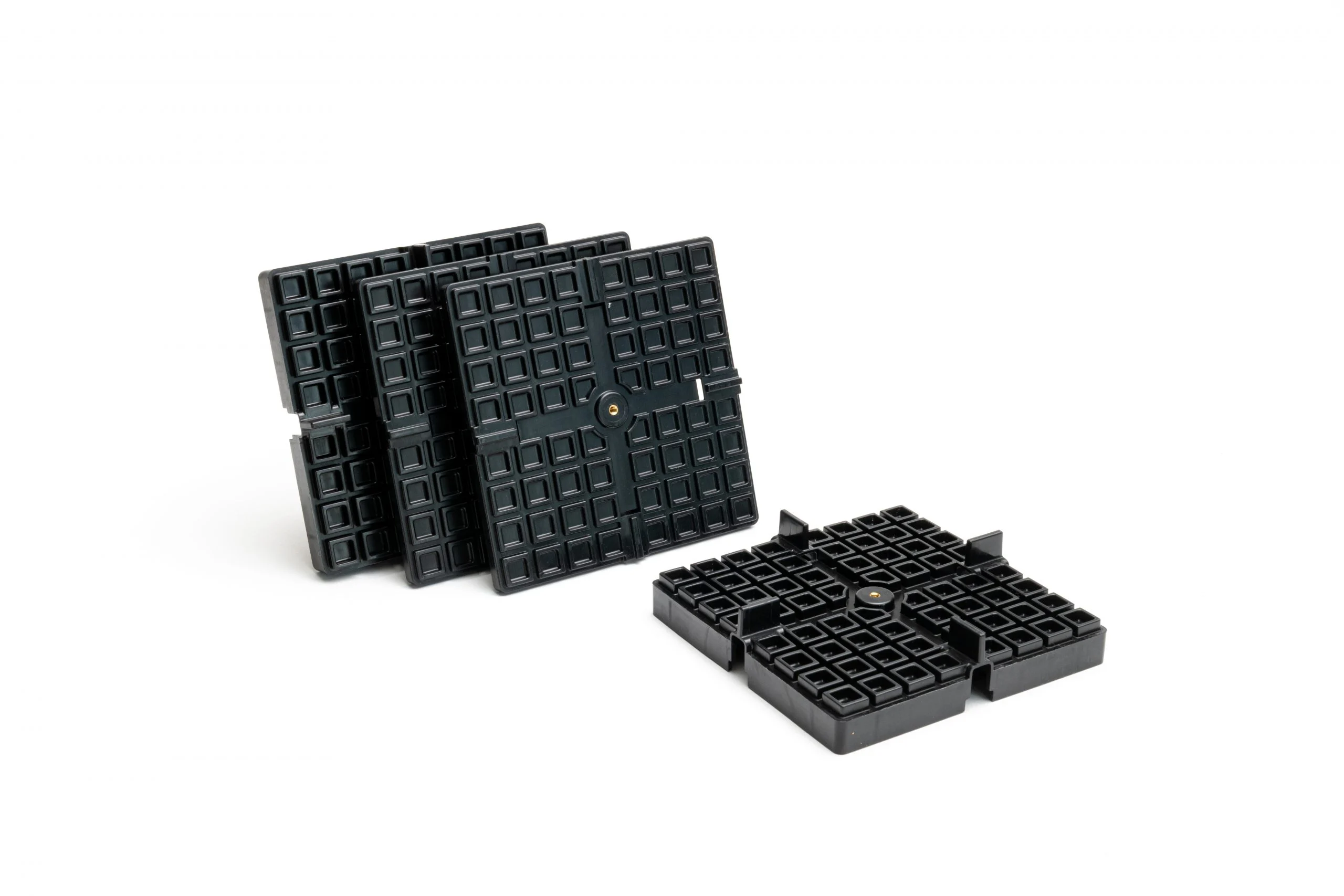

SkyView Low-Profile Wind Uplift Waffles are specialized, stackable pedestals for rooftop deck installations where minimal elevation is needed and wind is a concern. These structural supports get their name from their waffle-like design, which plays a critical, functional role. When stacking multiple waffles to achieve the desired elevation, this pattern creates a secure interlock that prevents shifting and lateral movement, ensuring long-lasting stability beneath surface materials in tight-clearance applications. Meanwhile, the threaded insert in the center of the waffle acts as a securement point for the Keyway Lockdown Bar to be anchored with a screw.
Benefits of SkyView Low-Profile Wind Uplift Waffles
Stackable heights from a ½ inch to 2½ inches
Large footprint to provide stability
Consistent slab alignment with 3/16” spacer tabs
Resistant to water, mold, and freeze/thaw cycles
Manufactured from 90% recycled polypropylene
Made in USA

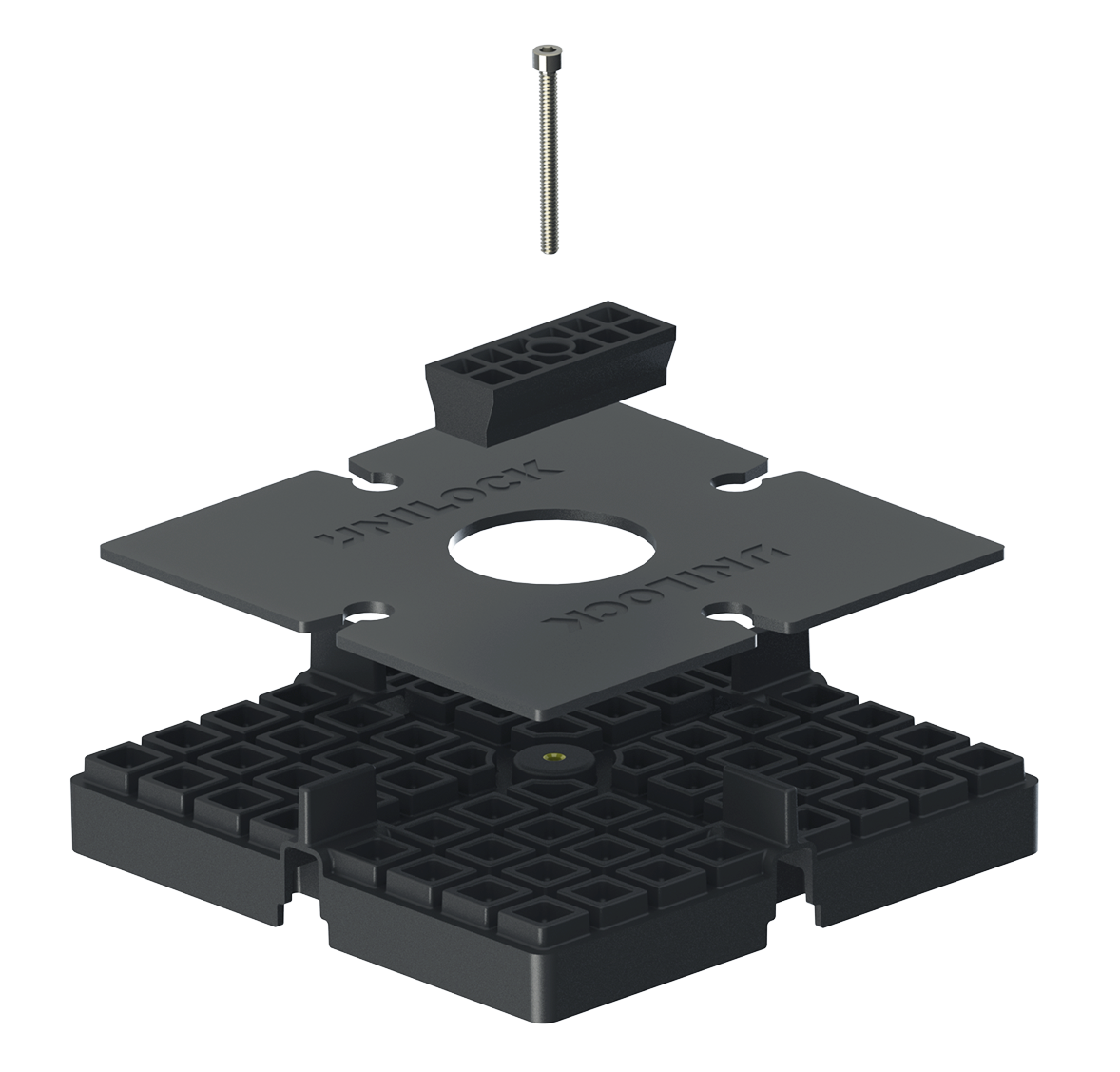

Component Features & Functions
