Rivercrest® Wall
Wall units function as modular components that are stacked to build the height and structure of a wall.
JUMPER UNIT 1
7 7/8" x 4 1/2" x 9 1/2"
(200mm x 114mm x 240mm)
JUMPER UNIT 2/3
12 1/4" x 4 1/2" x 9 1/2"
(310mm x 114mm x 240mm)
JUMPER UNIT 4
16 5/8" x 4 1/2" x 9 1/2"
(420mm x 114mm x 240mm)

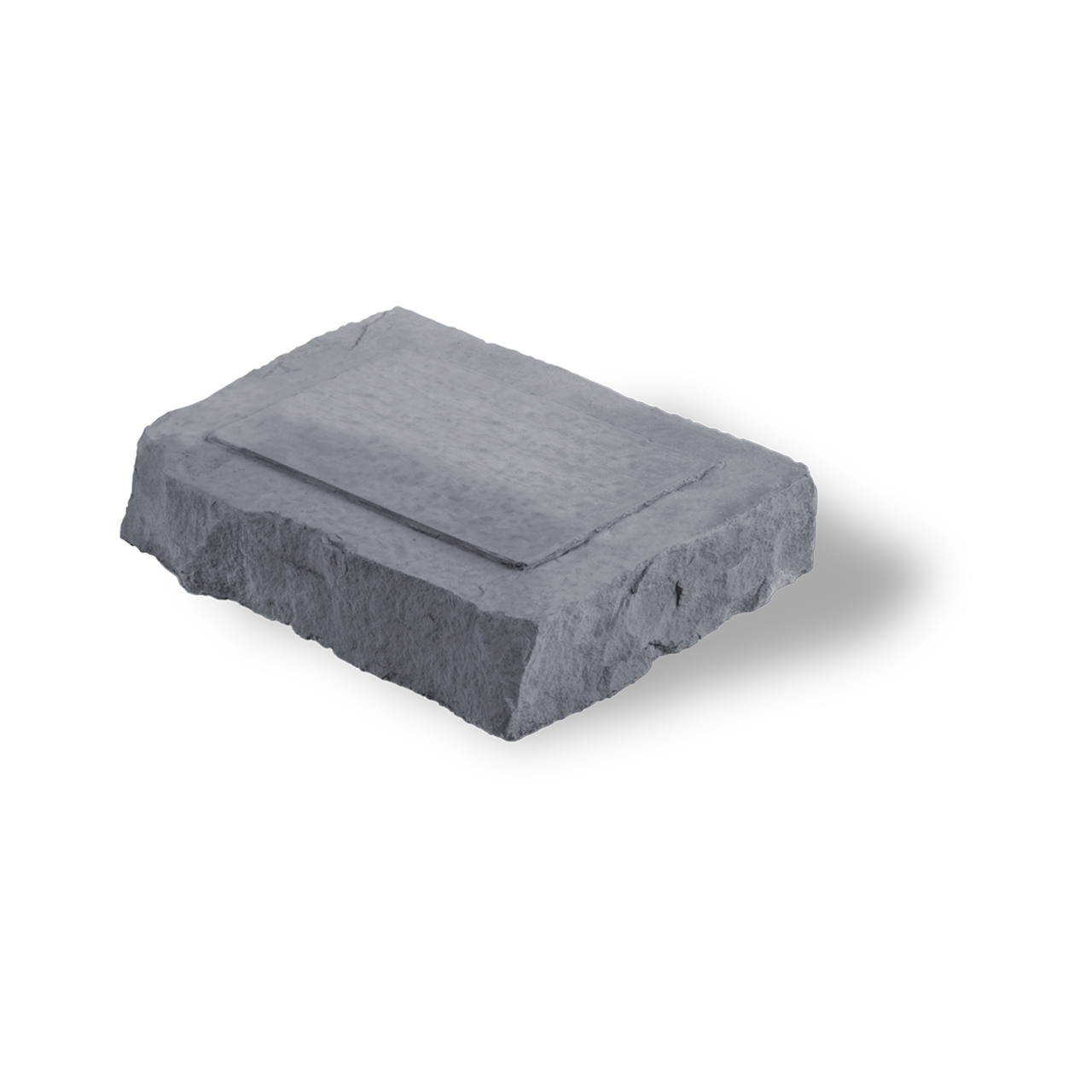

CORNER LONG
17 3/4" x 2 1/4" x 9 7/8"
(450mm x 57mm x 250mm)

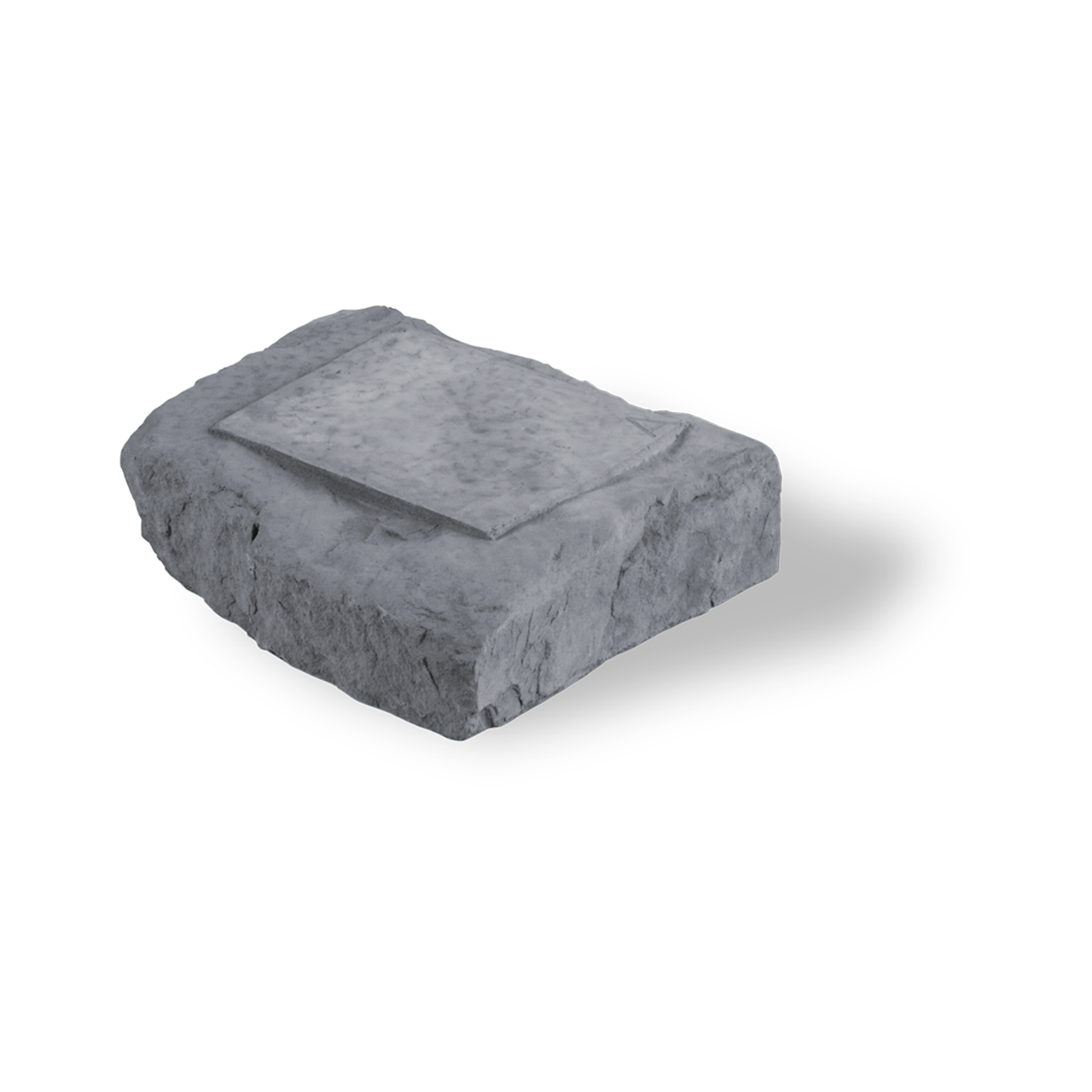

CORNER SHORT
14 7/8" x 2 1/4" x 9 7/8"
(375mm x 57mm x 250mm)

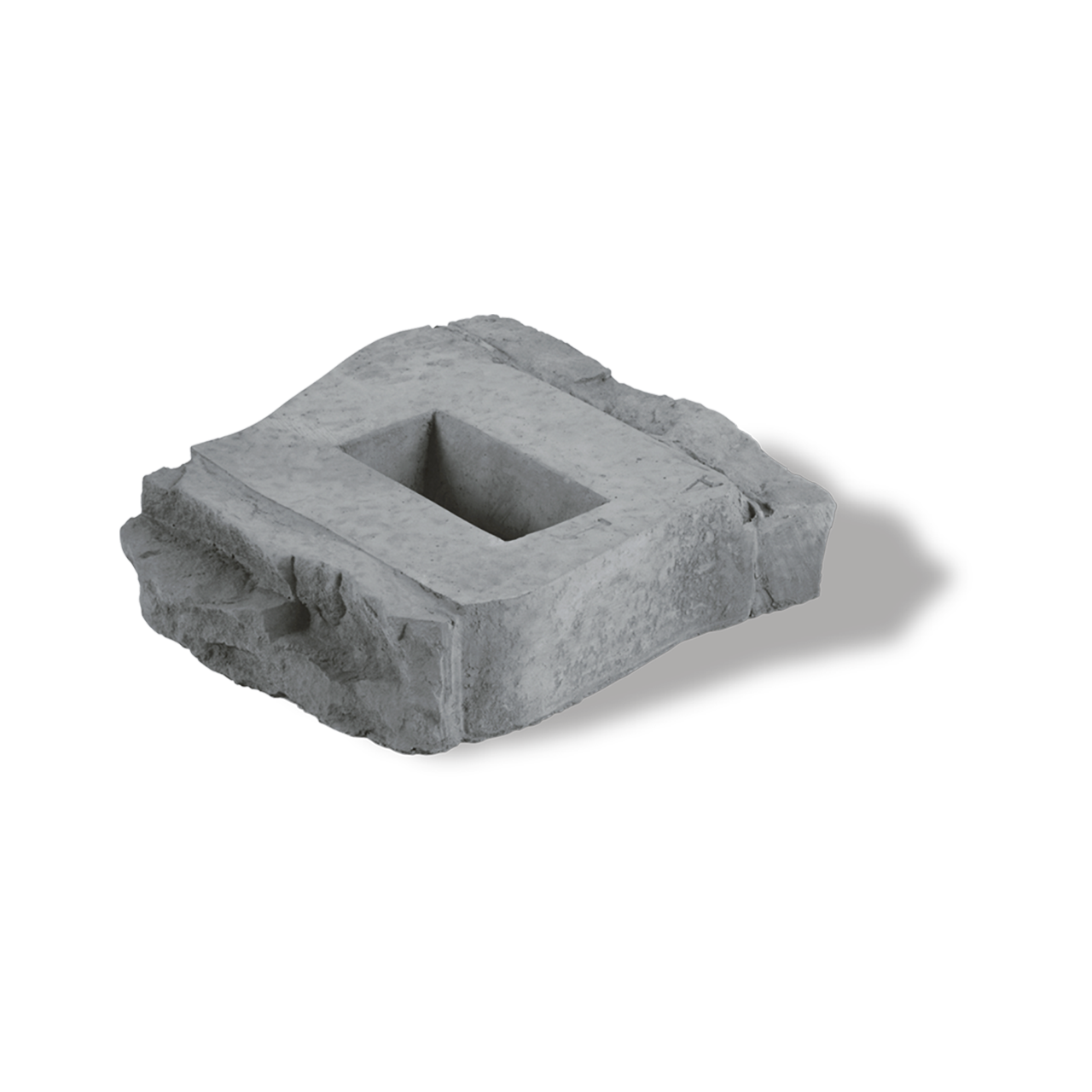

STANDARD UNIT 1
7 7/8" x 2 1/4" x 9 7/8"
(200mm x 57mm x 250mm)

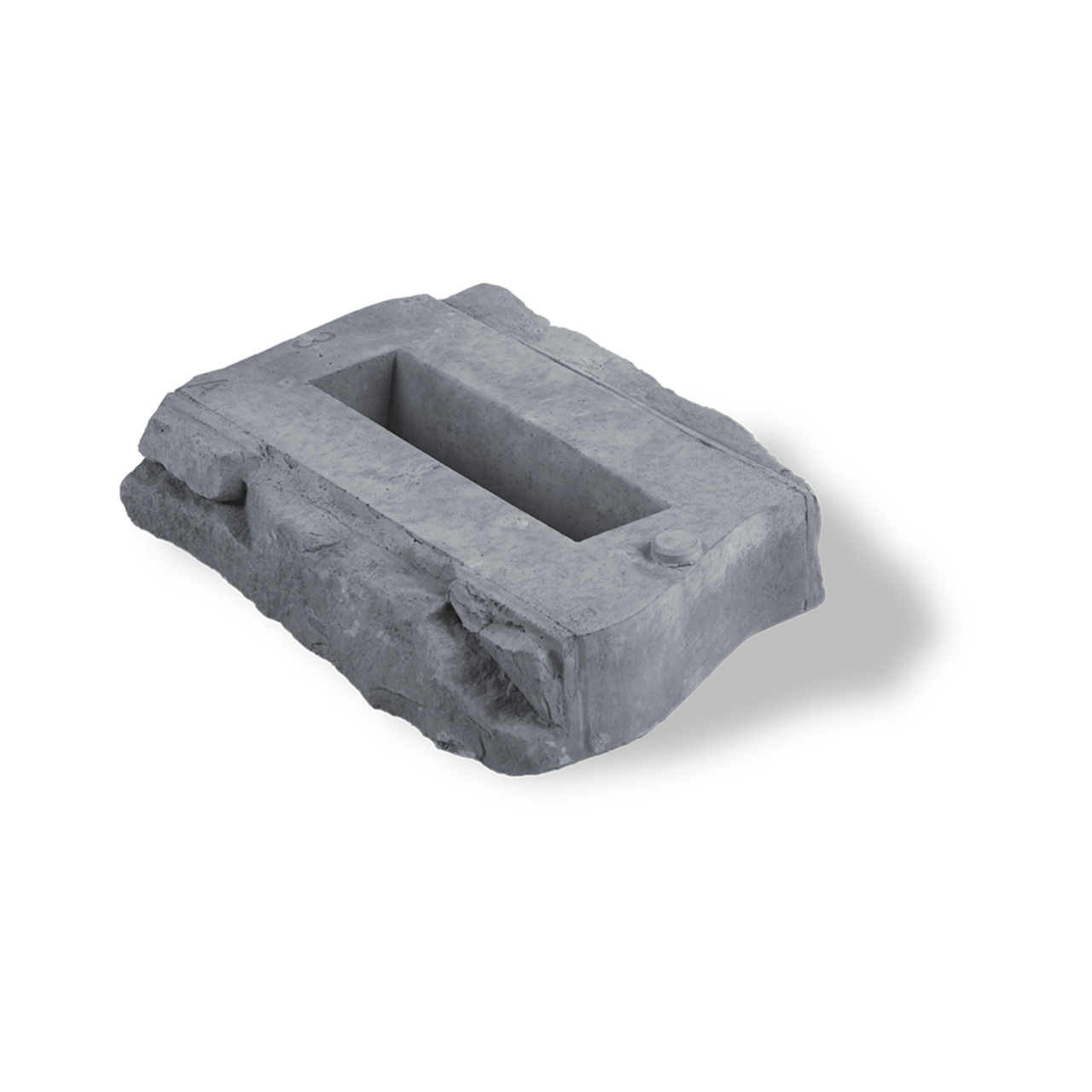

STANDARD UNIT 2
12 1/4" x 2 1/4" x 9 7/8"
(310mm x 57mm x 250mm)

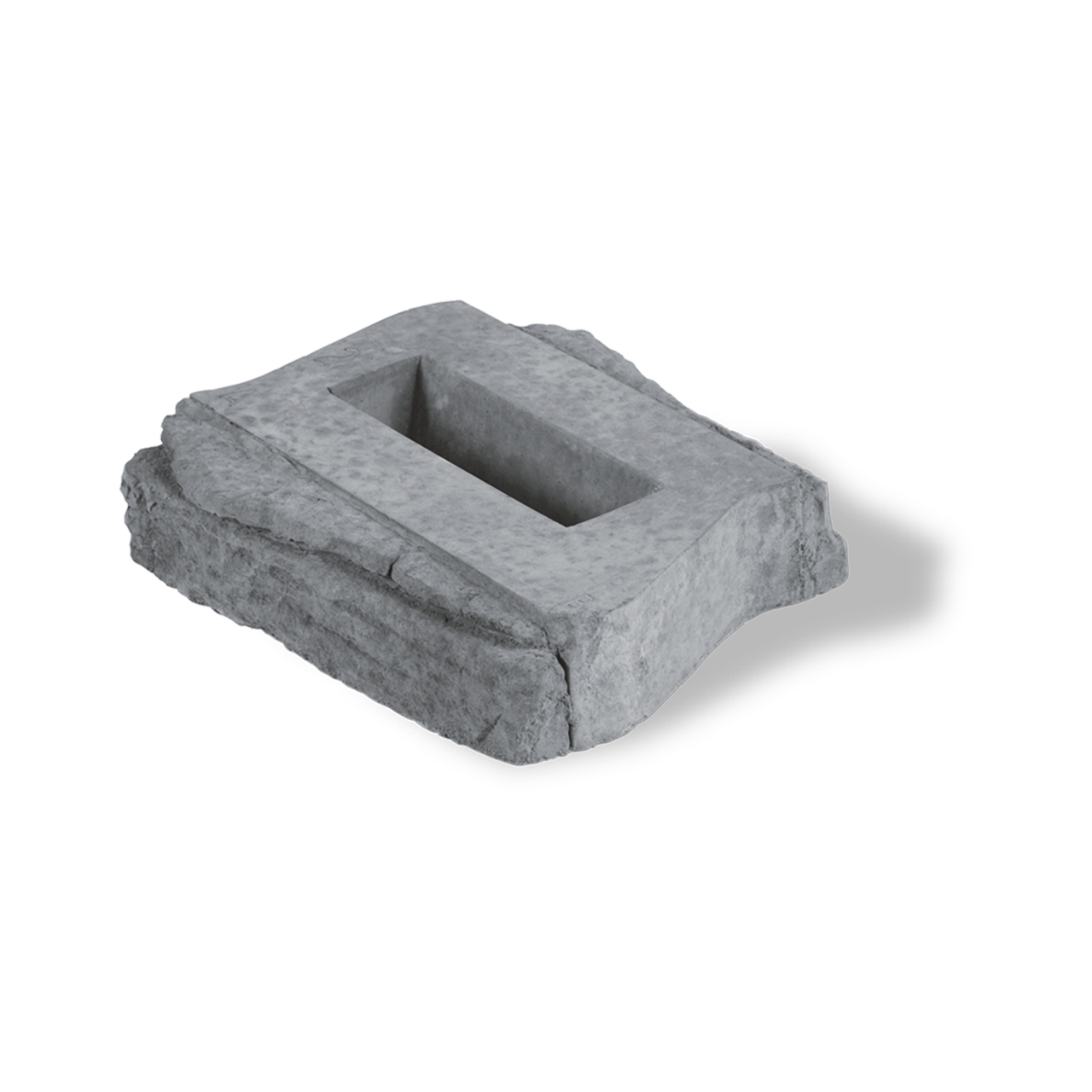

STANDARD UNIT 3
12 1/4" x 2 1/4" x 9 7/8"
(310mm x 57mm x 250mm)

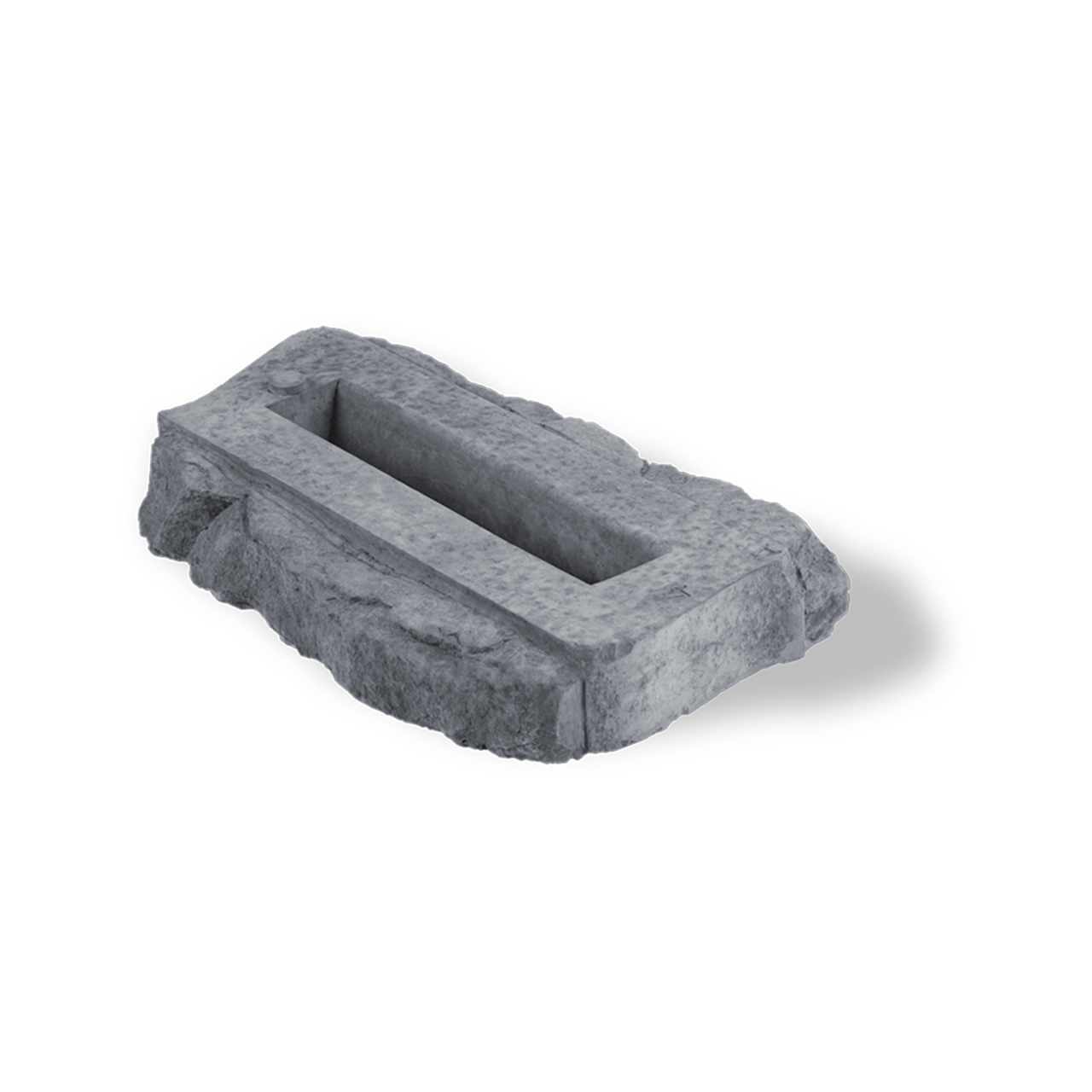

STANDARD UNIT 4
16 3/4" x 2 1/4" x 9 7/8"
(425mm x 57mm x 250mm)

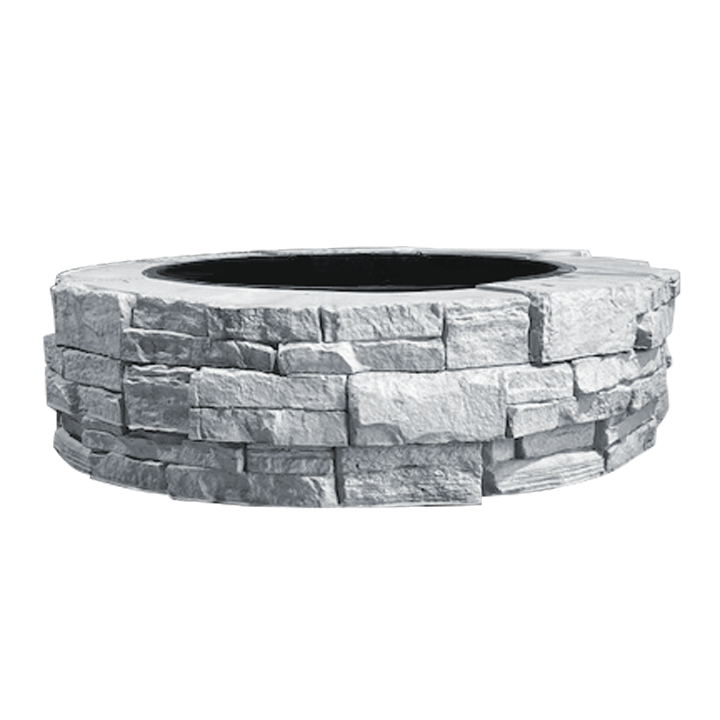

WALL RADIUS
41 3/4 x 8 7/8 x 4 1/2"
(1,060 x 225 x 114mm)

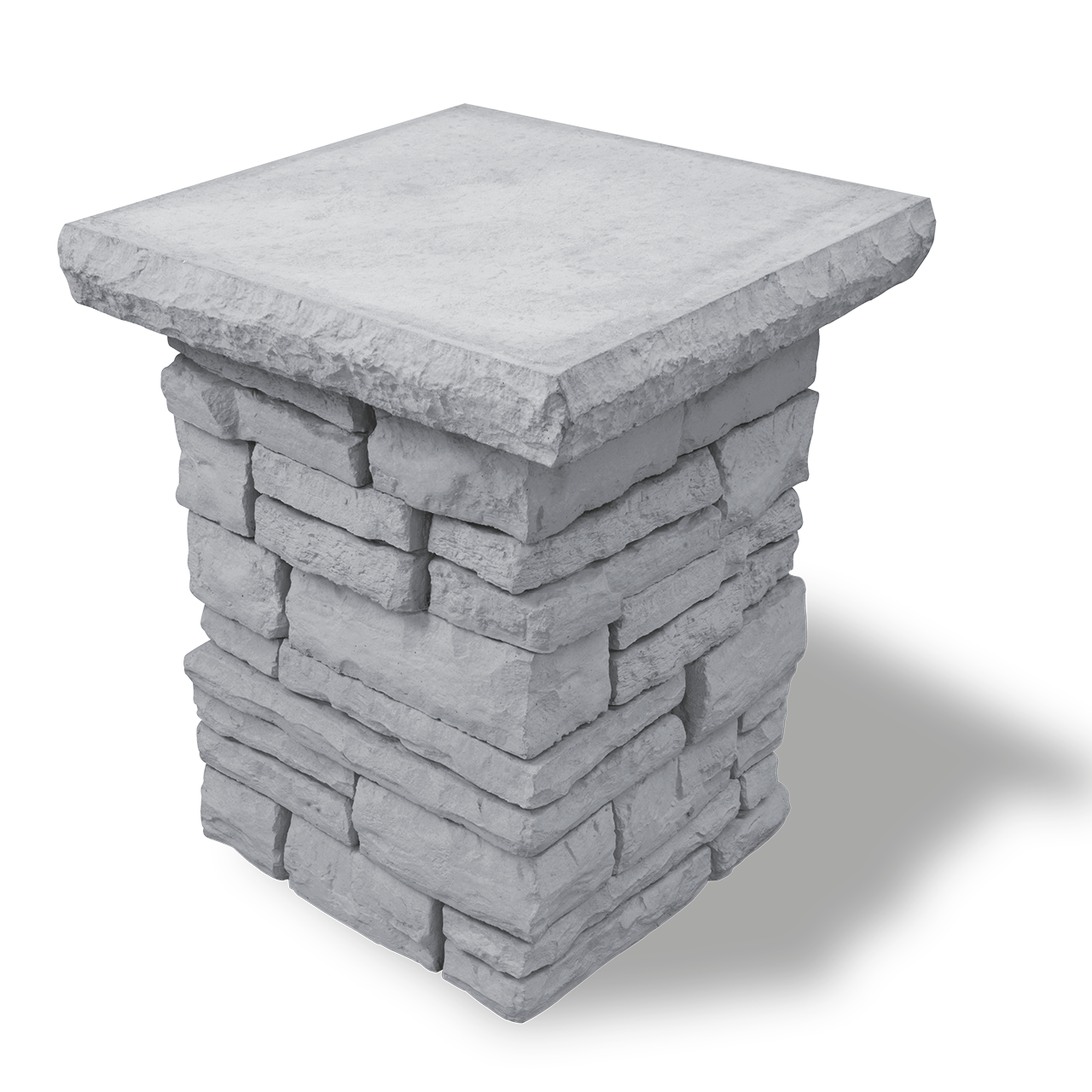

PILLAR UNIT 20"X20"
19 3/4 x 19 3/4 x 4 1/2"
(500 x 500 x 114mm)
CORNER JUMPER
17 3/4 x 9 1/2 x 4 1/2"
(450 x 240 x 114mm)
BUFF
COASTAL SLATE
*Colors may vary by plant of manufacture. Final product selection should be made with full size samples and mock-ups. Contact your Unilock representative for details.

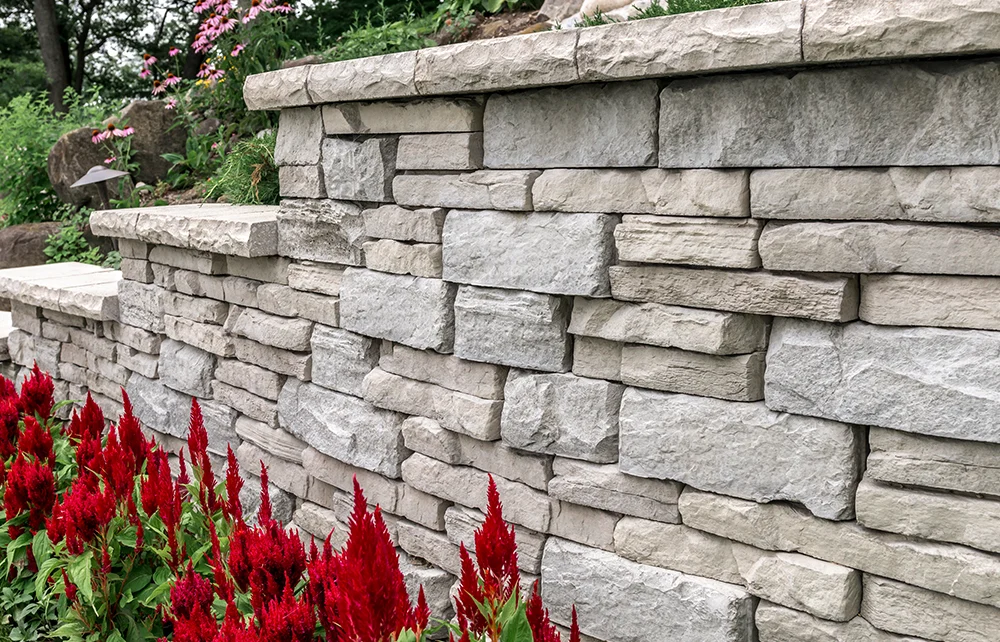

Rivercrest Wall: Capabilities & Features
Gravity walls up to 2' (0.6m)
Geogrid reinforced walls up to 6' (1.8 m)
Vertical walls
Straight or curved walls
5,500 PSI minimum
Small-format for hand-placed installation
