Quarry ™ Smooth

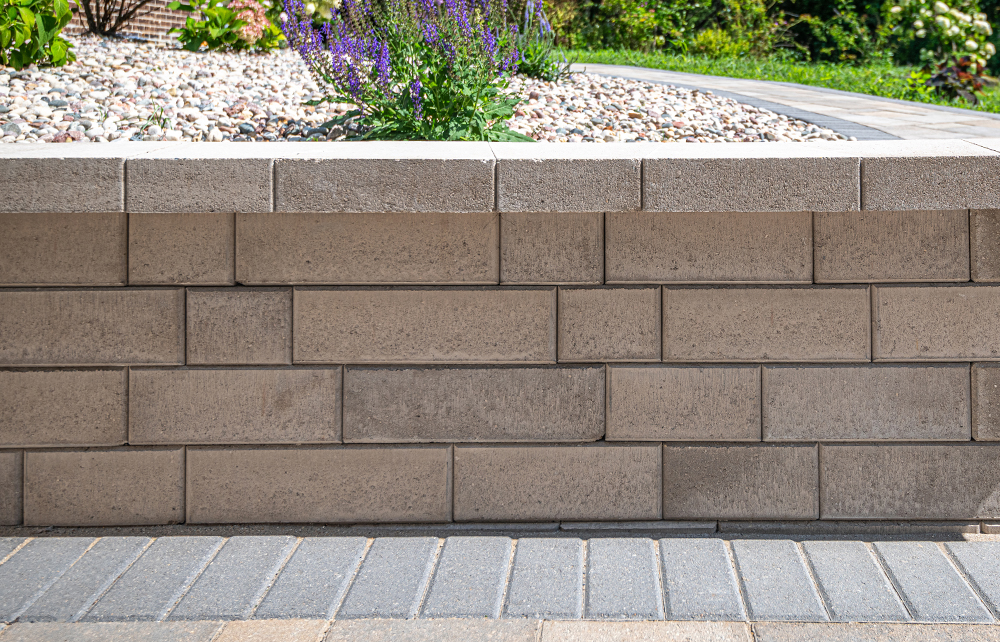

Quarry Smooth has a smoother surface texture compared to its tumbled, antiqued counterpart, while delivering the same timeless appeal in a large-scale format.
QUICK DOWNLOADS
Cut Sheet
UNITS & SIZES
UNITS & SIZES
COLORS
RESOURCES
STANDARDS & LEED
WALL UNITS
Wall units function as modular components that are stacked to build the height and structure of a wall.
RANDOM BUNDLE

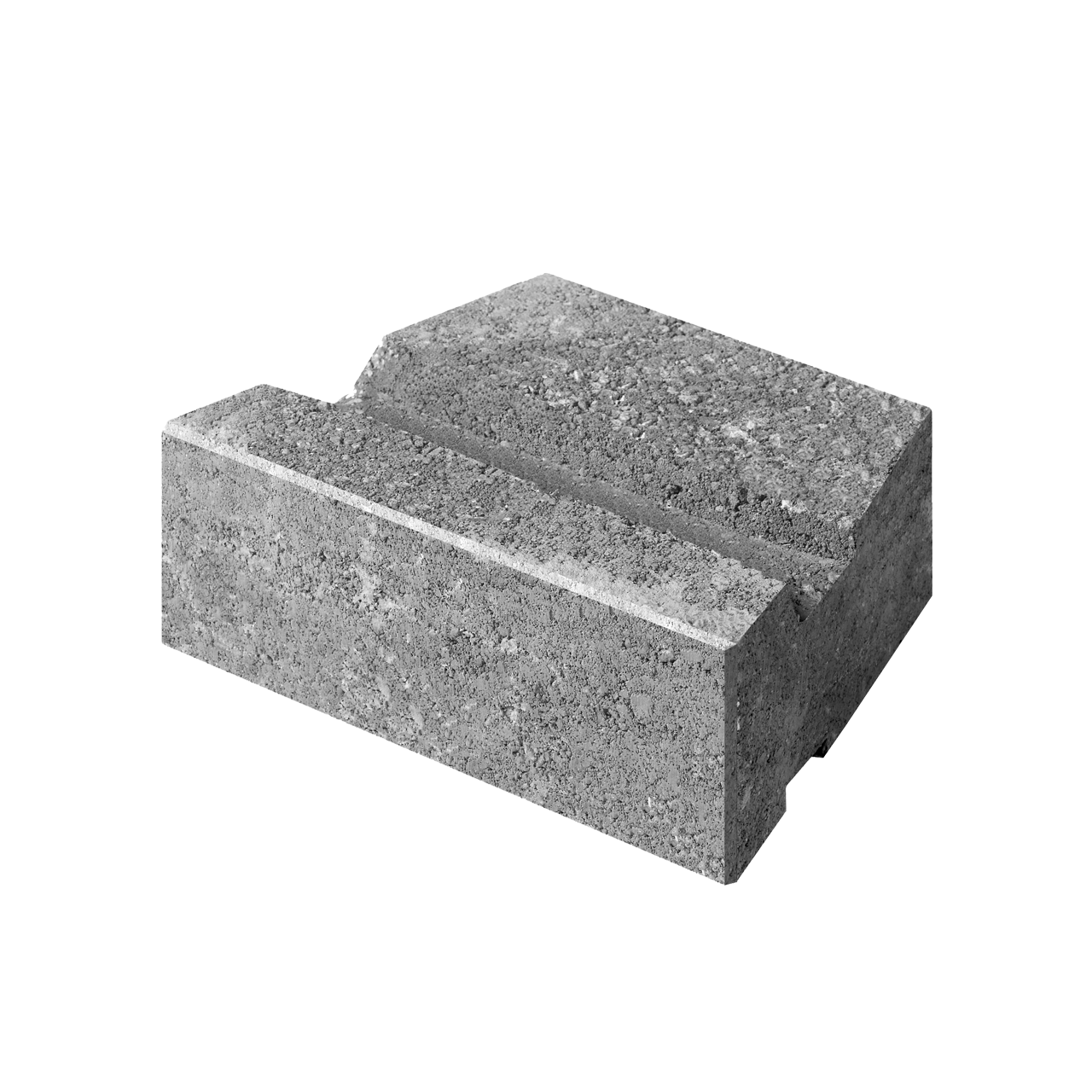

12" UNIT
12" x 4 1/2" x 9"
(304.8mm x 114mm x 228.6mm)

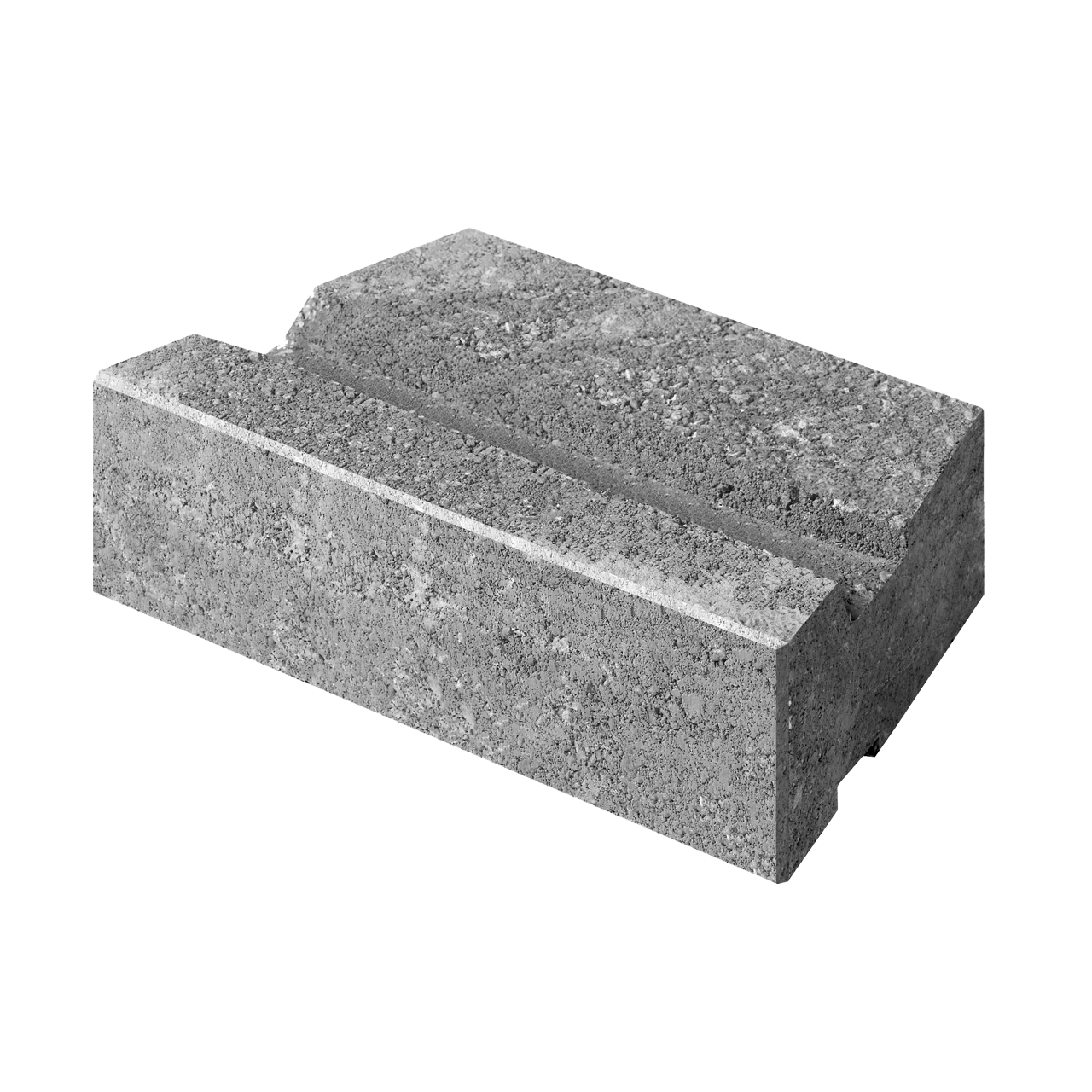

15" UNIT
15" x 4 1/2" x 9"
(381mm x 114mm x 228.6mm)

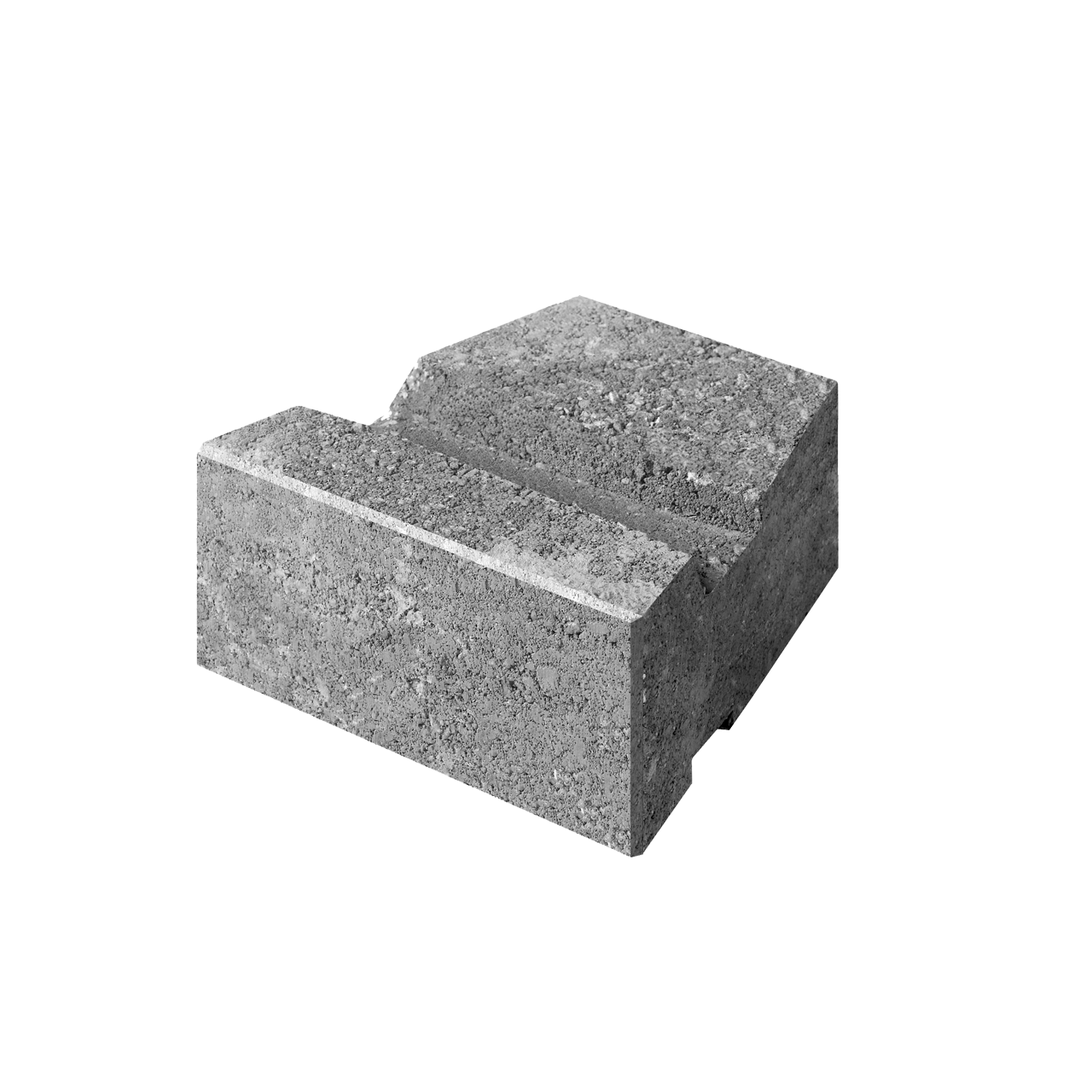

9" UNIT
9" x 4 1/2" x 9"
(228.6mm x 114mm x 228.6mm)
INDIVIDUAL UNITS

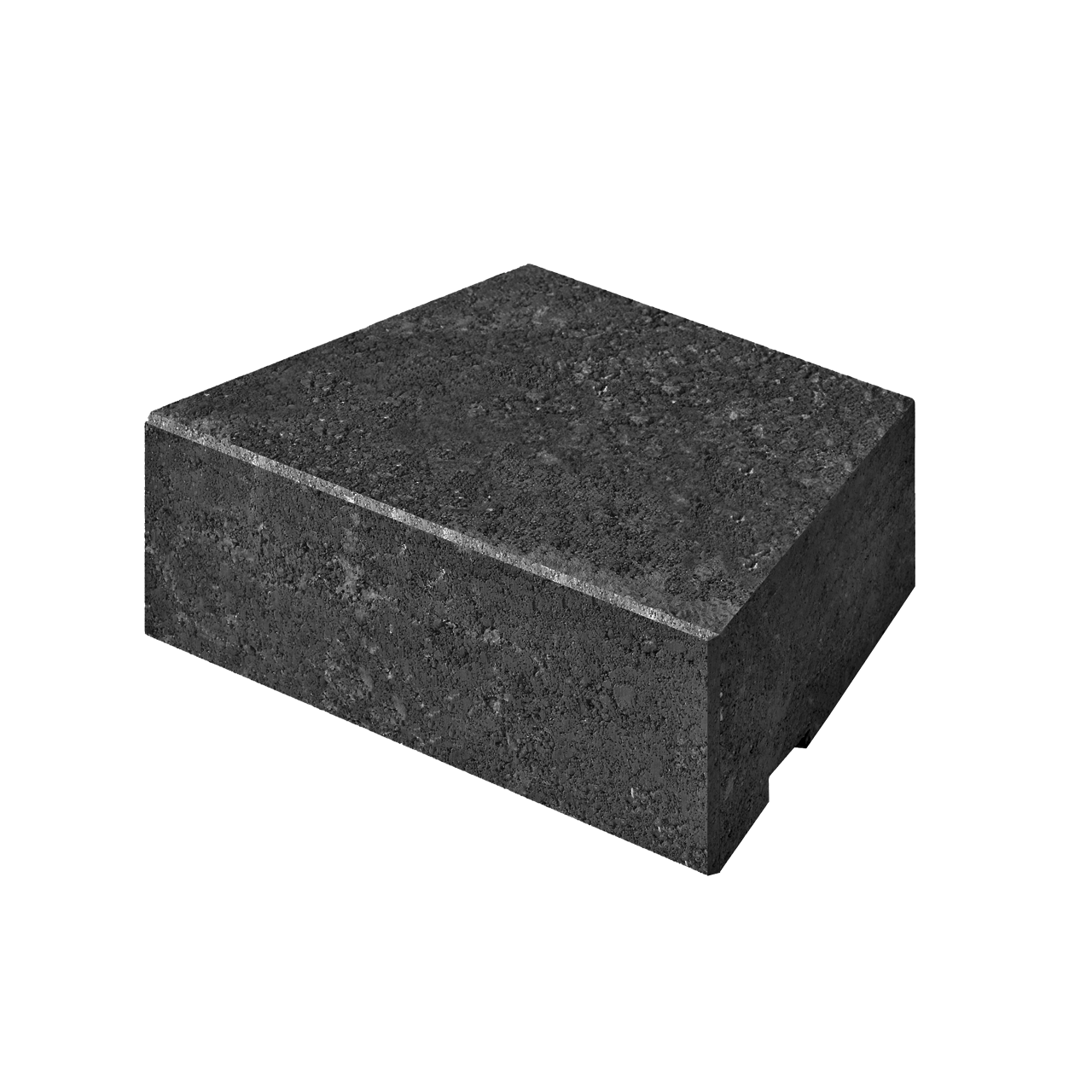

CORNER
12 x 9 x 4 1/2"
(306.6 x 228.6 x 114mm)
MIDNIGHT CHARCOAL
NATURAL GREY
SANDSTONE
*Colors may vary by plant of manufacture. Final product selection should be made with full size samples and mock-ups. Contact your Unilock representative for details.
ASTM STANDARDS
Unilock meets and exceeds: ASTM C1372 - Standard Specifications for Dry-Cast Segmental Retaining Wall Units using test methods conforming to ASTM C1262 for Freeze Thaw Durability <1.5% and ASTM C140 for Compressive Strength > 3000psi and Absorption <7lb/ft2. NCMA Zone 3 Recommendations for de-icing salt exposure with Compressive Strength >5500 psi
LEED
LEED v4.1 Building Product Disclosure and Optimization – Sourcing of Raw Material - Responsible Sourcing of Raw Material Building Product Disclosure and Optimization – Material Ingredients - Material Ingredient Reporting
Quarry Smooth: Capabilities & Features
Gravity walls up to 24” (60cm)
Vertical features up to 4 ft. (1.2m)
Straight or curved walls
Strong, solid body design
5,500 PSI minimum
Small-format for hand-placed installation
