Pisa™

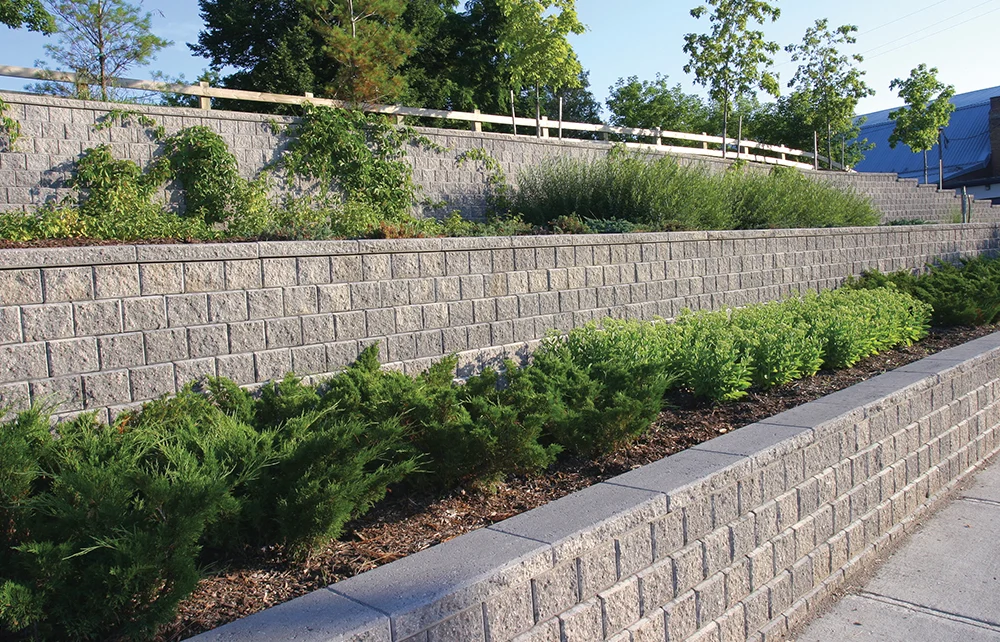

The built-in setback design of Pisa automatically forms the correct slope, ensuring a highly stable retaining wall. Utilizing the product’s tapered components, you can form curved walls and steps.
QUICK DOWNLOADS
Cut Sheet
BIM Files
Specifications
REQUEST PRODUCT INFORMATION SAVE TO
PROJECTS
Facebook
Twitter
LinkedIn
Email
1
4
UNITS & SIZES
UNITS & SIZES
COLORS
RESOURCES
STANDARDS & LEED
FILTER
WALL UNITS

Wall units function as modular components that are stacked to build the height and structure of a wall.

INDIVIDUAL UNITS
zoom-svg

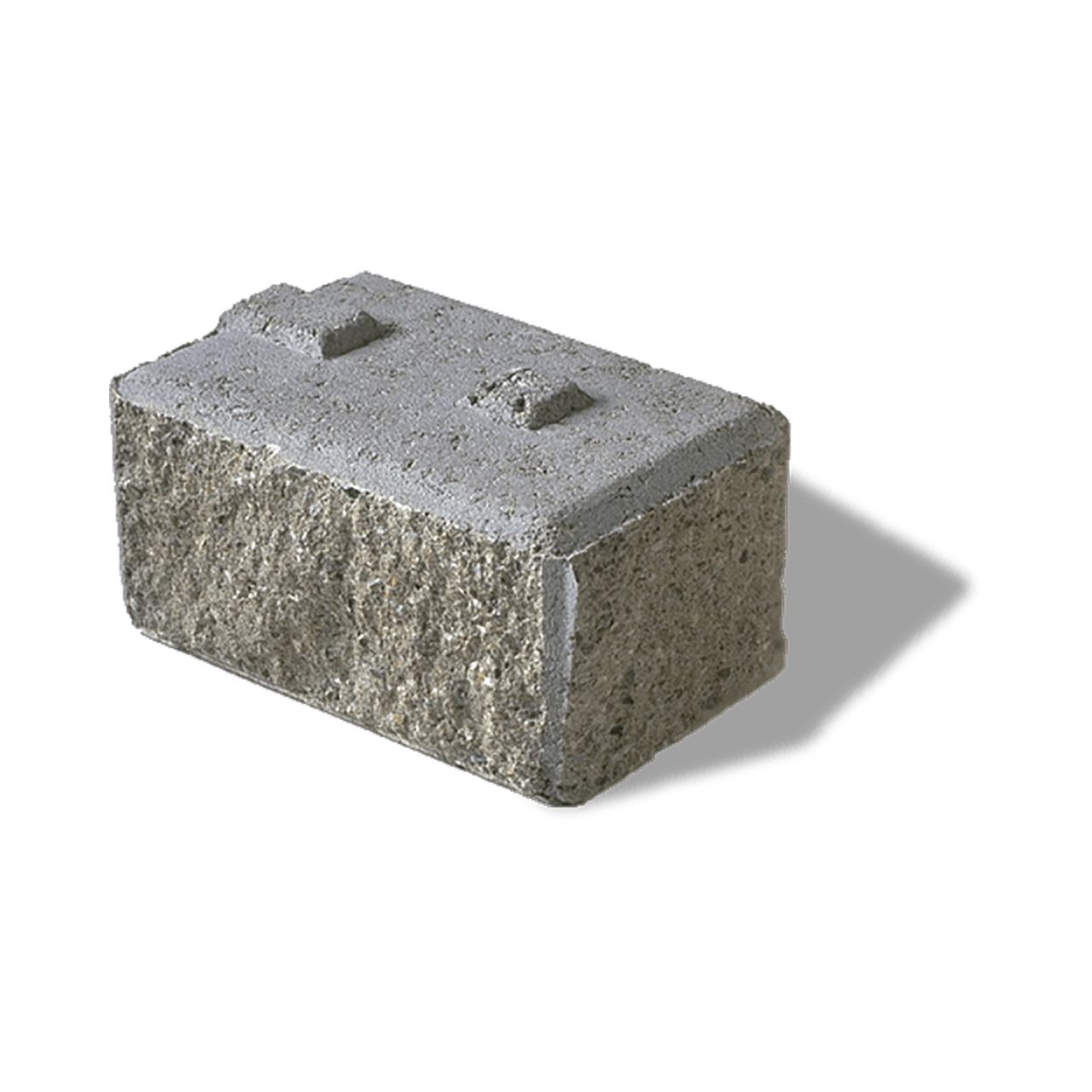

CORNER DOUBLE UNIT
7 7/8 x 11 7/8 x 5 7/8"
(200 x 300 x 150mm)

zoom-svg

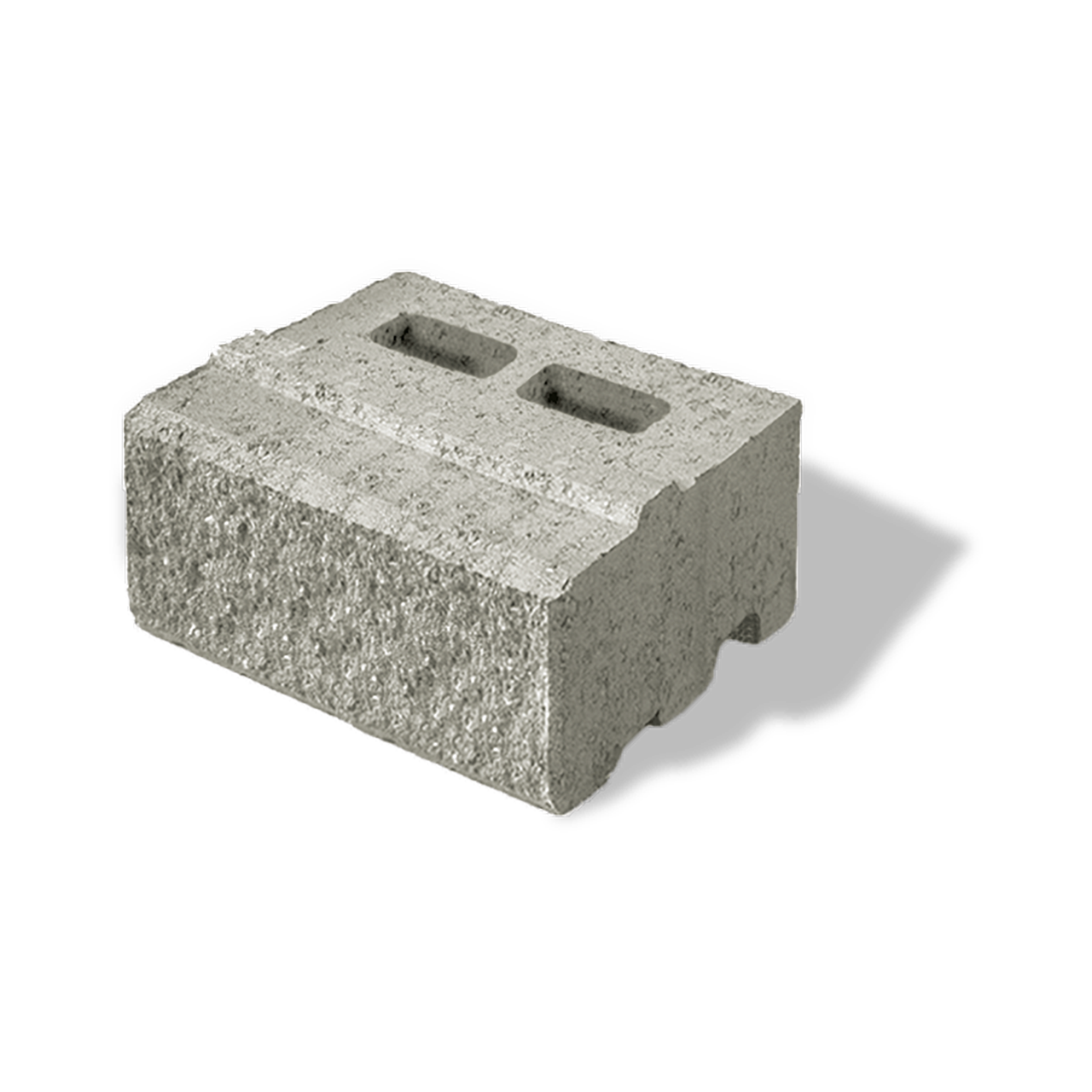

XL WALL
15 3/4 x 11 7/8 x 5 7/8"
(400 x 300 x 150mm)

COPING

Coping units are the finishing touch to walls, pool edges, fire pits, stairs, and other vertical features.

INDIVIDUAL UNITS
zoom-svg

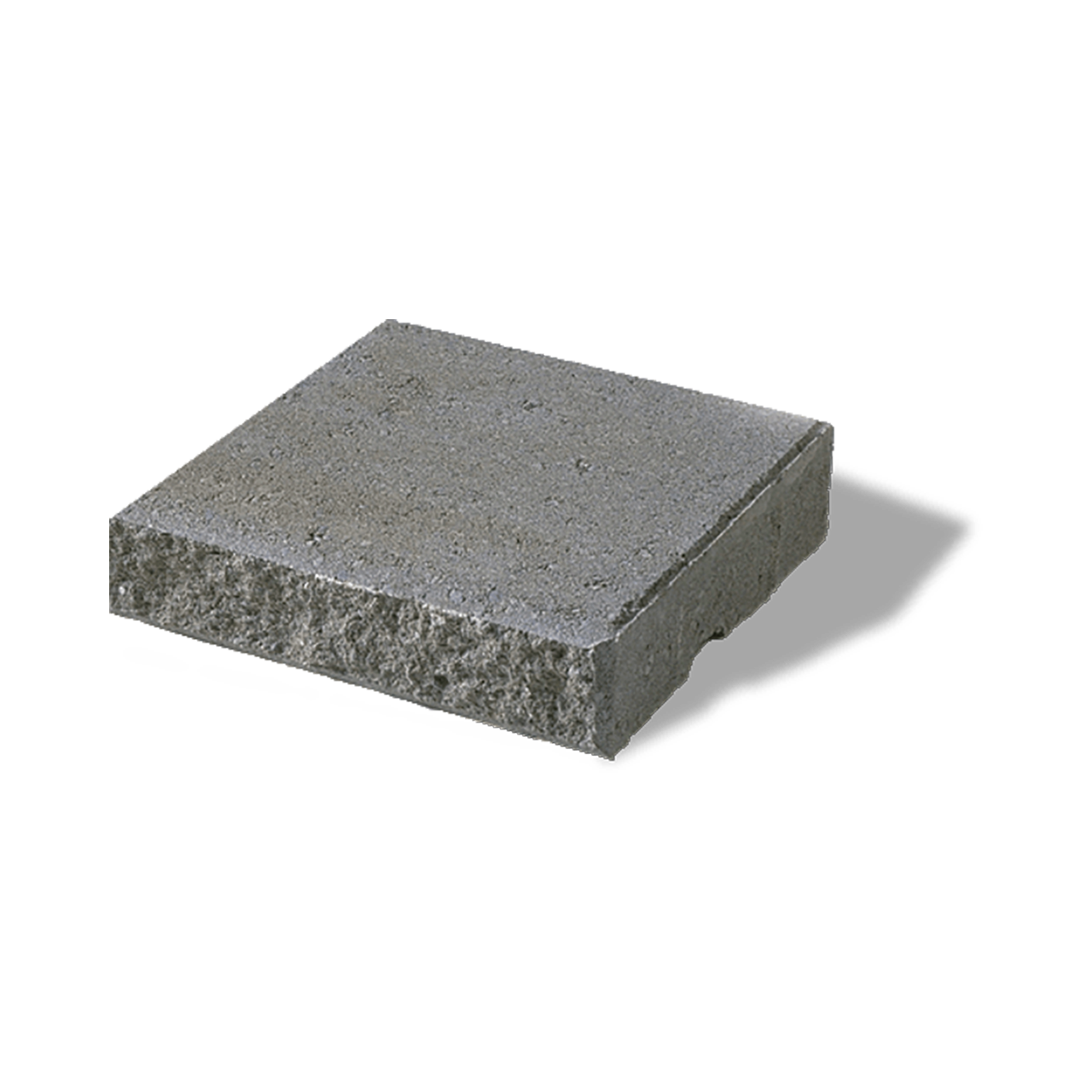

12" COPING
11 7/8 x 11 7/8 x 3"
(300 x 300 x 75mm)

zoom-svg

GRANITE

zoom-svg

NEVADA

zoom-svg

SIERRA

*Colors may vary by plant of manufacture. Final product selection should be made with full size samples and mock-ups. Contact your Unilock representative for details.

DESIGN FILES
Retaining Wall-Unilock-Pisa XL-BIMsmith Market
.PDF
Facebook
Twitter
LinkedIn
Email
Retaining Wall-Unilock-Pisa-BIMsmith Market
.PDF
Facebook
Twitter
LinkedIn
Email
CROSS SECTIONS
Pisa Grid Reinforced 3-1 Slope Load 10.2ft 3.12m
.PDF
Facebook
Twitter
LinkedIn
Email
Pisa Grid Reinforced 3-1 Slope Load 10.8ft 3.28m
.PDF
Facebook
Twitter
LinkedIn
Email
Pisa Grid Reinforced 3-1 Slope Load 11.3ft 3.43m
.PDF
Facebook
Twitter
LinkedIn
Email
Pisa Grid Reinforced 3-1 Slope Load 3.2ft .99m
.PDF
Facebook
Twitter
LinkedIn
Email
Pisa Grid Reinforced 3-1 Slope Load 3.7ft 1.14m
.PDF
Facebook
Twitter
LinkedIn
Email
Pisa Grid Reinforced 3-1 Slope Load 4.3ft 1.3m
.PDF
Facebook
Twitter
LinkedIn
Email
Pisa Grid Reinforced 3-1 Slope Load 4.8ft 1.45m
.PDF
Facebook
Twitter
LinkedIn
Email
Pisa Grid Reinforced 3-1 Slope Load 5.2ft 1.6m
.PDF
Facebook
Twitter
LinkedIn
Email
Pisa Grid Reinforced 3-1 Slope Load 5.7ft 1.75m
.PDF
Facebook
Twitter
LinkedIn
Email
Pisa Grid Reinforced 3-1 Slope Load 6.2m 1.9m
.PDF
Facebook
Twitter
LinkedIn
Email
LOAD MORE CROSS SECTIONS & DETAILS
SUSTAINABILITY DOCUMENTS
101.1 EPD Unilock DRYCAST
.PDF
Facebook
Twitter
LinkedIn
Email
SDS
Unilock Masonry Unit SDS US 022516 FINAL.pdf
.PDF
Facebook
Twitter
LinkedIn
Email
SPECIFICATIONS
32-32-23-SRW-Pisa-Siena-Sonoma-DuraHold.pdf
.PDF .DOCX log in
Facebook
Twitter
LinkedIn
Email
ASTM STANDARDS
Unilock meets and exceeds: ASTM C1372 - Standard Specifications for Dry-Cast Segmental Retaining Wall Units using test methods conforming to ASTM C1262 for Freeze Thaw Durability <1.5% and ASTM C140 for Compressive Strength > 3000psi and Absorption <7lb/ft2. NCMA Zone 3 Recommendations for de-icing salt exposure with Compressive Strength >5500 psi. Sheer strength test data available per ASTM D6916 and ASTM 6638 with geosyntheic reinforcement upon request.
LEED
LEED v4.1 Building Product Disclosure and Optimization – Sourcing of Raw Material - Responsible Sourcing of Raw Material Building Product Disclosure and Optimization – Material Ingredients - Material Ingredient Reporting

Pisa Wall: Capabilities & Features

Gravity walls up to 3' (1m)

Geogrid reinforced walls up to 23' (7 m).

Vertical or 7.12° battered walls

Curved or straight walls

Interlocking tongue and groove

Strong, solid body design

5,500 PSI minimum

Small-format for hand-placed installation
