Olde Quarry™

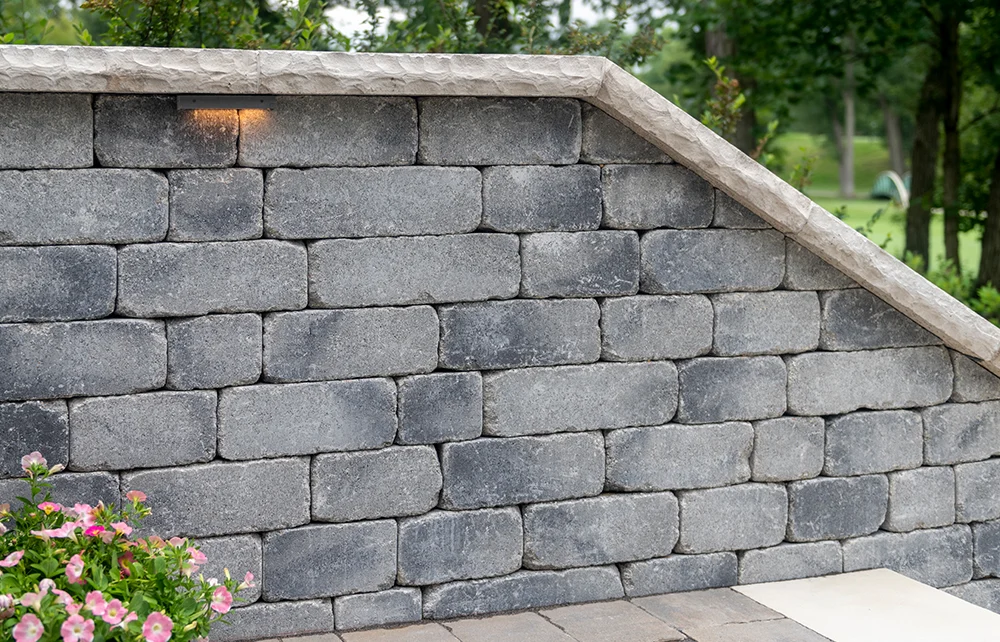

Whether your plans call for constructing a curved wall, seat wall, planters, steps, edging or even an outdoor kitchen, the look will be commanding and impressive with the antiqued finish of Olde Quarry.
QUICK DOWNLOADS
Cut Sheet
BIM Files
Specifications
REQUEST PRODUCT INFORMATION SAVE TO
PROJECTS
Facebook
Twitter
LinkedIn
Email
1
4
UNITS & SIZES
UNITS & SIZES
COLORS
RESOURCES
STANDARDS & LEED
FILTER
WALL UNITS

Wall units function as modular components that are stacked to build the height and structure of a wall.

RANDOM BUNDLE
zoom-svg

15" UNIT
15" x 4 5/8" x 9"
(380mm x 115mm x 230mm)

zoom-svg

12" UNIT
12" x 4 5/8" x 9"
(305mm x 115mm x 230mm)

zoom-svg

9" UNIT
9" x 4 5/8" x 9"
(230mm x 115mm x 230mm)

COPING

Coping units are the finishing touch to walls, pool edges, fire pits, stairs, and other vertical features.

INDIVIDUAL UNITS
zoom-svg

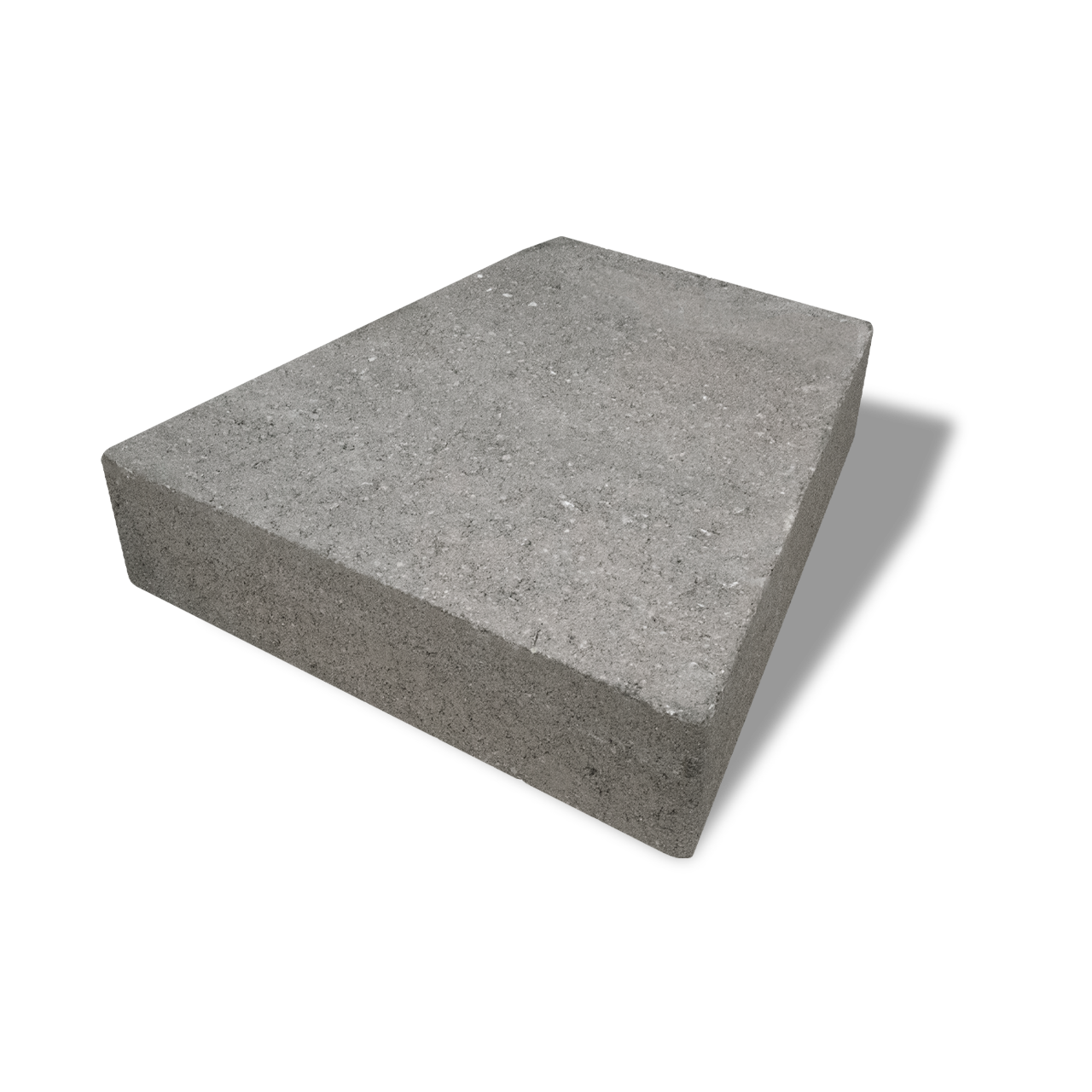

COPING TAPERED
12 x 12 x 3"
(305 x 305 x 75mm)

zoom-svg

GRANITE

zoom-svg

RIVER

zoom-svg

SANDSTONE

zoom-svg

SIERRA

*Colors may vary by plant of manufacture. Final product selection should be made with full size samples and mock-ups. Contact your Unilock representative for details.

DESIGN FILES
Retaining Wall-Unilock-Olde Quarry-BIMsmith Market
.PDF
Facebook
Twitter
LinkedIn
Email
CROSS SECTIONS
Olde Quarry Grid Reinforced 3-1 Slope Load 2.3ft .69m
.PDF
Facebook
Twitter
LinkedIn
Email
Olde Quarry Grid Reinforced 3-1 Slope Load 3.0ft .91m
.PDF
Facebook
Twitter
LinkedIn
Email
Olde Quarry Grid Reinforced 3-1 Slope Load 4.5ft 1.37m
.PDF
Facebook
Twitter
LinkedIn
Email
Olde Quarry Grid Reinforced 3-1 Slope Load 5.3ft 1.6m
.PDF
Facebook
Twitter
LinkedIn
Email
Olde Quarry Grid Reinforced 3-1 Slope Load 6.0ft 1.83m
.PDF
Facebook
Twitter
LinkedIn
Email
Olde Quarry Grid Reinforced Horizontal Load 2.3ft .69m
.PDF
Facebook
Twitter
LinkedIn
Email
Olde Quarry Grid Reinforced Horizontal Load 3.0ft .91m
.PDF
Facebook
Twitter
LinkedIn
Email
Olde Quarry Grid Reinforced Horizontal Load 4.5ft 1.37m
.PDF
Facebook
Twitter
LinkedIn
Email
Olde Quarry Grid Reinforced Horizontal Load 5.3ft 1.6m
.PDF
Facebook
Twitter
LinkedIn
Email
Olde Quarry Grid Reinforced Horizontal Load 6.0ft 1.83m
.PDF
Facebook
Twitter
LinkedIn
Email
LOAD MORE CROSS SECTIONS & DETAILS
SUSTAINABILITY DOCUMENTS
Unilock Classic Architectural Pavers Wall Blocks Vertices HPDv2.3
.PDF
Facebook
Twitter
LinkedIn
Email
101.1 EPD Unilock DRYCAST
.PDF
Facebook
Twitter
LinkedIn
Email
SDS
Unilock Masonry Unit SDS US 022516 FINAL.pdf
.PDF
Facebook
Twitter
LinkedIn
Email
SPECIFICATIONS
32-32-23-SRW-Brussels-Dimensional-Old-Quary-Estate-Wall-Lineo.pdf
.PDF .DOCX log in
Facebook
Twitter
LinkedIn
Email
ASTM STANDARDS
Unilock meets and exceeds: ASTM C1372 - Standard Specifications for Dry-Cast Segmental Retaining Wall Units using test methods conforming to ASTM C1262 for Freeze Thaw Durability <1.5% and ASTM C140 for Compressive Strength > 3000psi and Absorption <7lb/ft2. NCMA Zone 3 Recommendations for de-icing salt exposure with Compressive Strength >5500 psi
LEED
LEED v4.1 Building Product Disclosure and Optimization – Sourcing of Raw Material - Responsible Sourcing of Raw Material Building Product Disclosure and Optimization – Material Ingredients - Material Ingredient Reporting

Olde Quarry: Capabilities & Features

Gravity walls up to 24” (60cm)

Vertical features up to 4 ft. (1.2m)

Straight or curved walls

Strong, solid body design

5,500 PSI minimum

Small-format for hand-placed installation
