Estate Wall™
Wall units function as modular components that are stacked to build the height and structure of a wall.

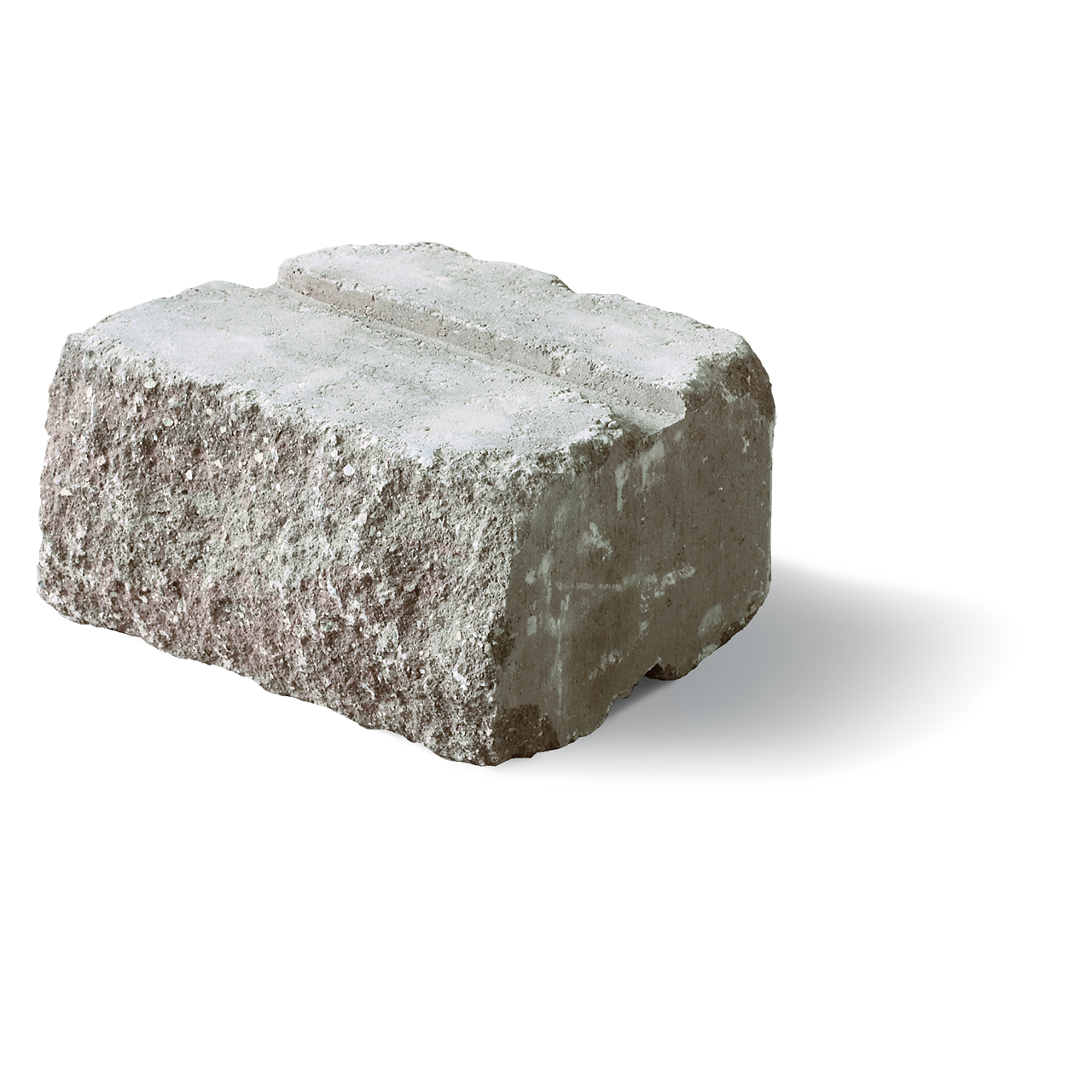

LARGE 6"
15" x 5 7/8" x 9"
(380mm x 150mm x 230mm)

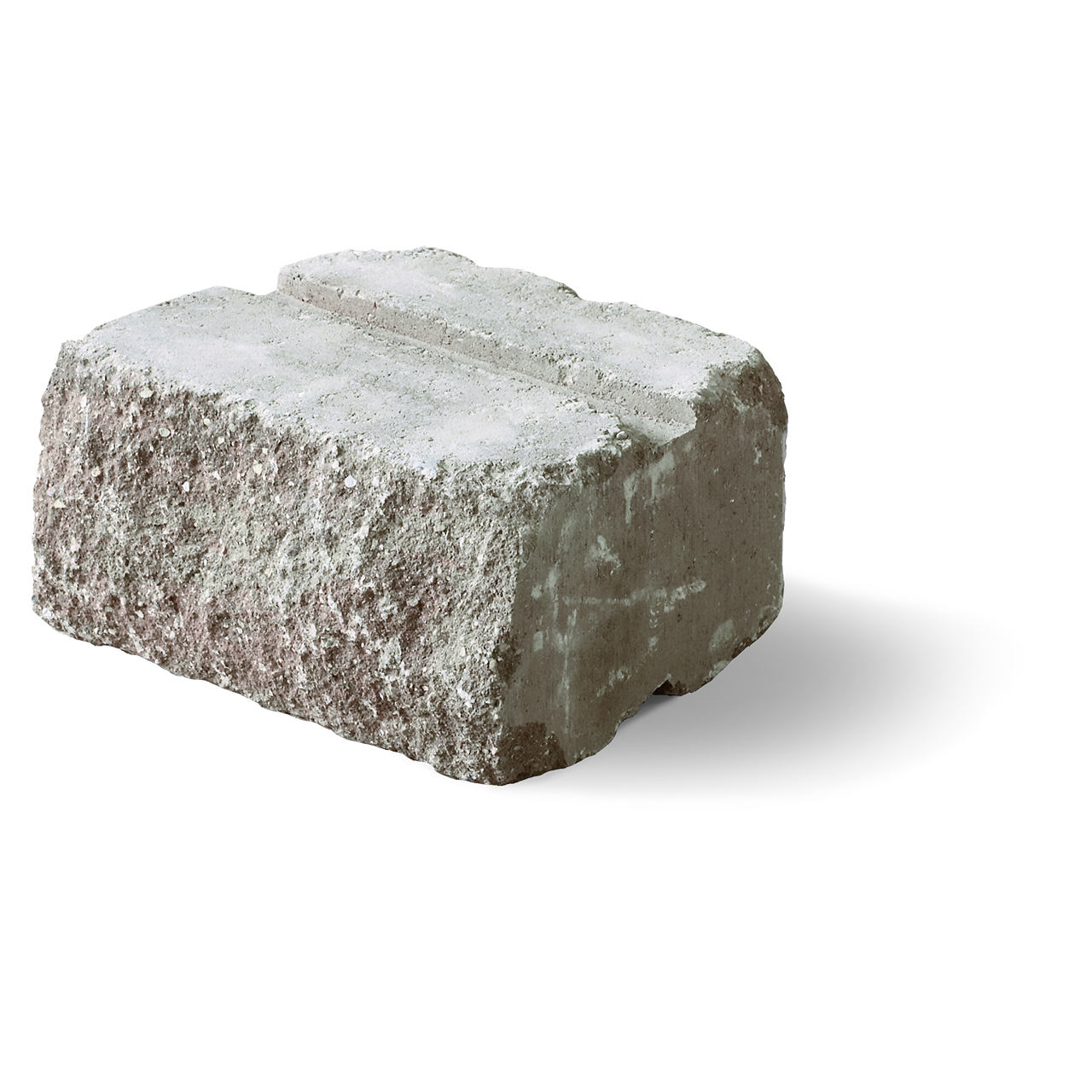

MEDIUM 6"
12 5/8" x 5 7/8" x 9"
(320mm x 150mm x 230mm)

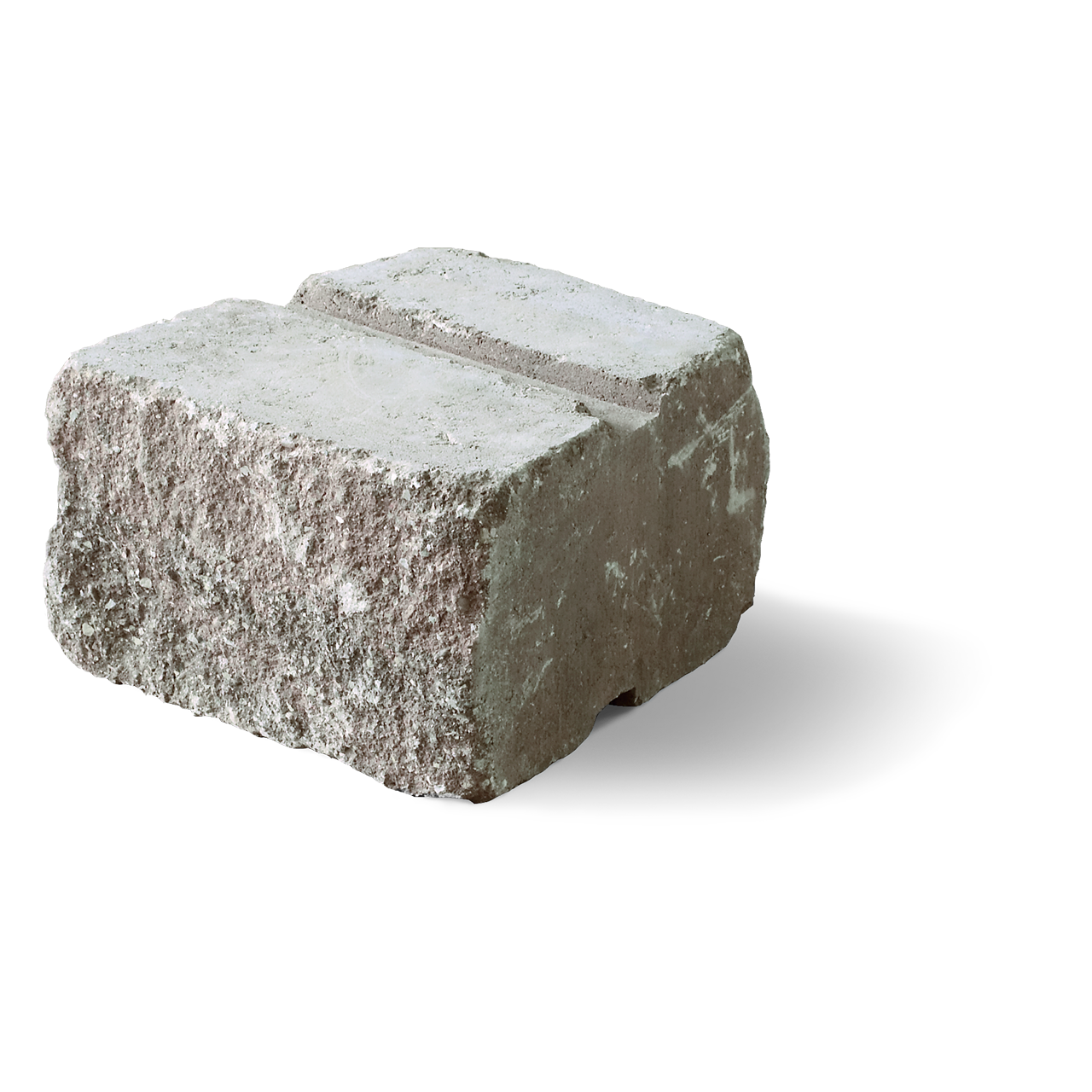

SMALL 6"
9 7/8" x 5 7/8" x 9"
(250mm x 150mm x 230mm)

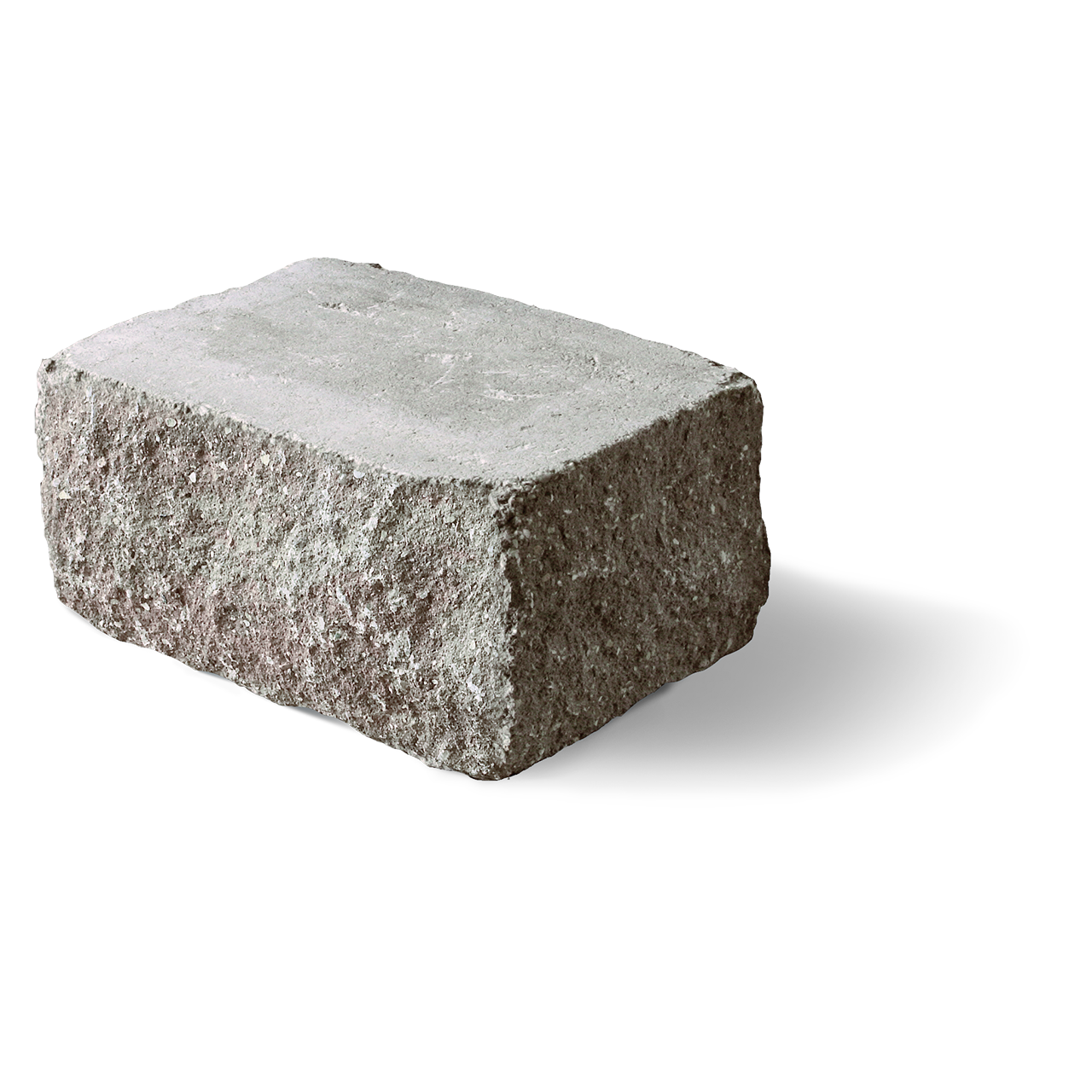

CORNER 6"
12 5/8 x 9 x 5 7/8"
(320 x 230 x 150mm)
Coping units are the finishing touch to walls, pool edges, fire pits, stairs, and other vertical features.

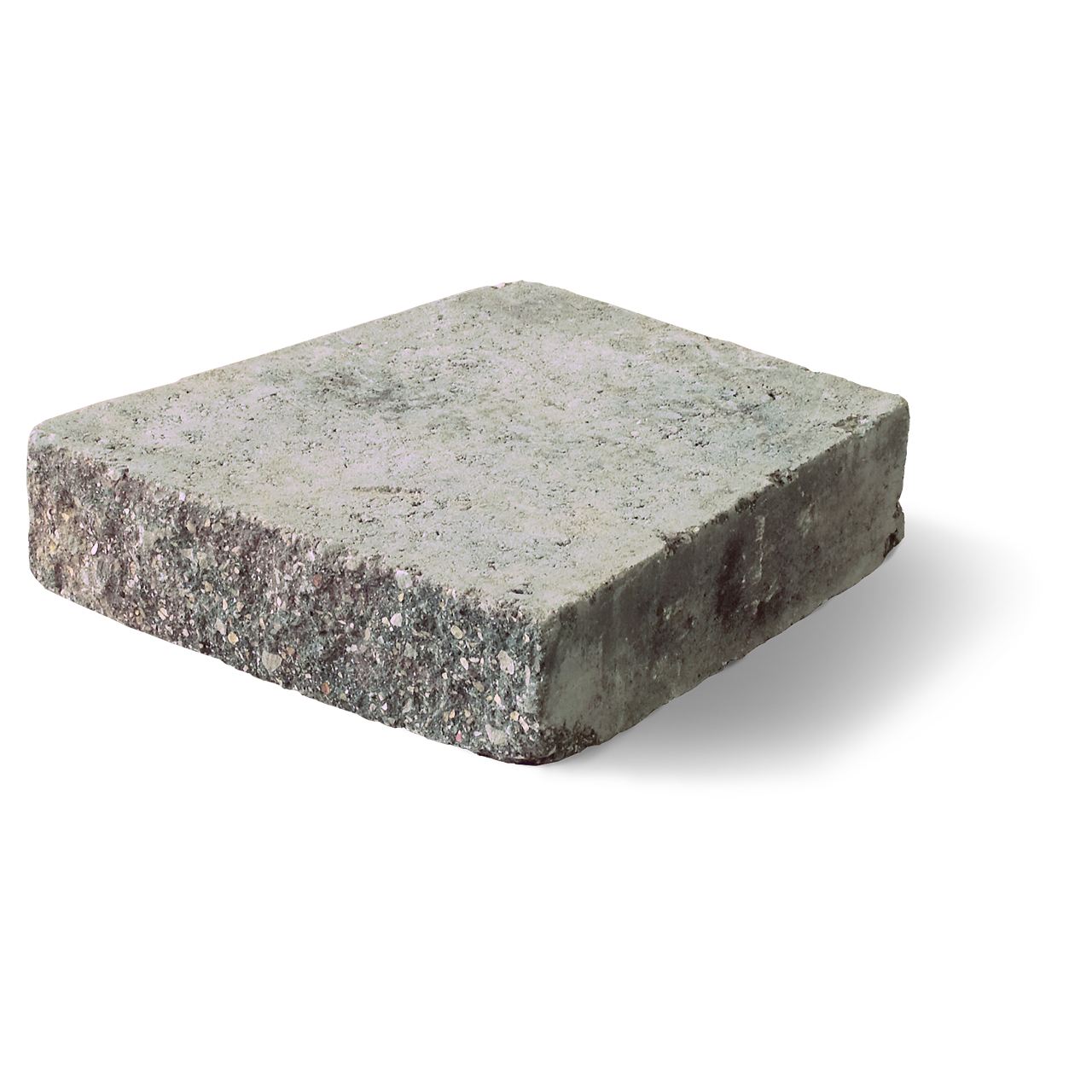

COPING TAPERED
12 5/8 x 11 7/8 x 3"
(320 x 300 x 75mm)
GRANITE
RIVER
SANDSTONE
SIERRA
*Colors may vary by plant of manufacture. Final product selection should be made with full size samples and mock-ups. Contact your Unilock representative for details.
Estate Wall: Capabilities and Features
Gravity walls up to 39” (1m)
Geogrid reinforced walls up to 10’ (3m)
Vertical or 4° battered walls
Straight or curved walls
Strong, solid body design
5,500 PSI minimum
Small-format for hand-placed installation
