Brussels Dimensional Stone®

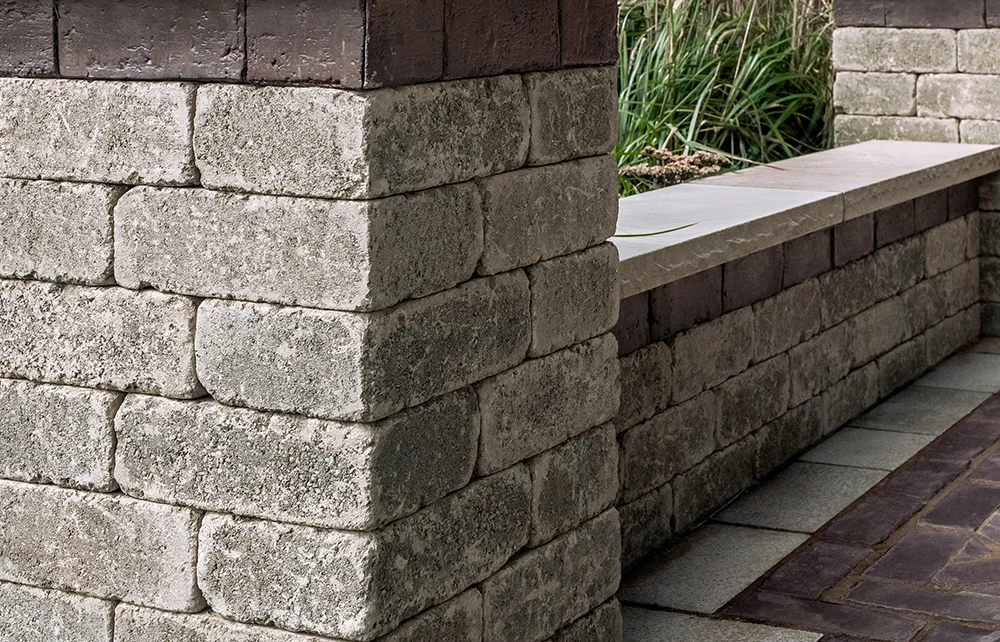

Brussels Dimensional has multi-sized tapered components, allowing you to easily construct curved walls, seatwalls, kitchen islands, fireplaces, steps and much more!
QUICK DOWNLOADS
Cut Sheet
BIM Files
Specifications
UNITS & SIZES
UNITS & SIZES
COLORS
RESOURCES
STANDARDS & LEED
WALL UNITS
Wall units function as modular components that are stacked to build the height and structure of a wall.
INDIVIDUAL UNITS

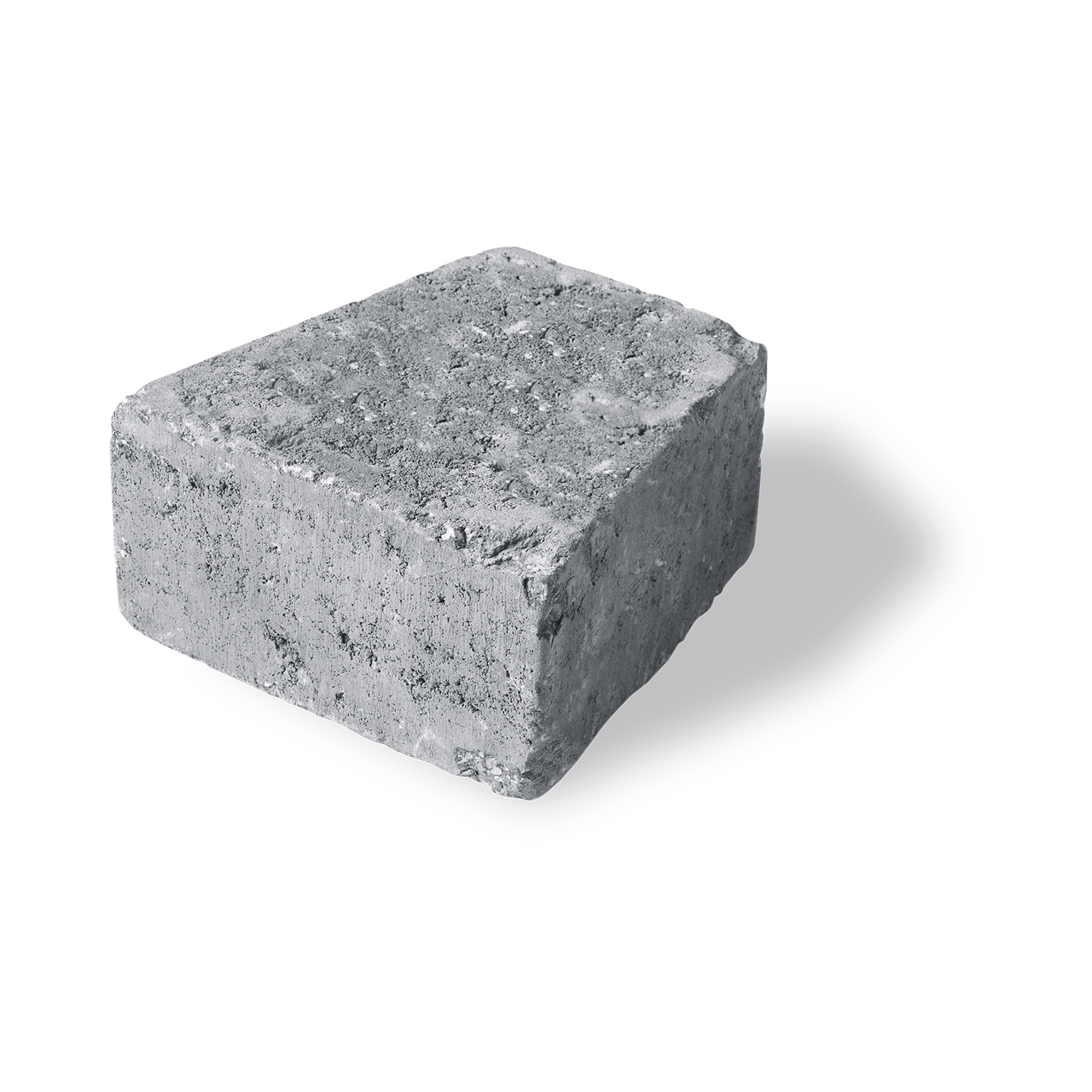

SMALL TAPERED
9 x 7 7/8 x 3 7/8"
(229 x 200 x 100mm)

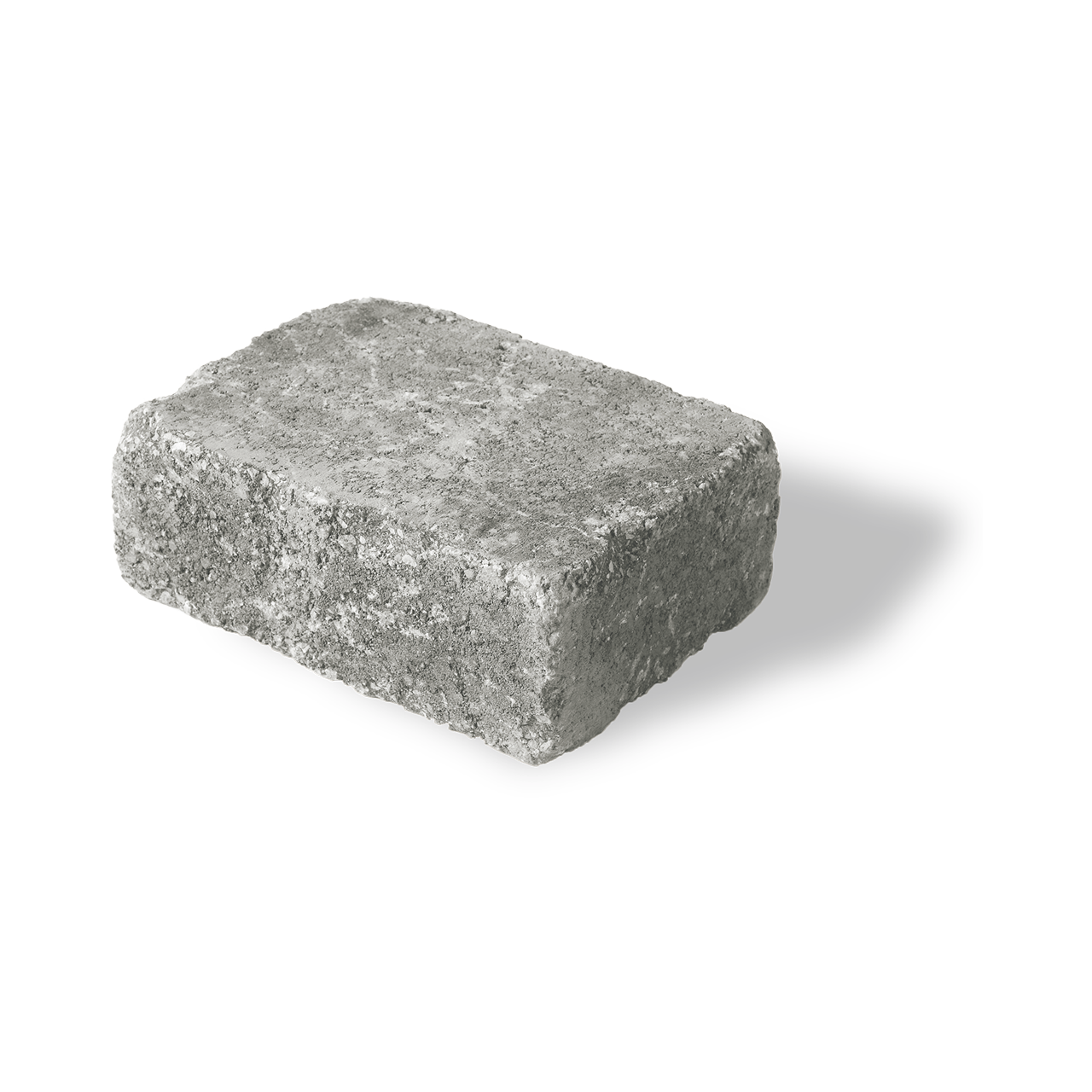

STANDARD
11 7/8 x 7 7/8 x 3 7/8"
(300 x 200 x 100mm)
GRANITE
LIMESTONE
SANDSTONE
SIERRA
*Colors may vary by plant of manufacture. Final product selection should be made with full size samples and mock-ups. Contact your Unilock representative for details.
DESIGN FILES
Retaining Wall-Unilock-Brussels Dimensional Stone-BIMsmith Market
SUSTAINABILITY DOCUMENTS
Unilock Classic Architectural Pavers Wall Blocks Vertices HPDv2.3
SDS
SPECIFICATIONS
ASTM STANDARDS
Unilock meets and exceeds: ASTM C1372 - Standard Specifications for Dry-Cast Segmental Retaining Wall Units using test methods conforming to ASTM C1262 for Freeze Thaw Durability <1.5% and ASTM C140 for Compressive Strength > 3000psi and Absorption <7lb/ft2. NCMA Zone 3 Recommendations for de-icing salt exposure with Compressive Strength >5500 psi
LEED
LEED v4.1 Building Product Disclosure and Optimization – Sourcing of Raw Material - Responsible Sourcing of Raw Material Building Product Disclosure and Optimization – Material Ingredients - Material Ingredient Reporting
Brussels Dimensional Stone: Capabilities & Features
Gravity walls up to 24” (60cm)
Vertical features up to 4 ft. (1.2m)
Straight or curved walls
Strong, solid body design
5,500 PSI minimum
Small-format for hand-placed installation
